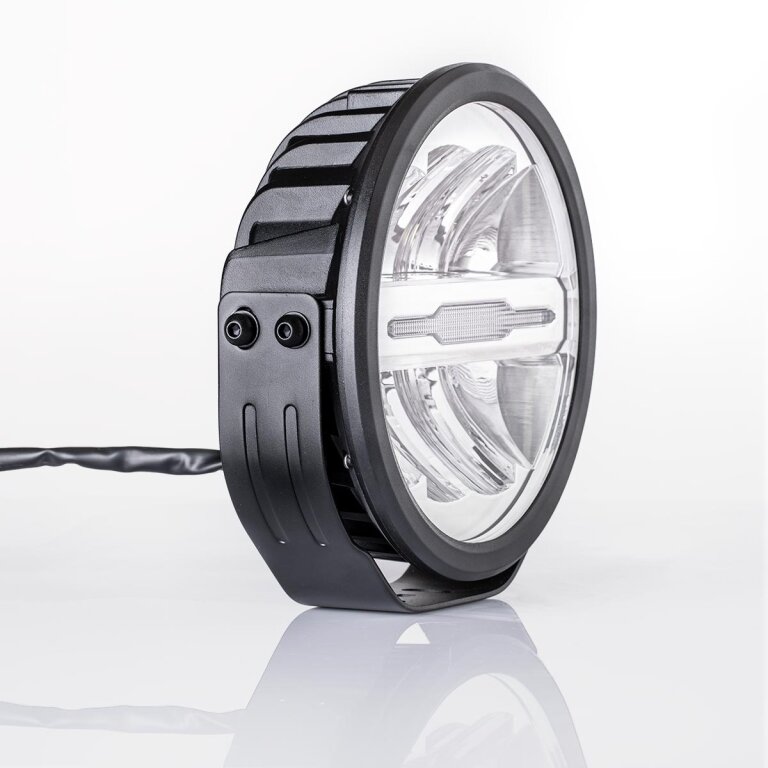

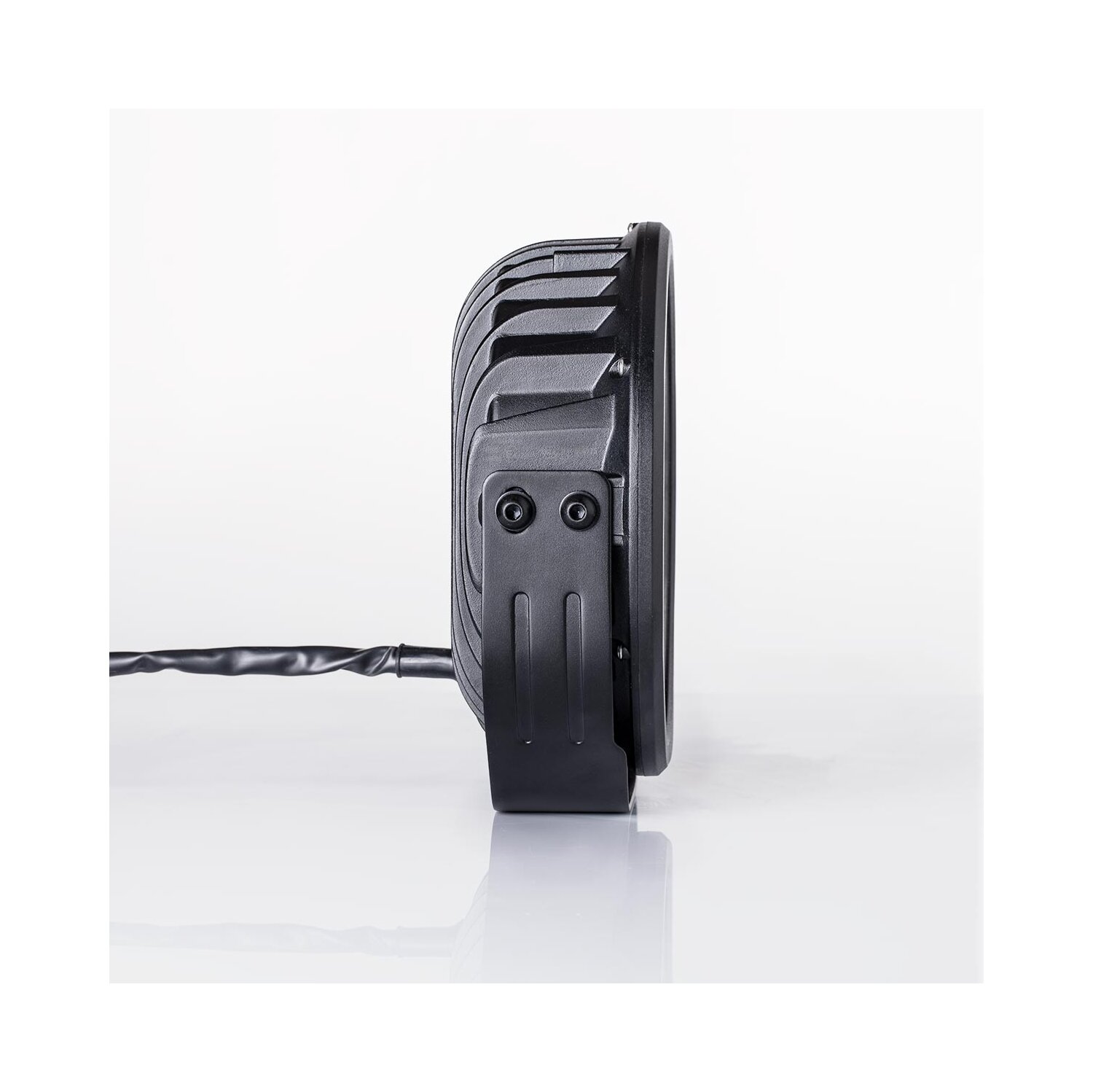

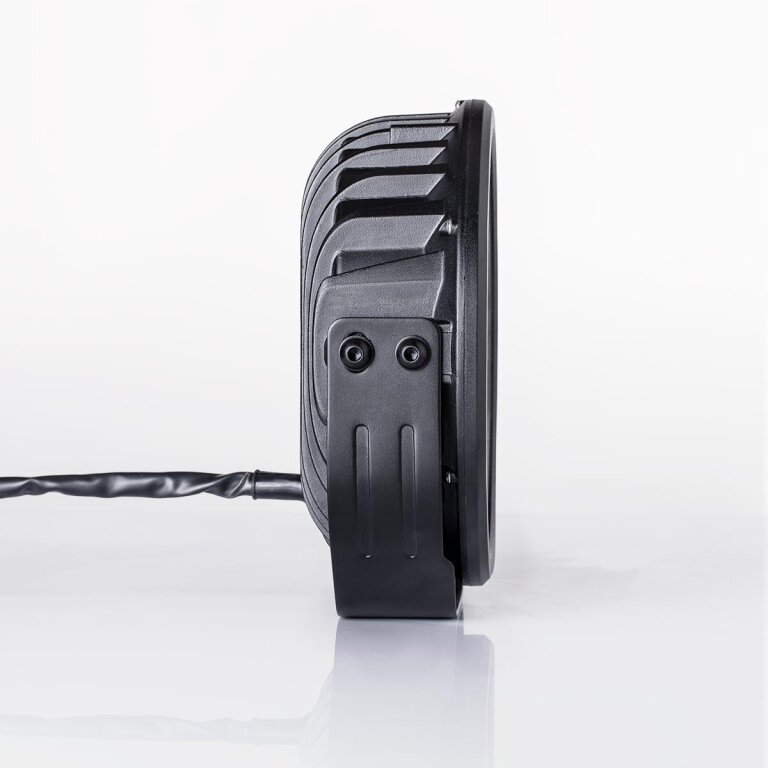

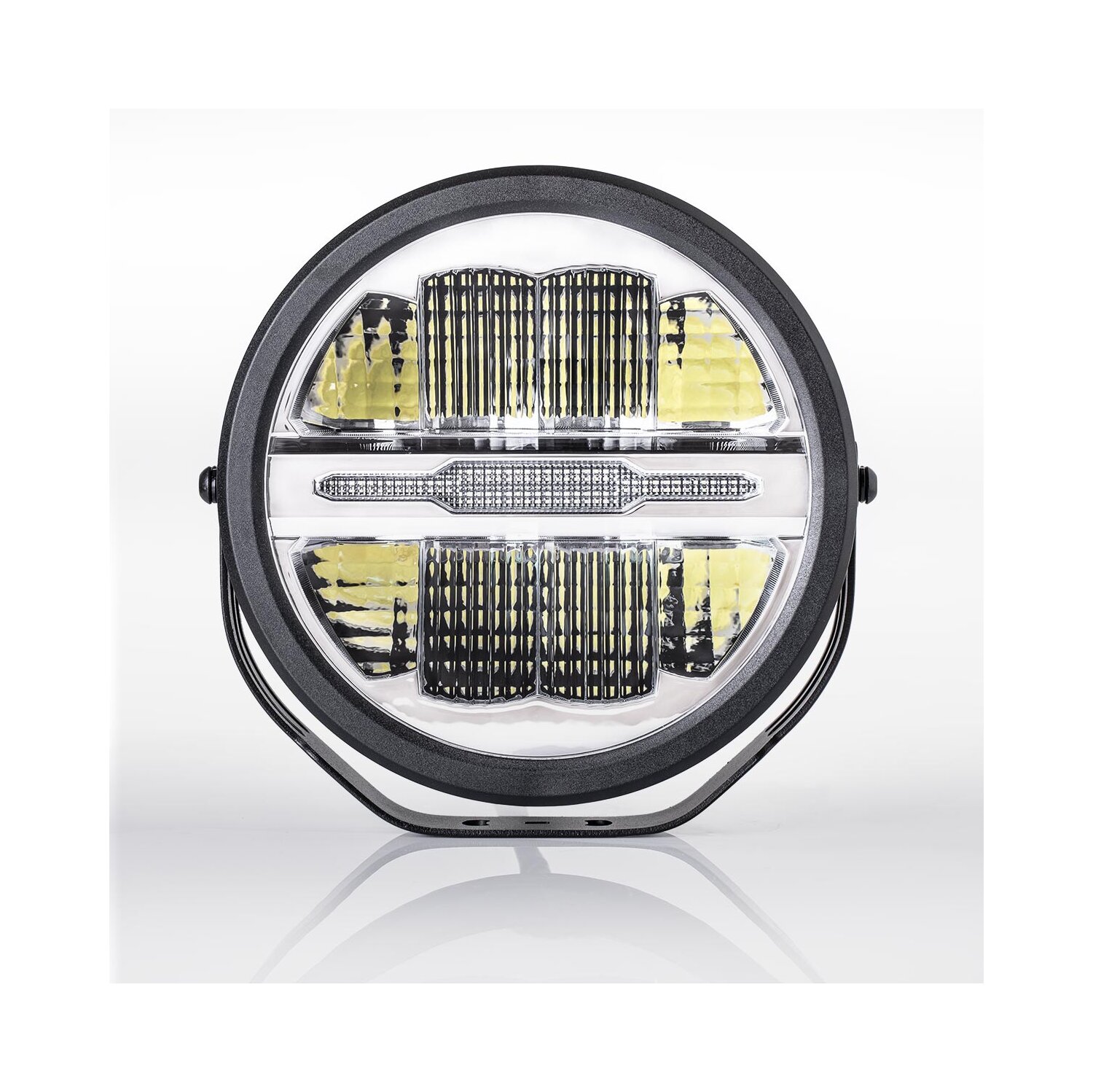

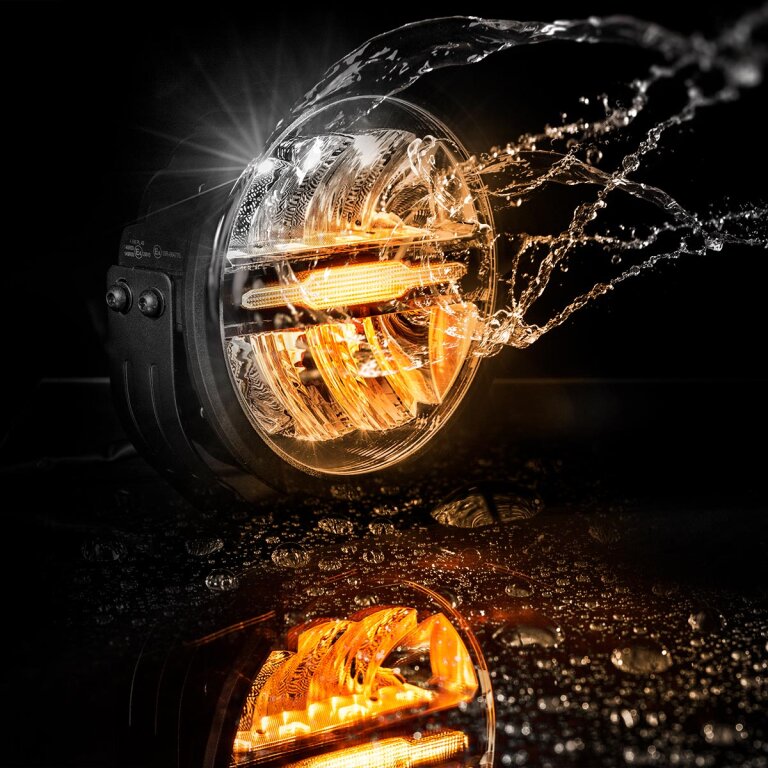

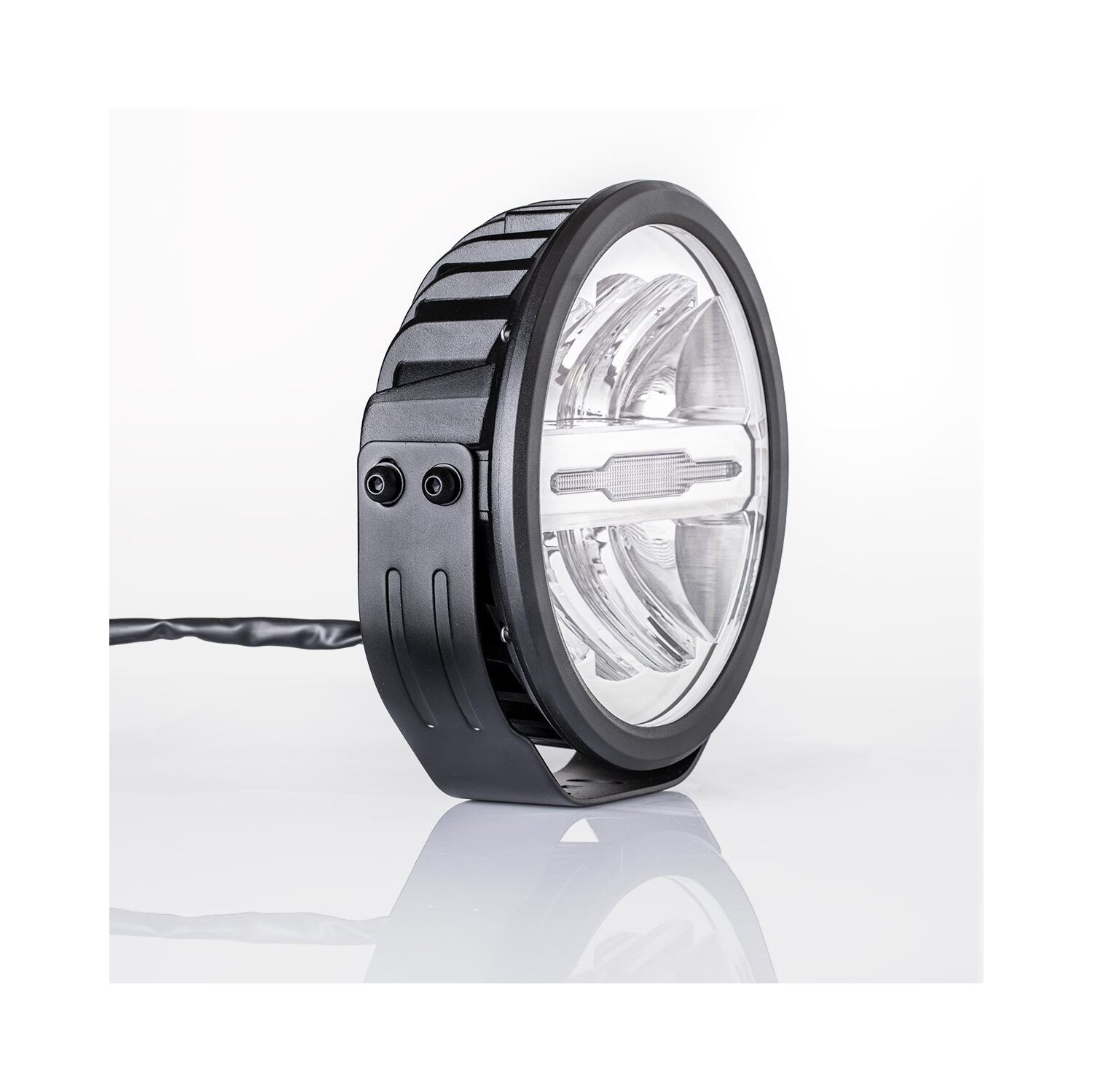

9" LED UltraLux Driving Light RedTyphoon

Item number: LTPZ-DL013-BL

EAN: 4260482529932

112R: Driving Light A HR PL
10R: EMC
7R: Position Light (white)
Offroad: Position Light (orange)

Reference Number: 30

Category: Zusatzscheinwerfer Wohnmobil


189,99 €

including 19% VAT. , plus shipping

Available now!

Shipping time: 1 - 2 workdays

piece


9" Driving Light UltraLux RED TYPHOON


Technical Information:

Beam Angle:
Horizontal: ±10° | Vertical: ±3.5°

Voltage Range: 9-36V

Amp @13,2V or 12V:
For high beam Full Power : 5.21A @12V
 R112 ref 30 Power: 2.95A @12V

Power @13,2V or 12V
For high beam Full Power: 62.16W |
R112 Ref 30 Power: 35.40W

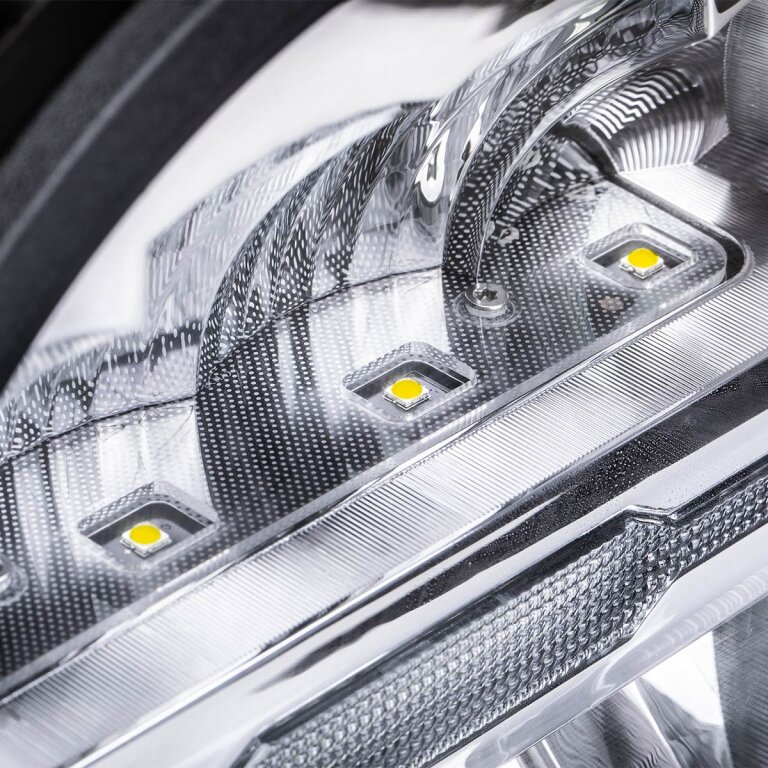

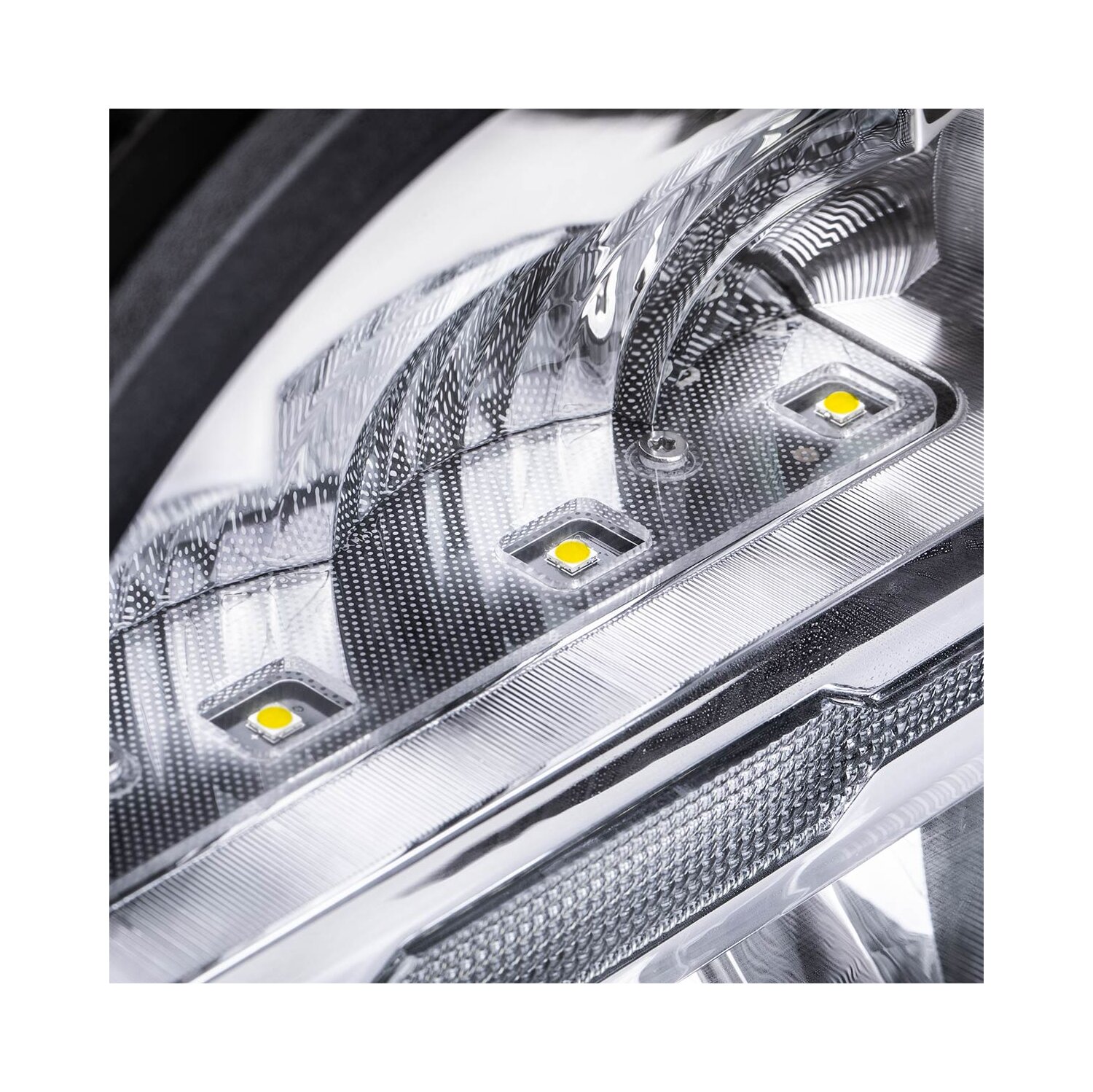

Led quantity and type (high beam): Osram: P9*8pcs

Theoretical  / measured Lumens @13,2V or 12V:
Full Power: 2710LM
R112 Ref 30 Power: 2170LM

Color temperature: 5500-6500K

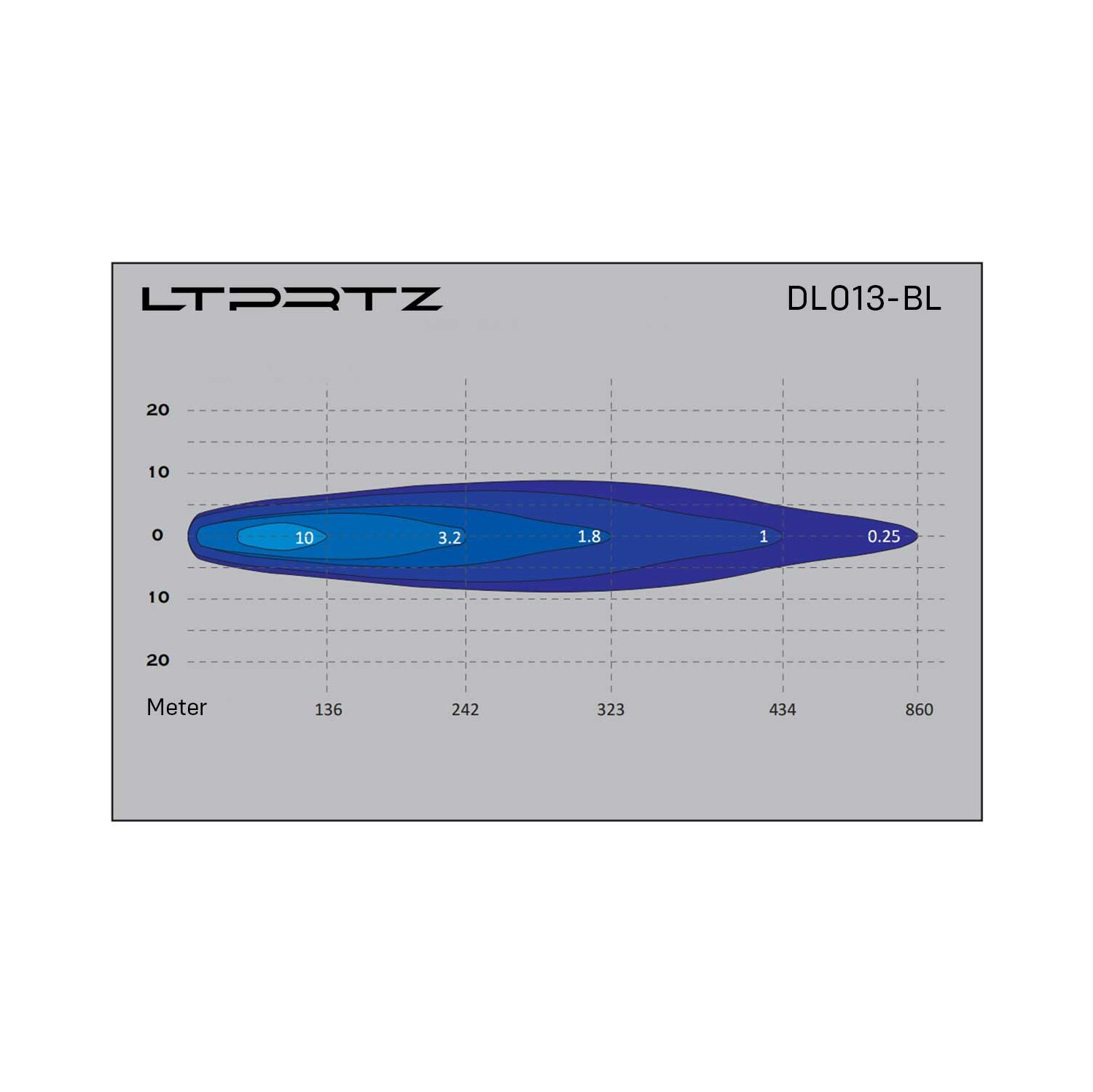

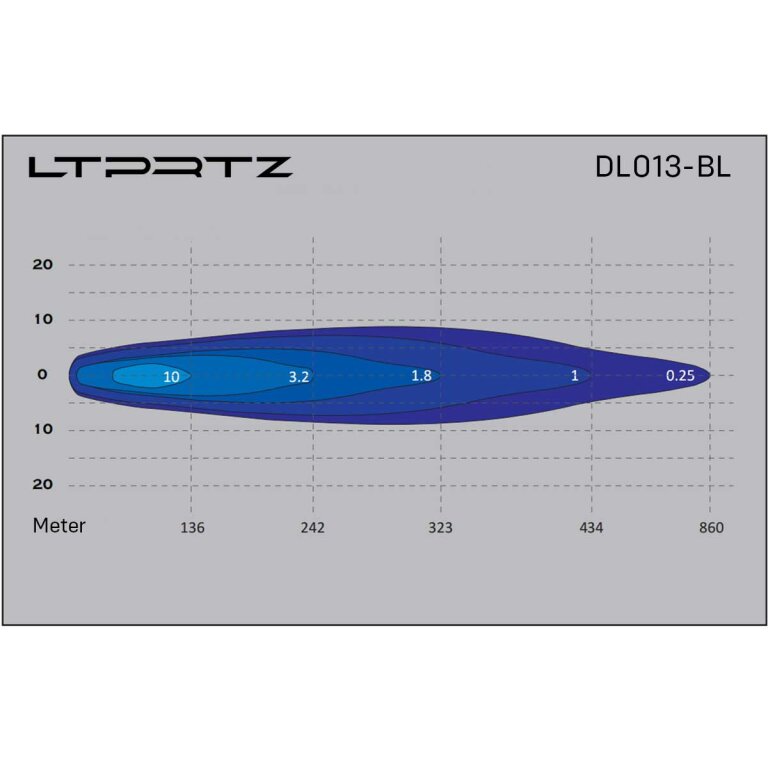

1 lux distance (real) @13,2V or 12V:
Full Power: 434m  |
R112 Ref 30 Power: 374m

Candelas @13,2V or 12V:
Full Power: 188000 |
R112 Ref 30 Power: 140000

Cable length: 40cm Cable

Connector type: DT

Measures: 229*229*89mm

Approvals: R112 (ref 30), R10, R7


Shipping weight: 3,30 Kg
Product weight: 2,65 Kg
Dimensions ( length × width × height ): 22,90 × 8,90 × 22,90 cm
