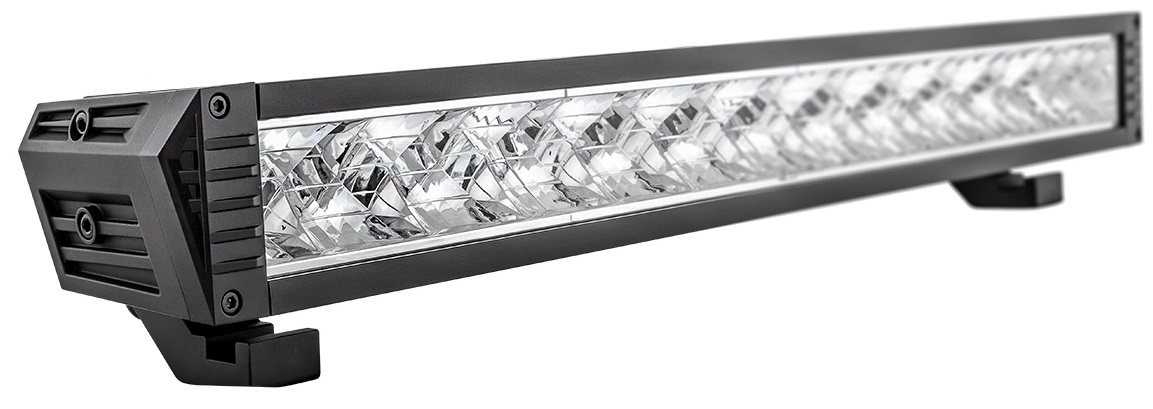

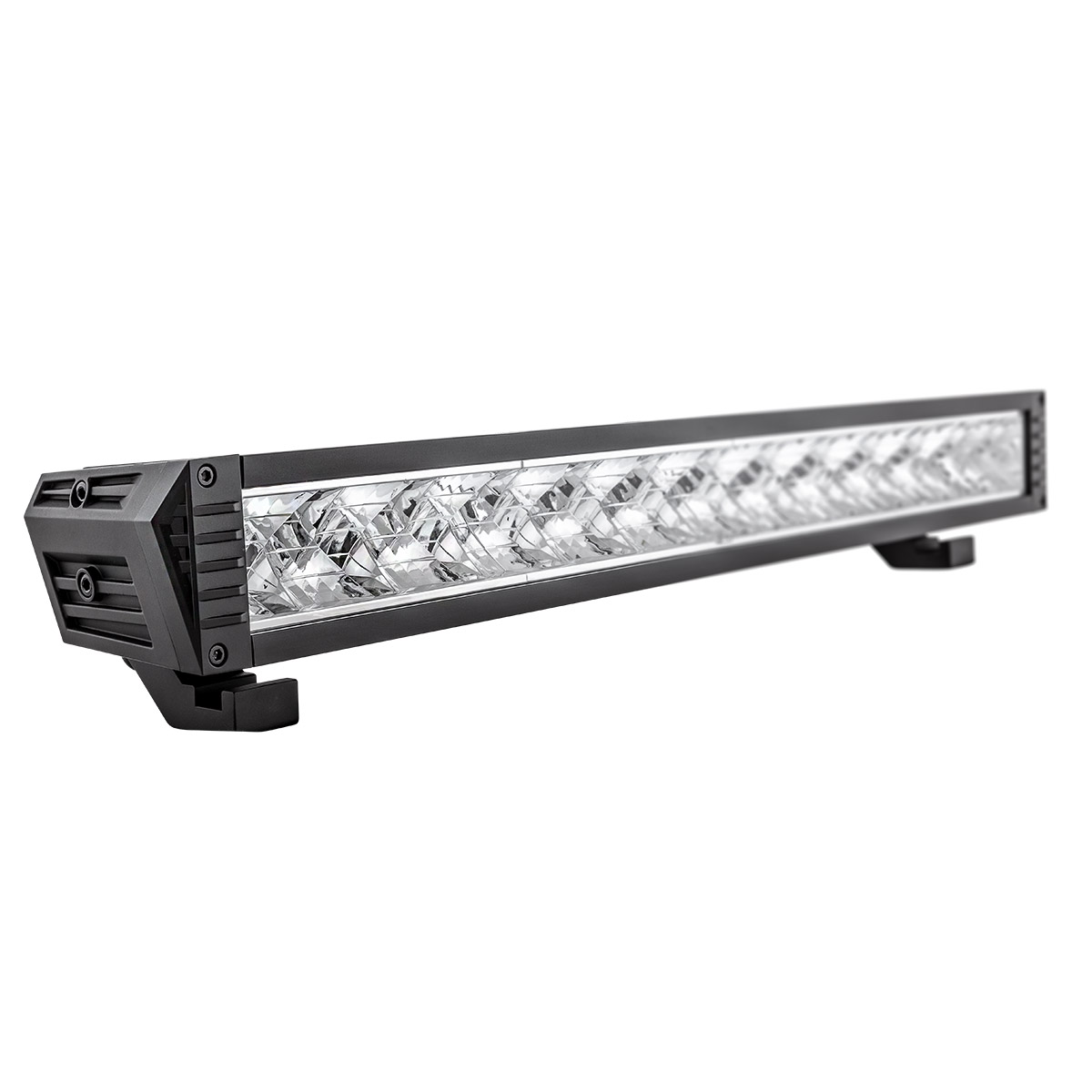

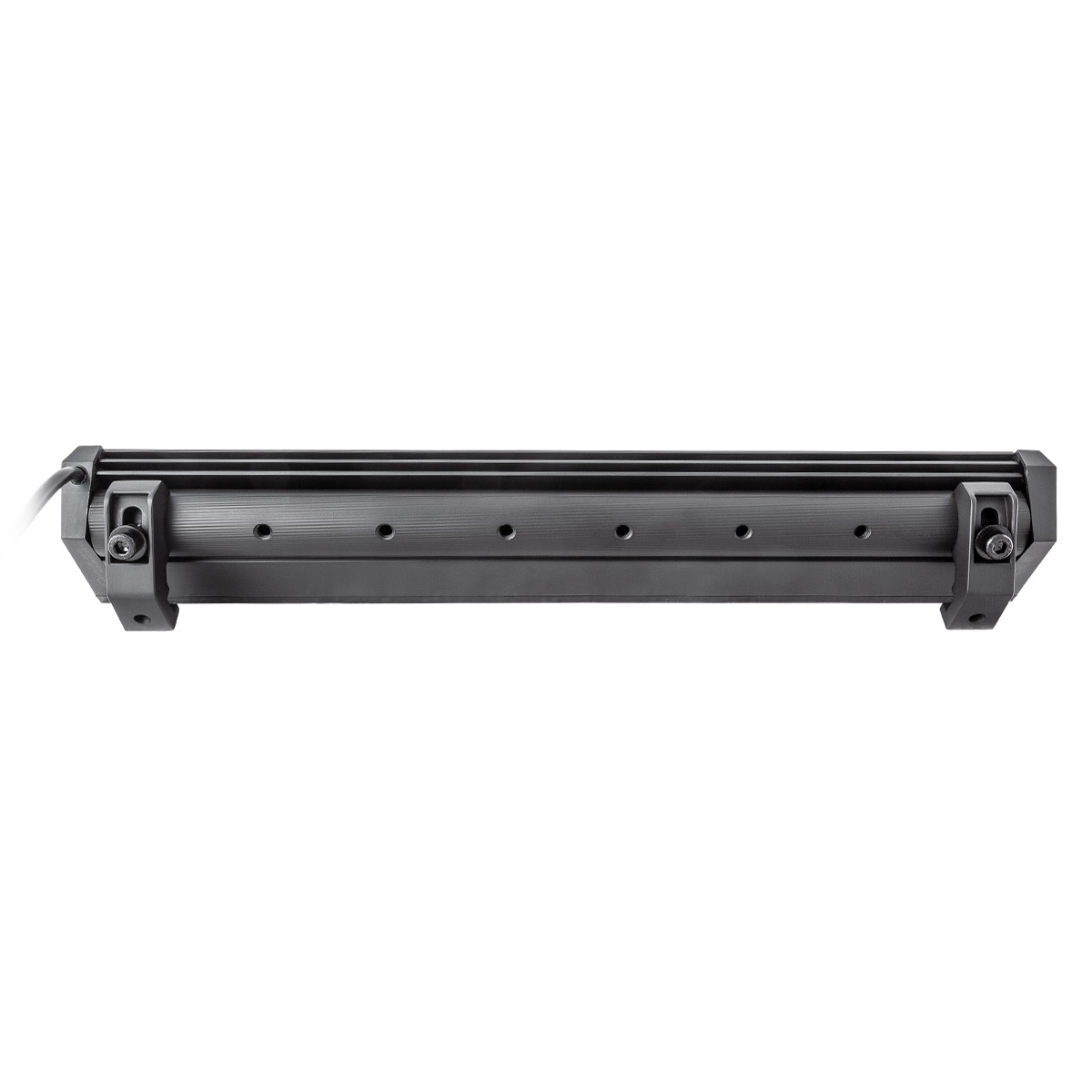

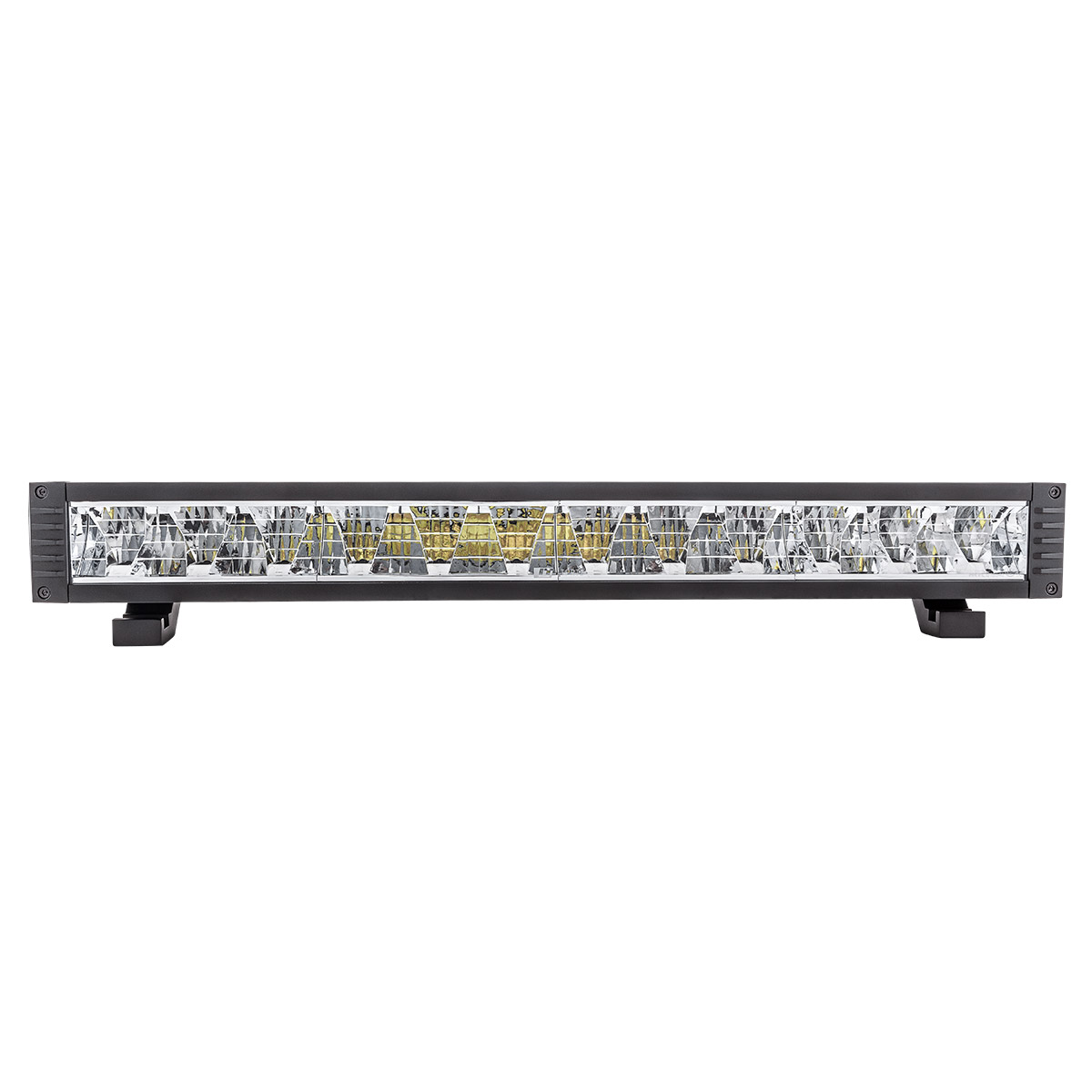

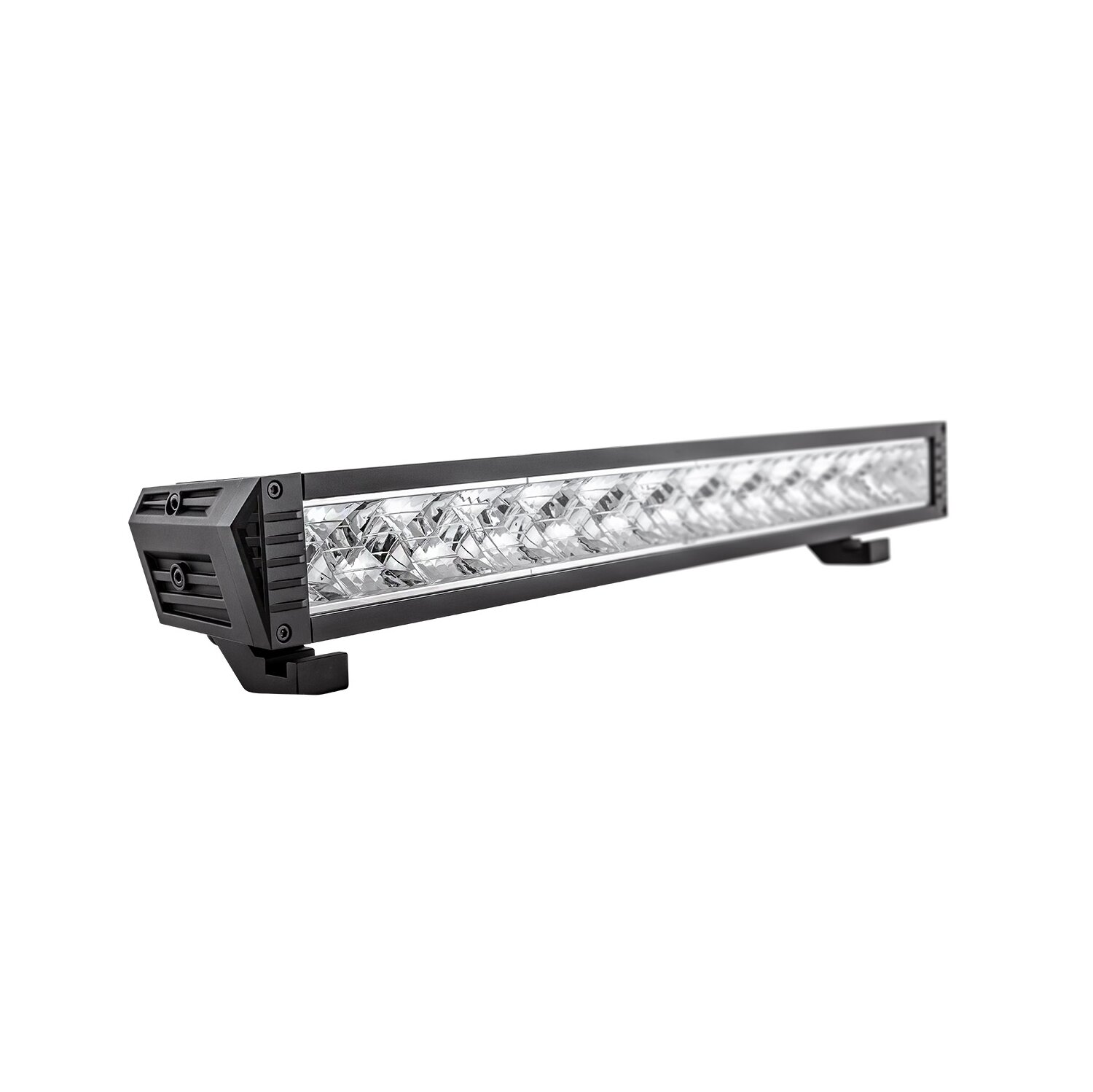

Lightpartz Prime-X 20" LED Onroad Driving Lightbar ECE

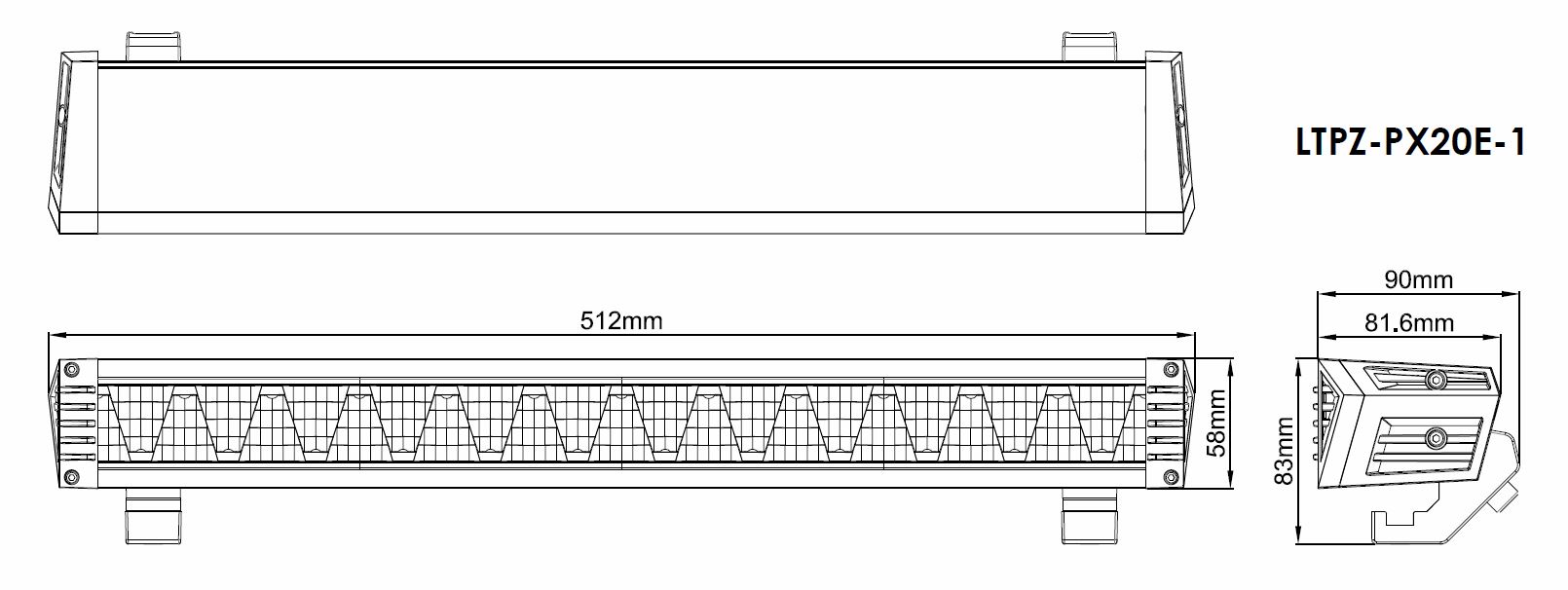

Item number: LTPZ-PX20E-1

ECE R112 High Beam
ECE R10  electromagnetic Compatibility
Range: >1250m

Category: Prime-X


499,00 €

including 19% VAT. , no shipping costs

Available now!

Shipping time: 1 - 2 workdays



Special Features:
  • Highest water proof: Suitable for high pressure
  • Highest quality materials
  • Extremely small installation size
  • Possible operation at an environmental temperature of -40° - +95° C
  • Certification for electromagnetic compatibility
  • Reference number: 50

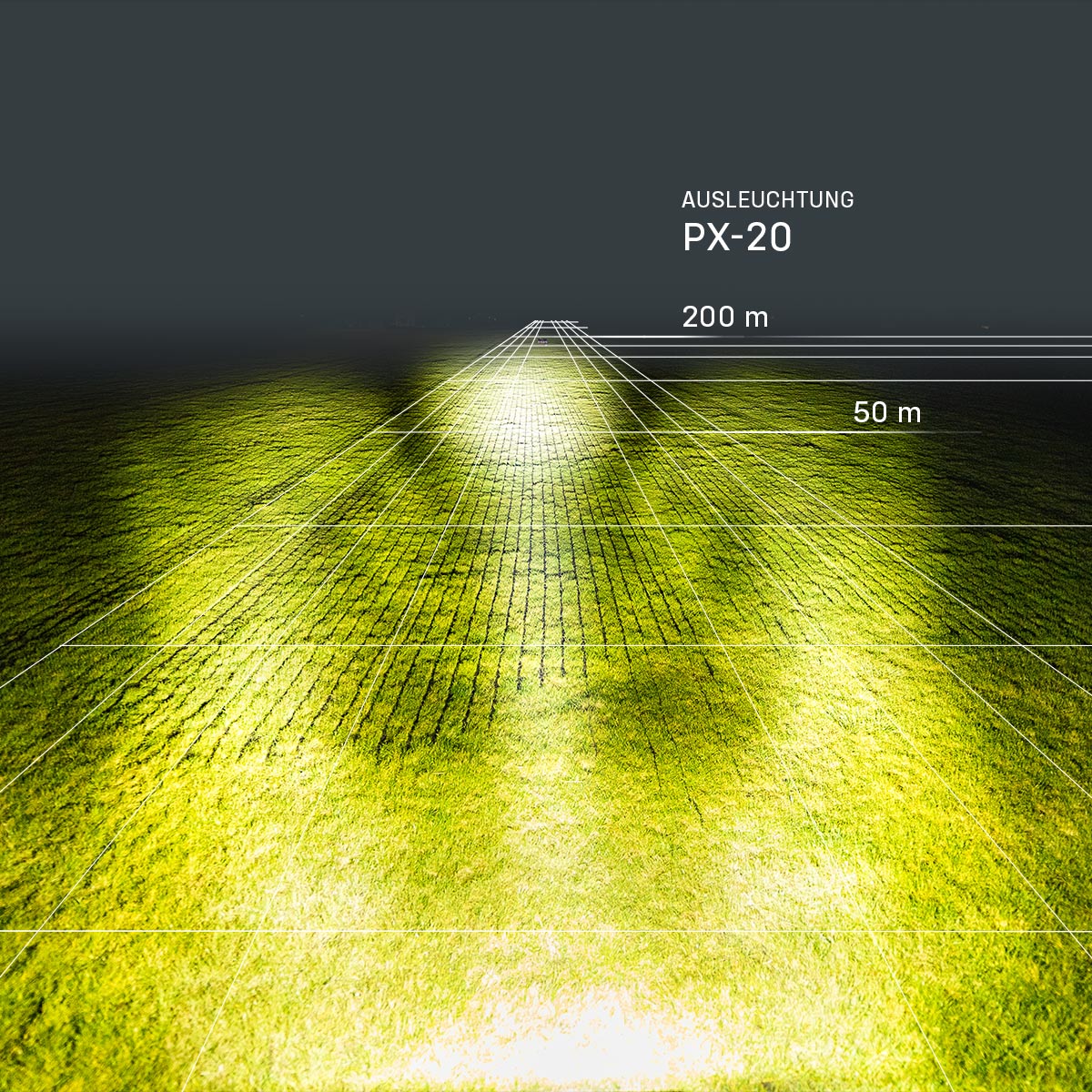

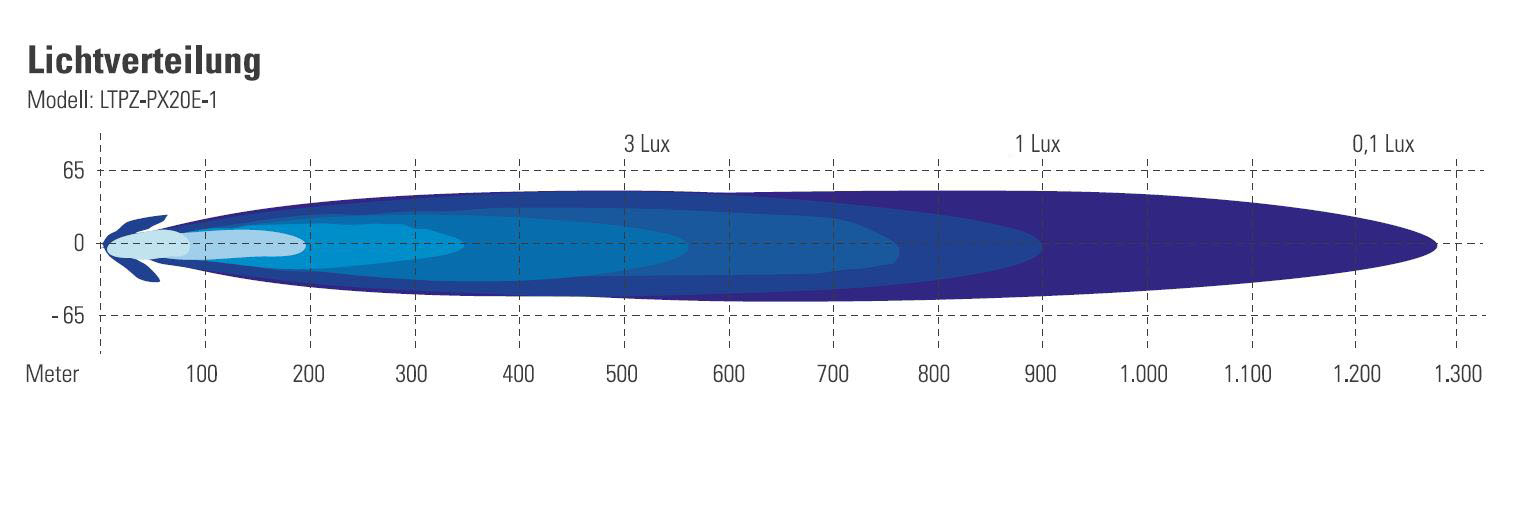

  • Range: >1250m (0.1Lx)

Technical Data:

  • Operating Voltage: 9-33V DC
  • Housing: Aluminum 6063, UVHC-3000 black coating
  • Lens: Sabic LEXAN LS2-111

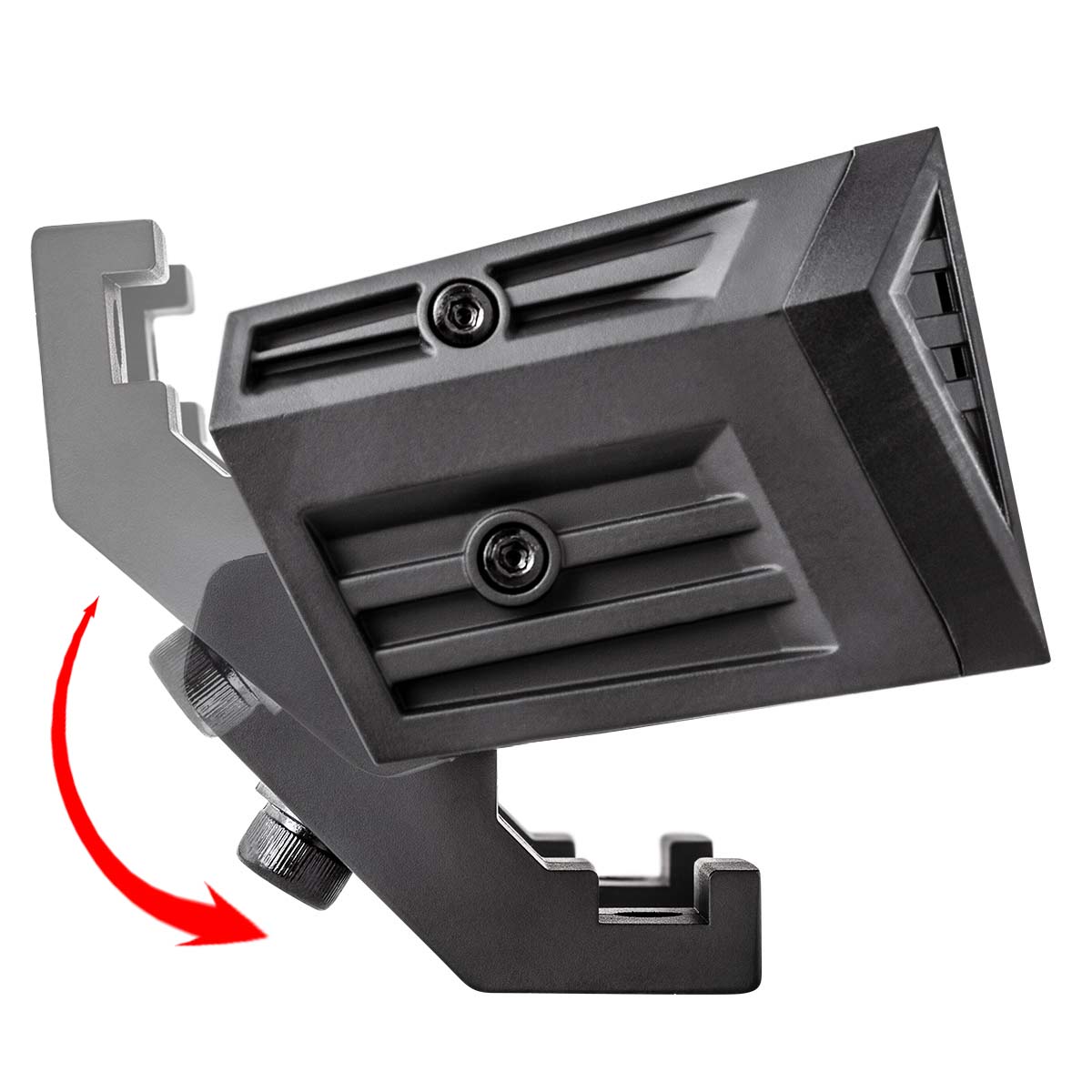

  • Bracket: Alu-Die-Cast
  • Protection Class: IP69K (Test according to ISO 20653 (2013)
  • Connector: DT04-2P
  • Homologation: ECE R10 | R112.01
  • Reference number: 50
  • Lumen (raw): 8.734
  • Power: 12V: 76.4W / 24V: 75.6W

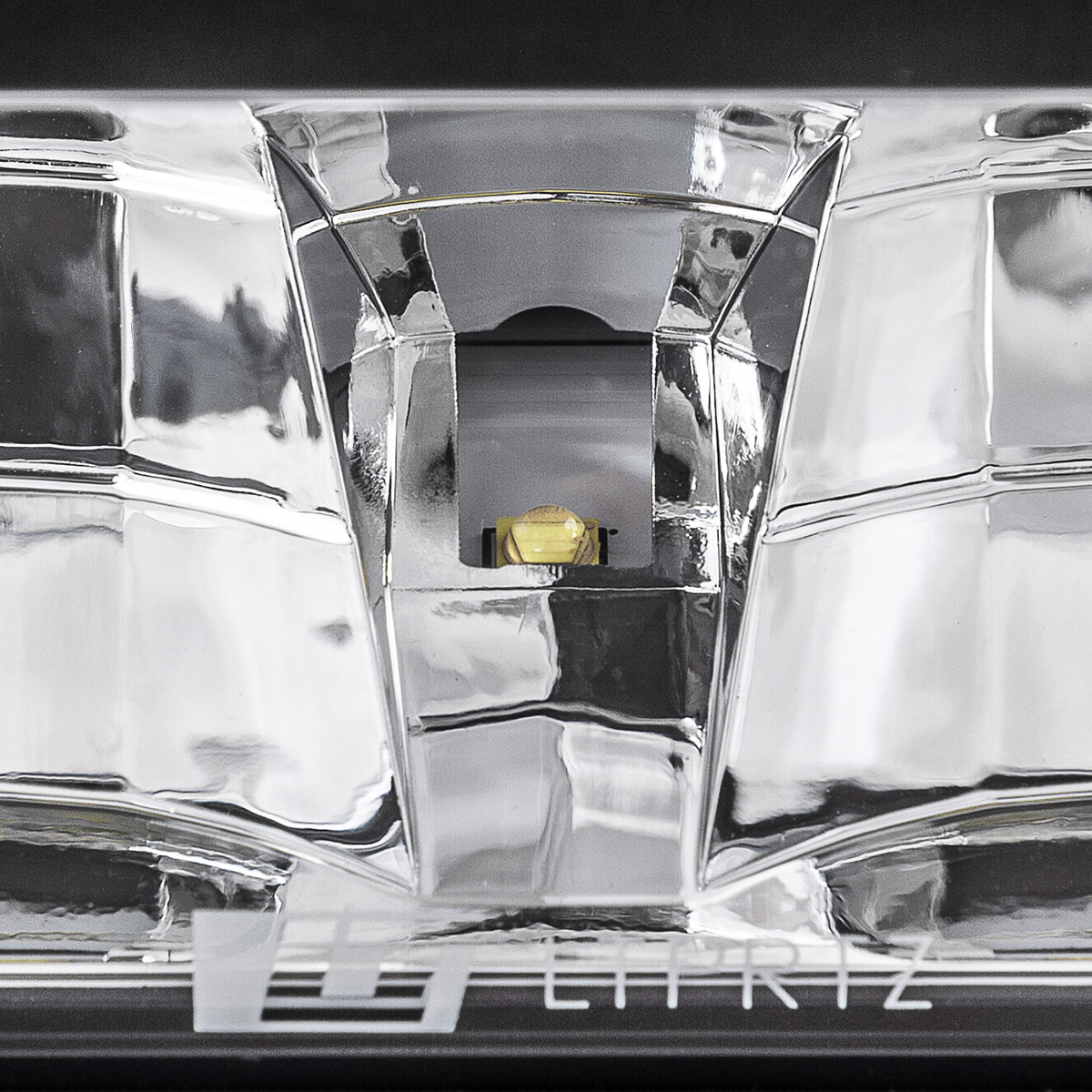

  • LEDs: 23 pcs.
  • Light Color: white
  • Luminous Intensity: 12V: 209.100 cd / 24V: 205.800 cd
Datasheet (english):
