Prime-X Gen 2.0 7" LED Fernscheinwerfer Lightbar ECE

Item number: LTPZ-PX2-7E

EAN: 4260482527938



Homologation:
ECE R112
High Beam
ECE R10  Electromagnetic Compatibility

Range of light: >700m

Category: VW Crafter Zusatzscheinwerfer


199,00 €

including 16% VAT. , plus shipping

item not available
Available from: 15.02.2021

Zubehör zum Mitbestellen:

+ 69,90 €
a Array b null


LIGHTPARTZ High-End

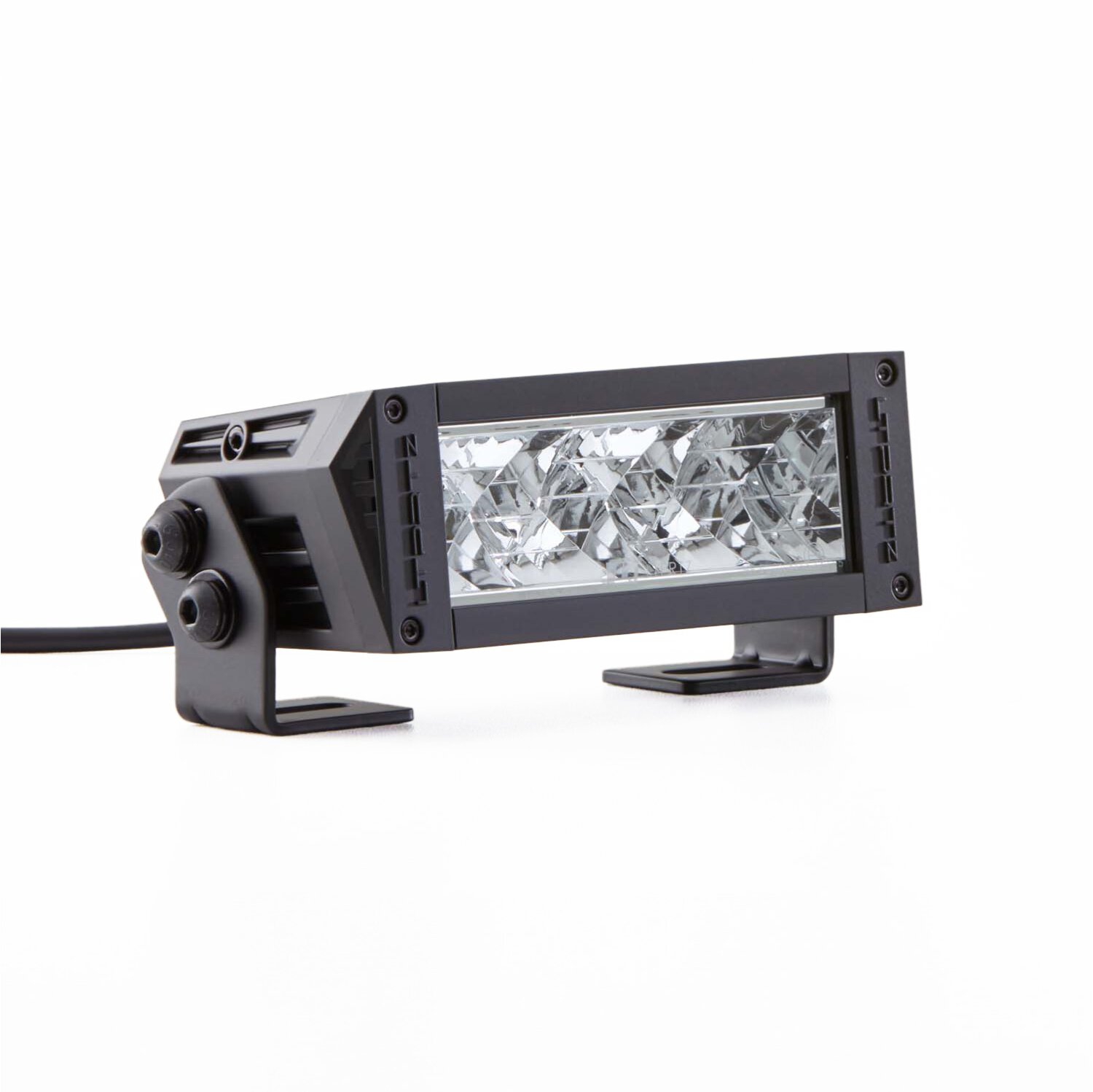

Prime-X Gen 2.0 7" Onroad Driving Lightbar


Special Features:

  • Highest water proof: Suitable for high pressure
  • Highest quality materials
  • Extremely small installation size
  • Possible operation at an environmental temperature of -40° - +95° C
  • Certification for electromagnetic compatibility
  • Reference number: 12.5
  • Range: >700m (0.25Lx)




Technical Data:

  • Operating Voltage: 9-33V DC
  • Housing: Aluminum 6063, UVHC-3000 black coating
  • Lens: Sabic LEXAN LS2-111
  • Bracket: Stainless Steel, side and Bottom mount
  • Protection Class: IP69K (Test according to ISO 20653 (2013)
  • Connector: DT04-2P
  • Homologation: ECE R10 | R112.01
  • Reference number: 12.5
  • Lumen (raw): 1.985
  • Power: 12V: 24.3W / 24V: 23.8W
  • LEDs: 5 pcs.
  • Light Color: white
  • Luminous Intensity: 12V: 58600 cd / 24V: 56870 cd




Shipping weight: 1,00 Kg
Product weight: 0,82 Kg
Dimensions ( length × width × height ): 16,10 × 8,16 × 5,80 cm
