LTPZ-PXHL-7 Headlight | ECE-Road approval

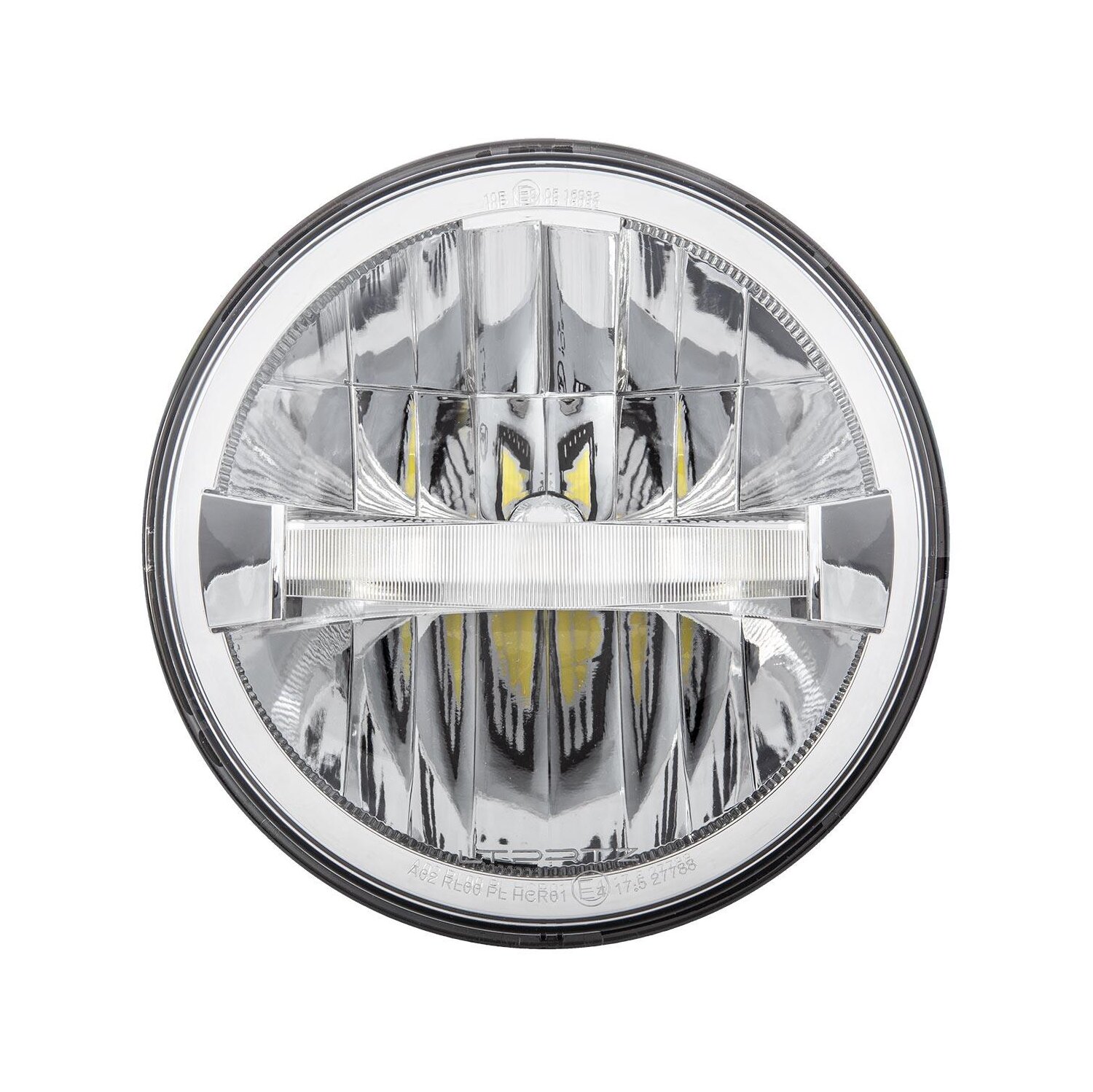

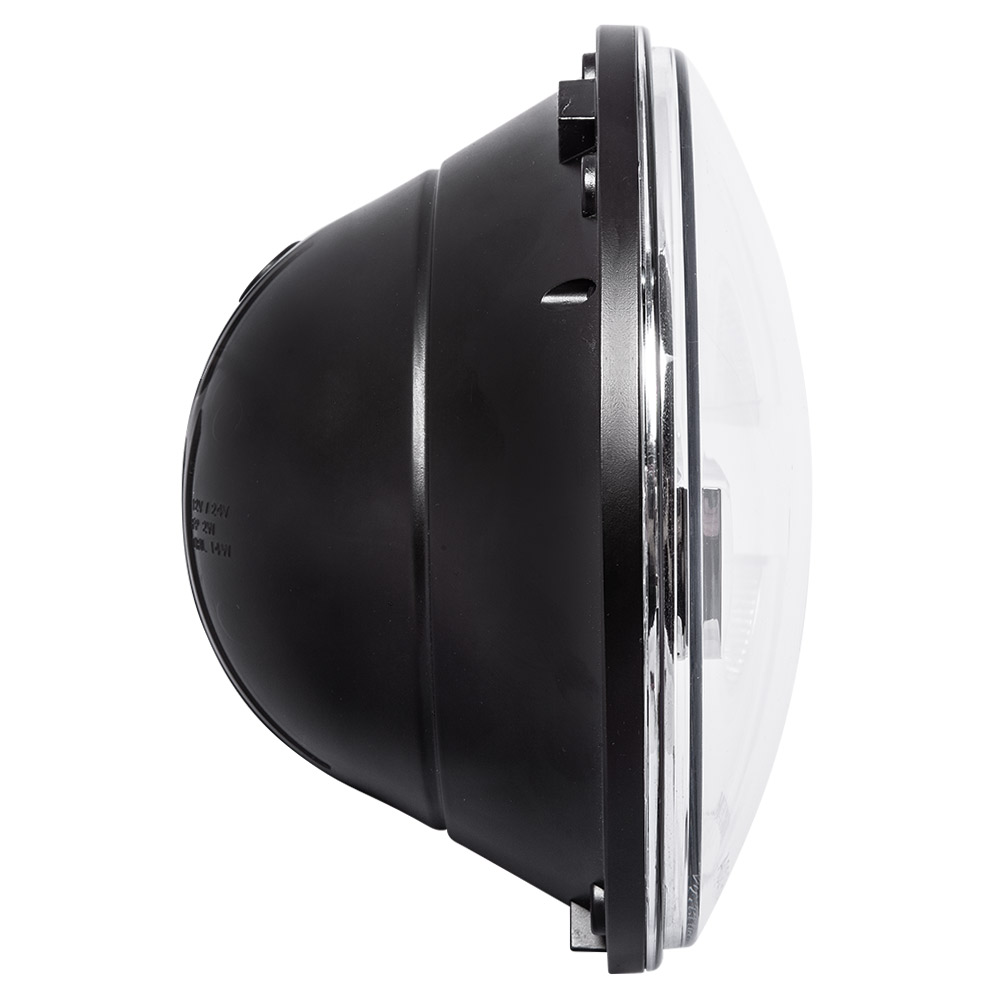

The PREMIUM- 7" HEADLIGHT
Original equipment optics and quality
Position and daytime running light
with condensation compensation membrane

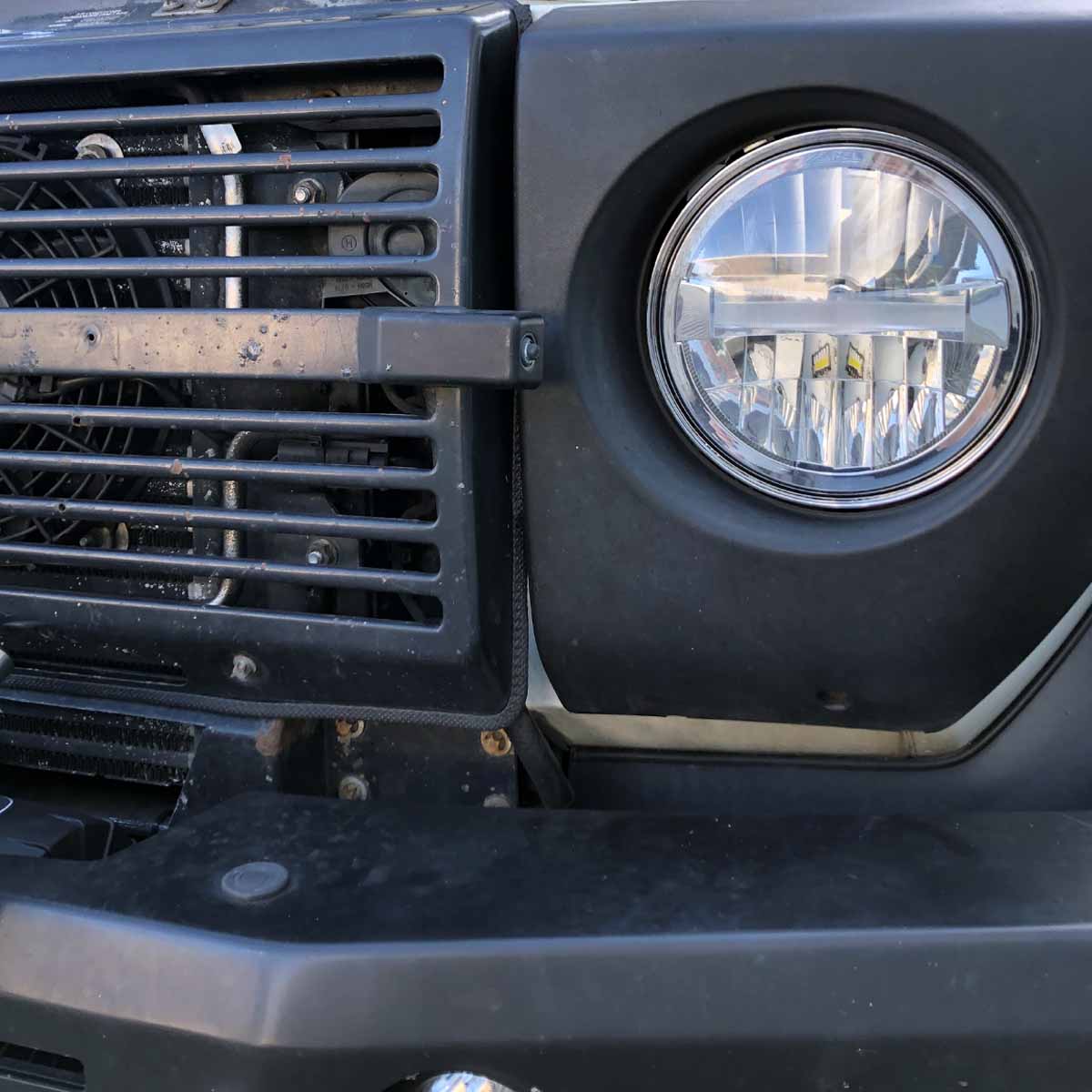

Whether for Mercedes G, Defender or all other models with 7" headlights -
with this headlight you get the unadulterated original look of your favourite,
but benefit from pioneering LED reflector technology that shines through any darkness.
Say goodbye to your candle lights and switch to a new driving experience.
The Lightpartz LED headlight can be used for automotive Defender, Hammer, G-Class, motorcycles, individual tuning and off-road 4x4 vehicles and much more.
To replace the original halogen bulb, it fits perfectly to your favourite vehicle.
The function includes high beam, low beam, position light and daytime running light (DRL).
The streamlined design shows the form of simplicity and aesthetics; it also reduces the bulb's bulb bulb bulb bulb size.
Not only does it have an elegant design, but it also makes full use of the reflector to ensure excellent performance and beam characteristics.
Due to the LED light source, the color is not only cold white (6000K), but can also save up to 87% of the previous power consumption of conventional light sources.
This significantly reduces the overall power consumption of the car and extends the battery life;
The LED light can be used for up to a hundred thousand hours.
Technical Data | ||||||||
Input Voltage | 9-33V | |||||||
Light Source | Low-Highbeam: 1x OSRAM each Position/-DR-light: 4x CREE |
|||||||
Lifetime LED | up to 100.000 h | |||||||
Light Power (raw) | Information follows | |||||||

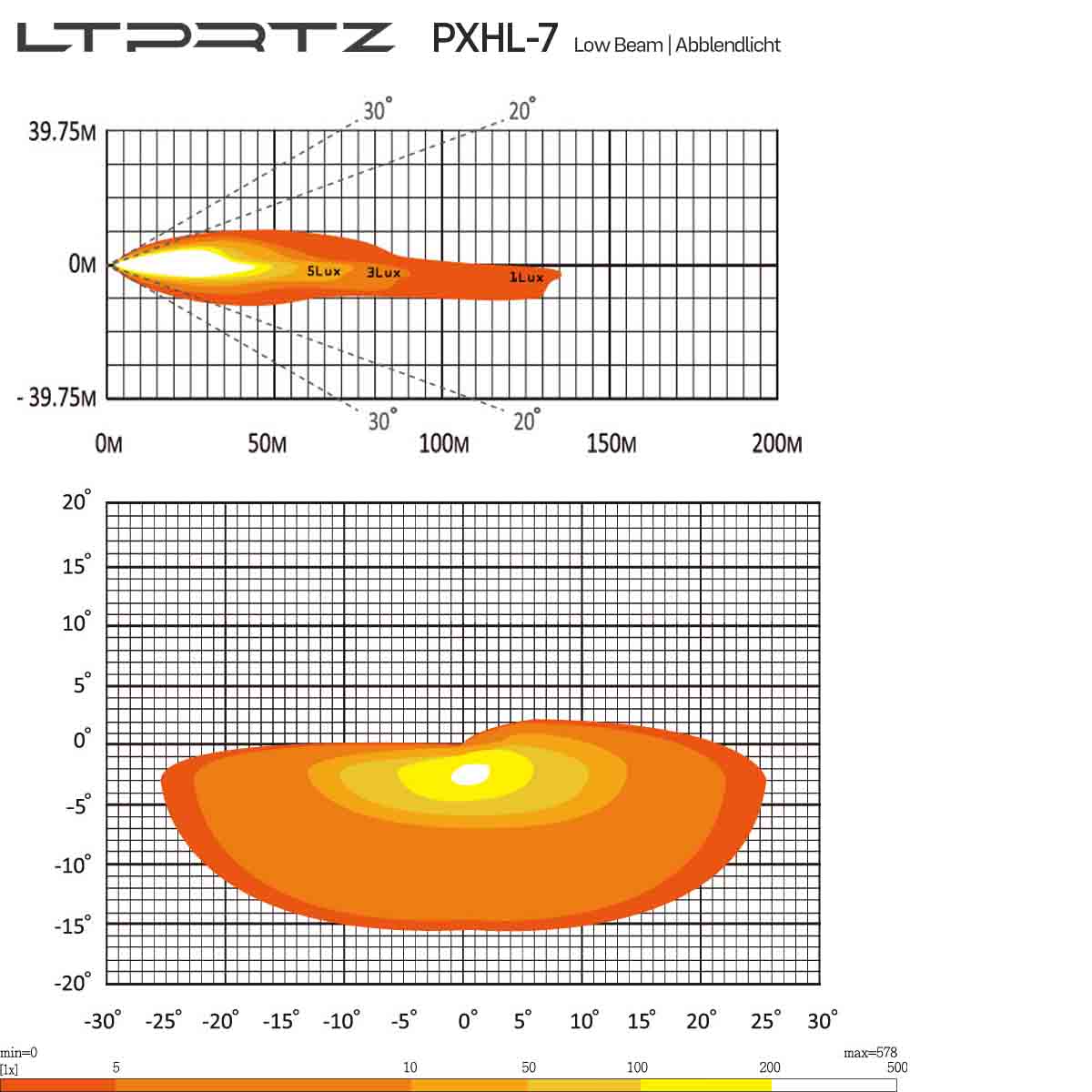

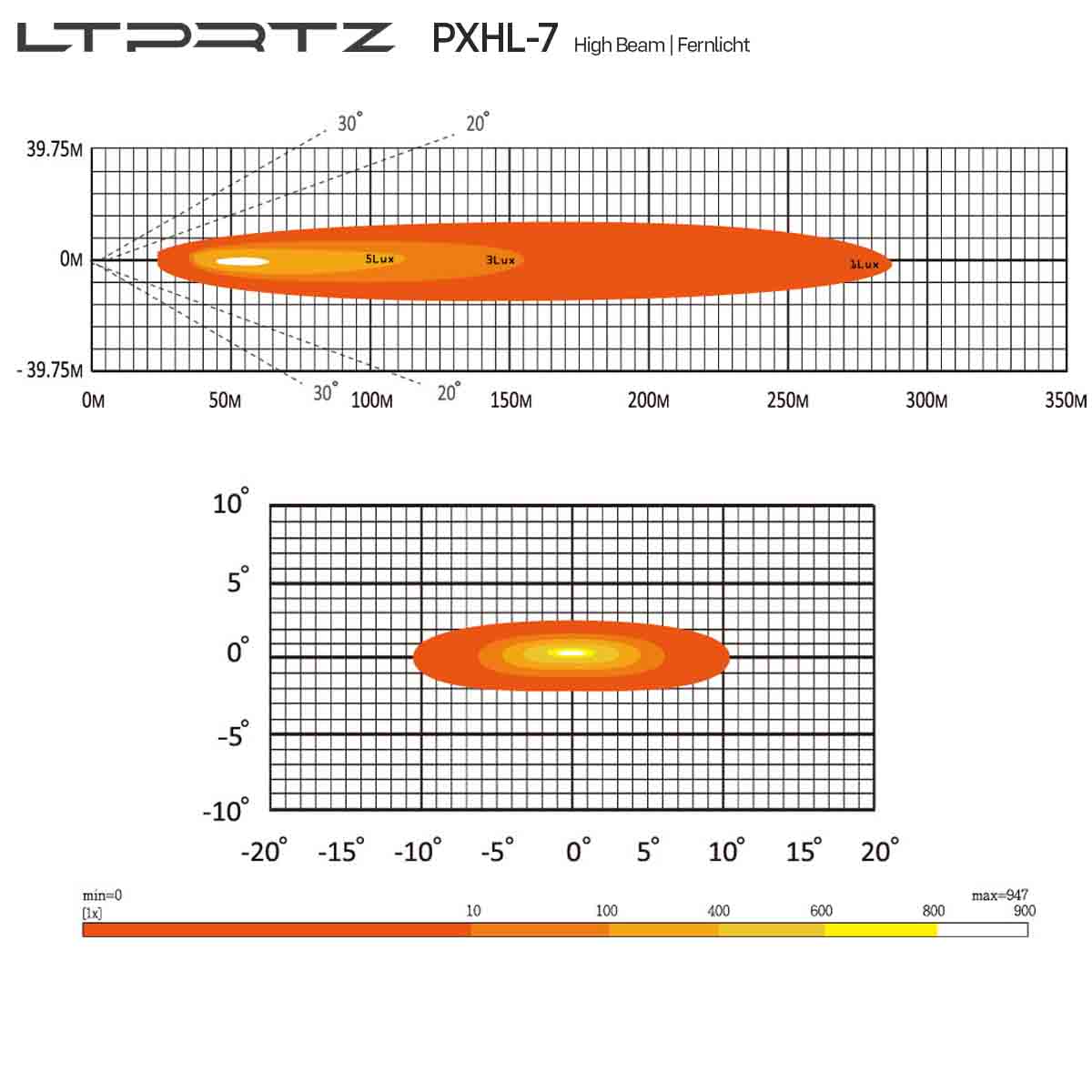

Lightspread | ECE | |||||||
Light Color | 6000K | |||||||
Protection Class | IP68 | |||||||
Lens | break resistent Polycarbonate | |||||||
Housing | Aluminum Die Casting | |||||||
Mounting | Fits in original bracket | |||||||
Plug | H4 | plus 3-pole | |||||||
Weight | 0.8 kg | |||||||

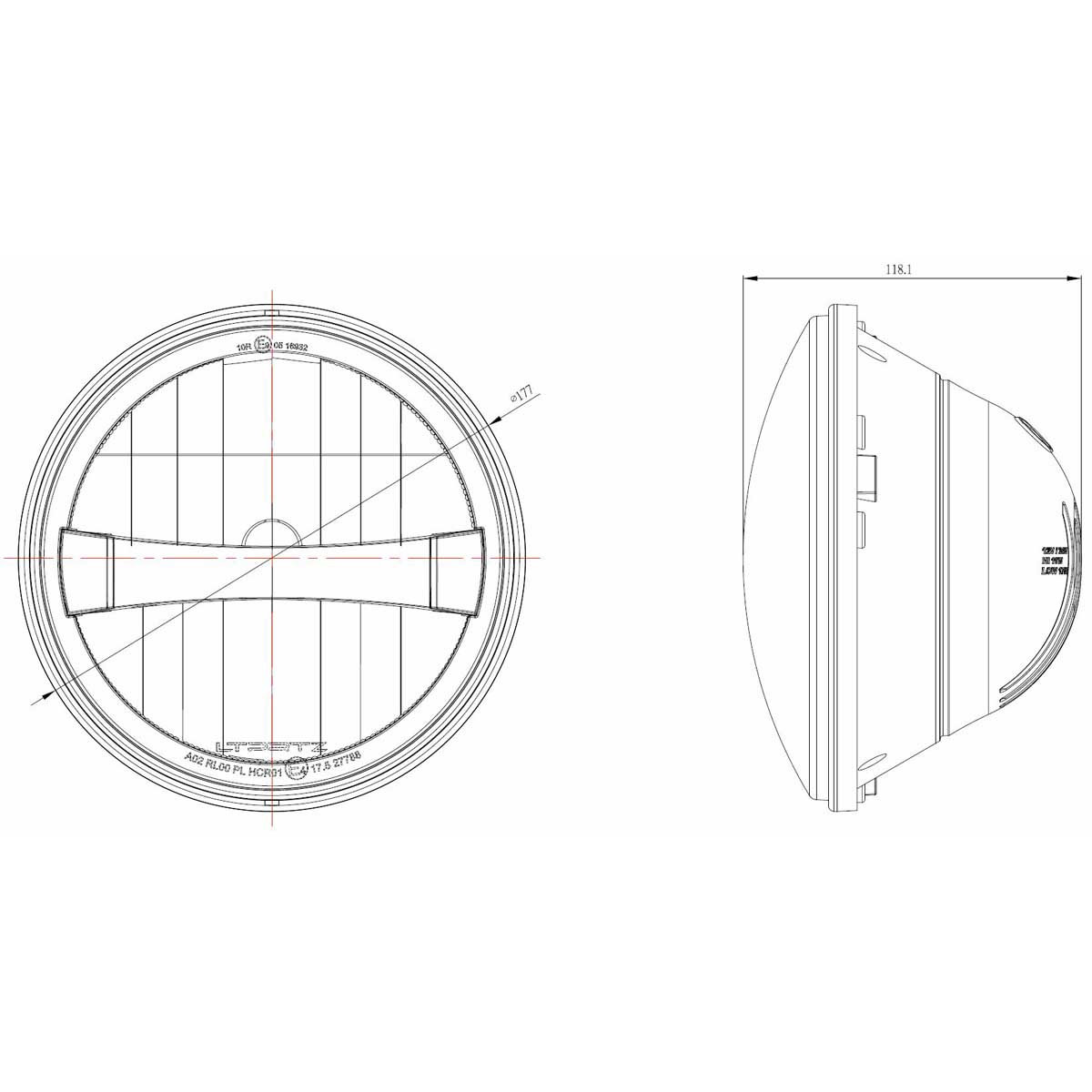

Dimensions | Ø 177 mm | Depth 118 mm | |||||||
Homologation: | ECE 112R Class B|87R|7R|10R| Ref. 17.5 |
Please check possible restrictions of your vehicle regarding
the installation depth of the headlight before installation!
It may be necessary to modify the existing headlight mountings!
Shipping weight: | 1,50 Kg |
Product weight: | 0,80 Kg |
Dimensions ( length × width × height ): | 17,70 × 11,81 × 17,70 cm |
