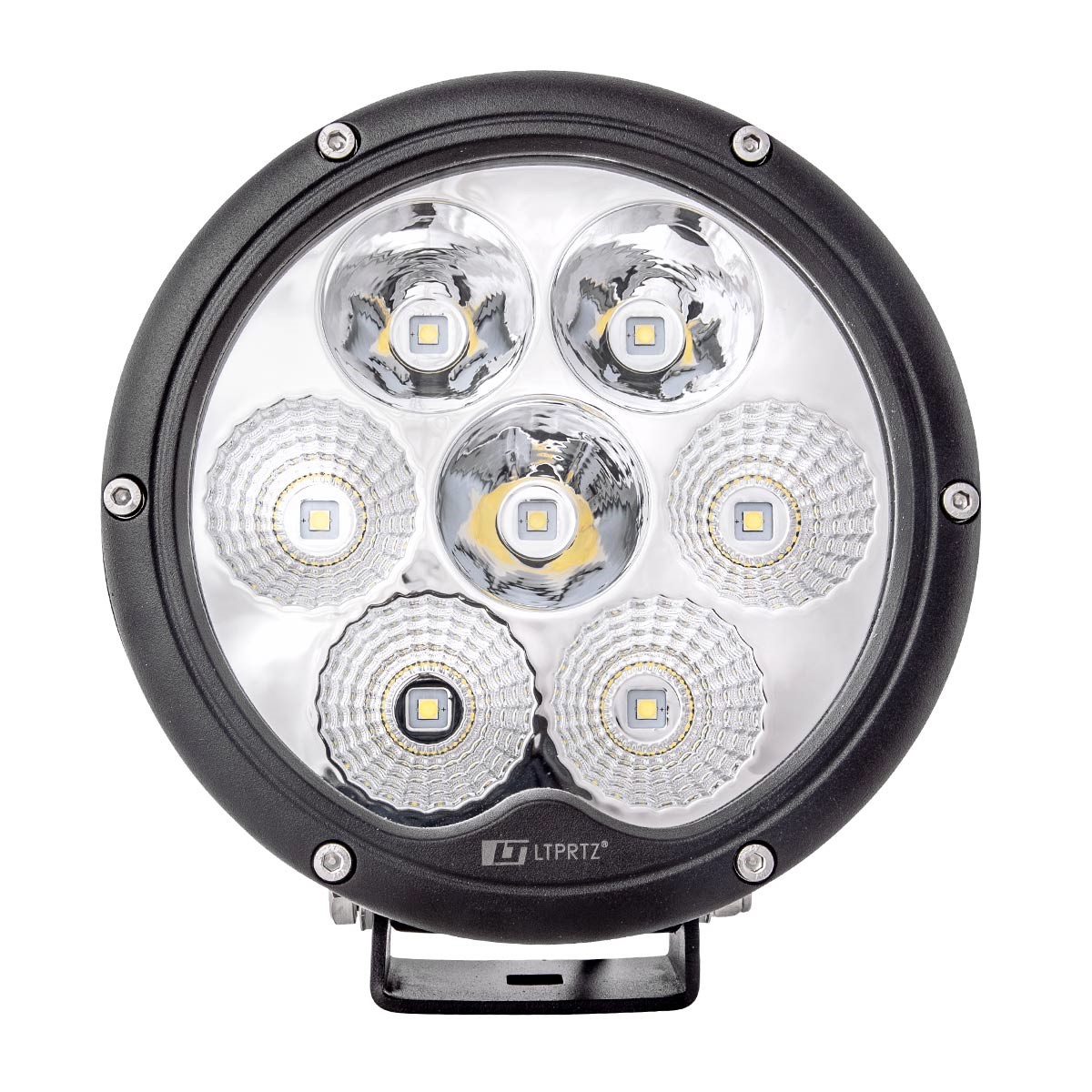

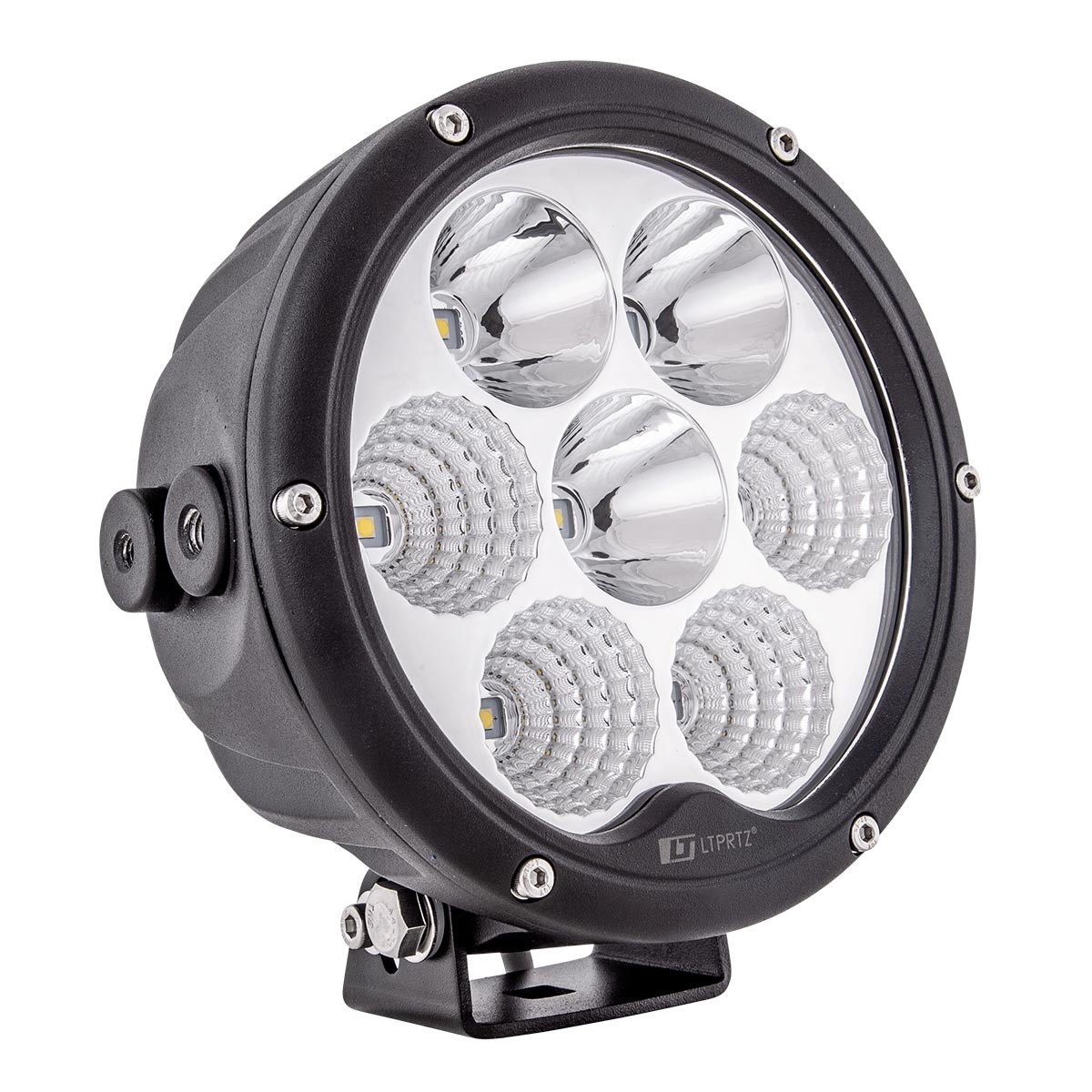

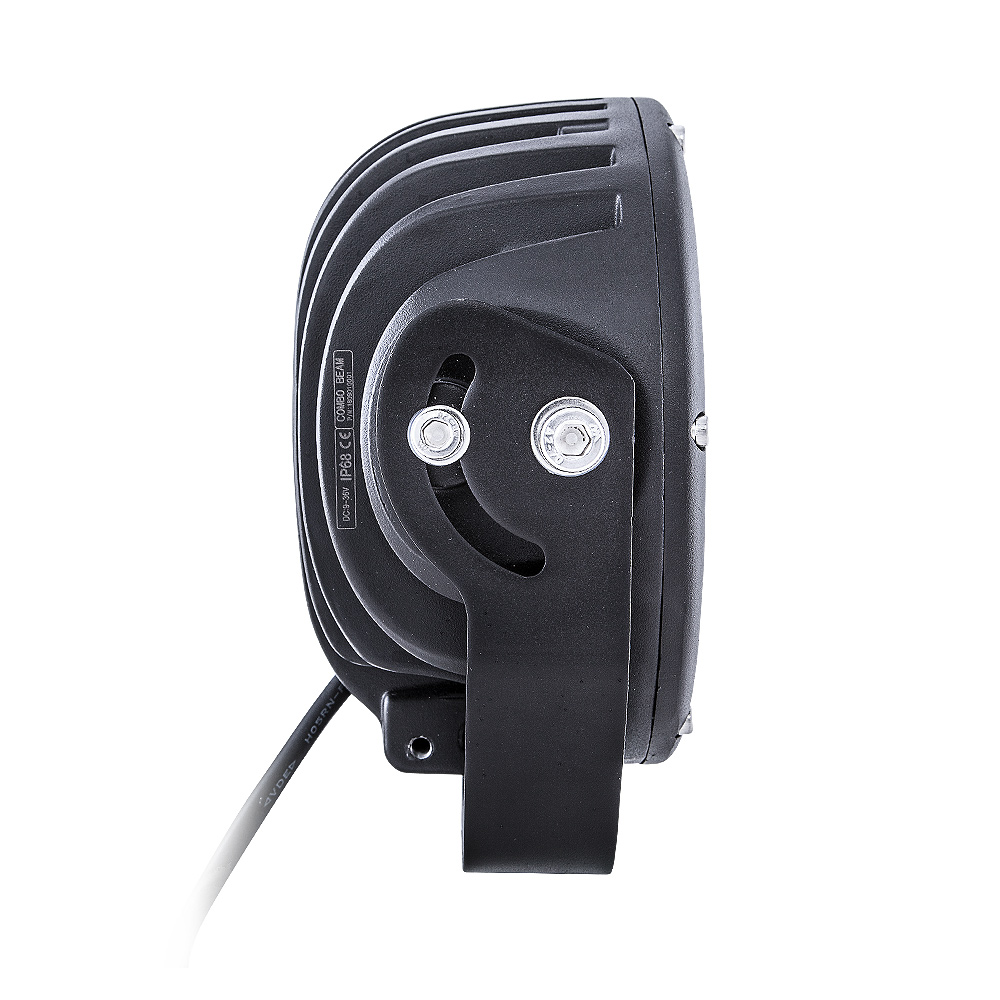

70W LED Driving Light Model DL009-C Combo 10°+60° ECE

Item number: LTPZ-DL009-C

Category: Driving Lights round

179,00 €

including 19% VAT. , plus shipping

Available now!

Shipping time: 1 - 2 workdays


UltraLux Onroad LED Driving Light DL009-C Combo ECE

Protected against:

  • reverse polarity
  • RFI/EMC Interferences
  • voltage and current surges



  • shockproof
  • waterproof
  • UV-shielded
  • anodized polyester powder coating
  • efficient polycarbonate lens reflector
  • environment Temperature: -40° - +60°
  • certification for high beam

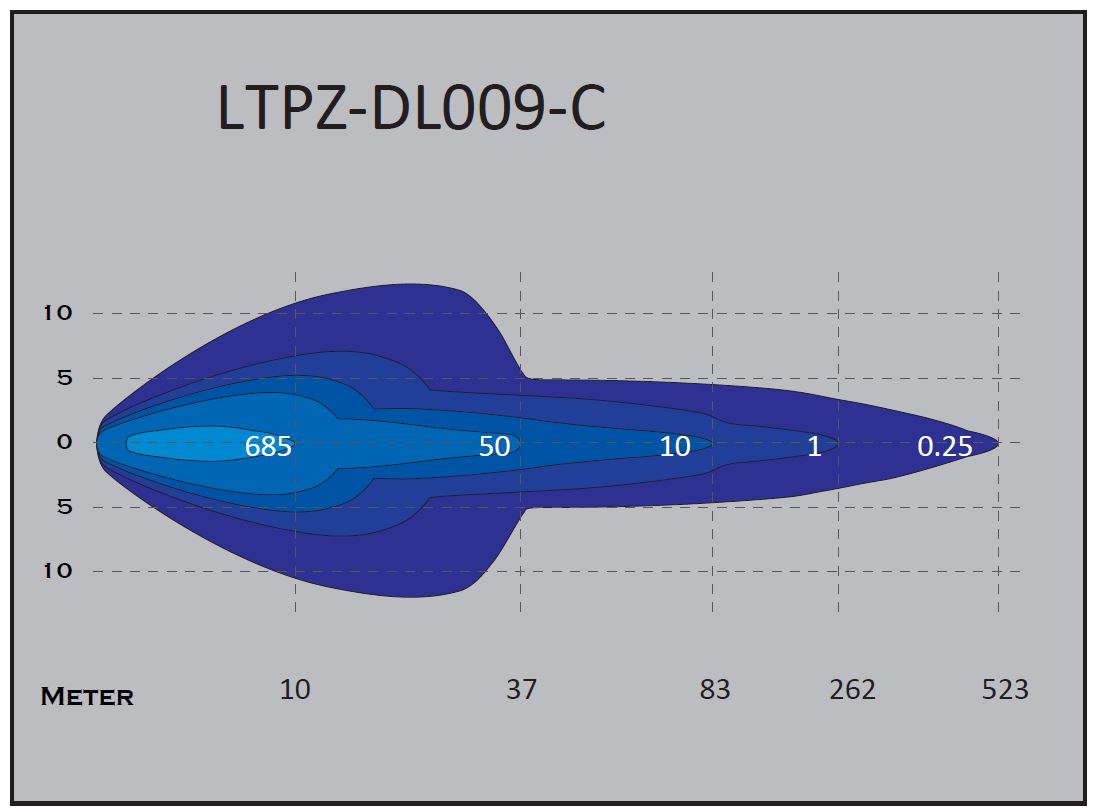

  • range: 523m (0.25Lx)
  • reference number: 17,5

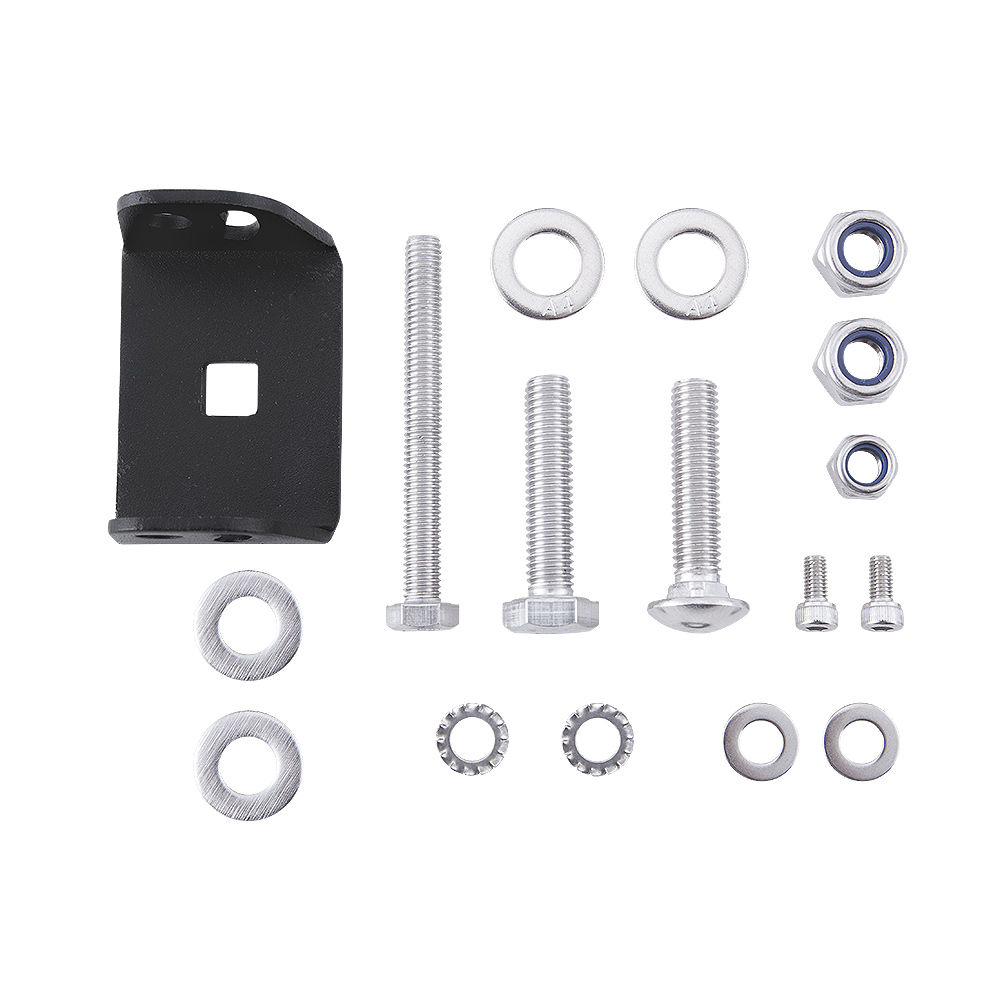

Delivery includes:

  • Mounting bolts

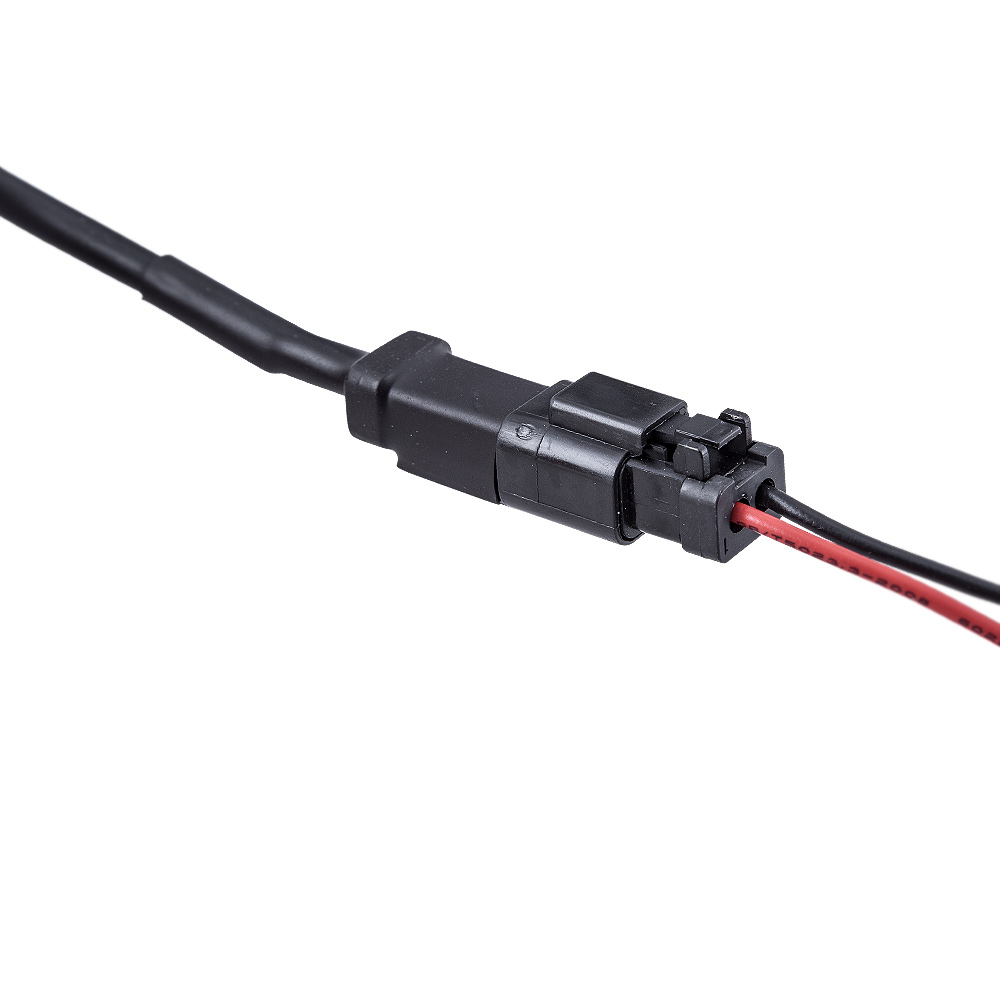

  • DT-connector male and female

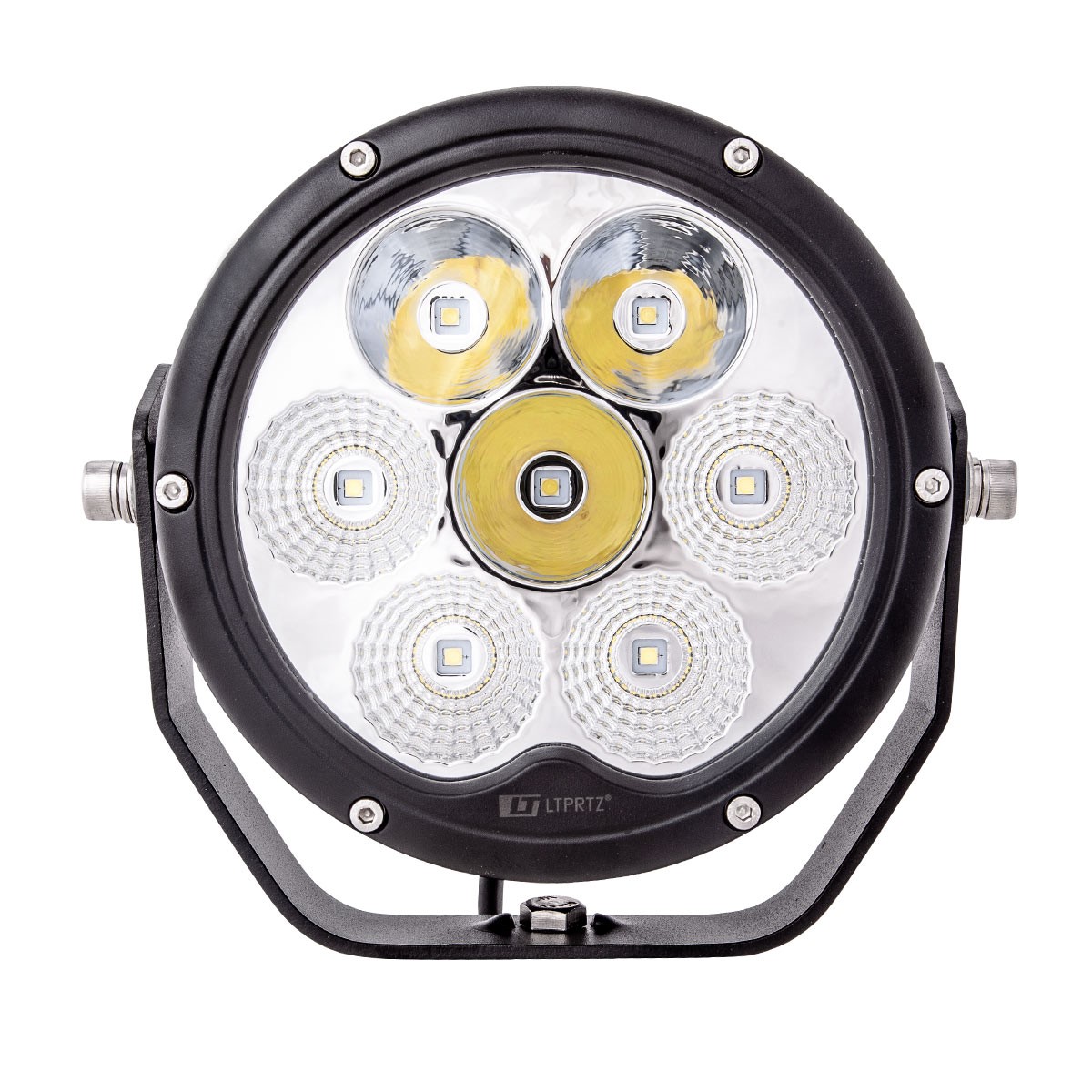

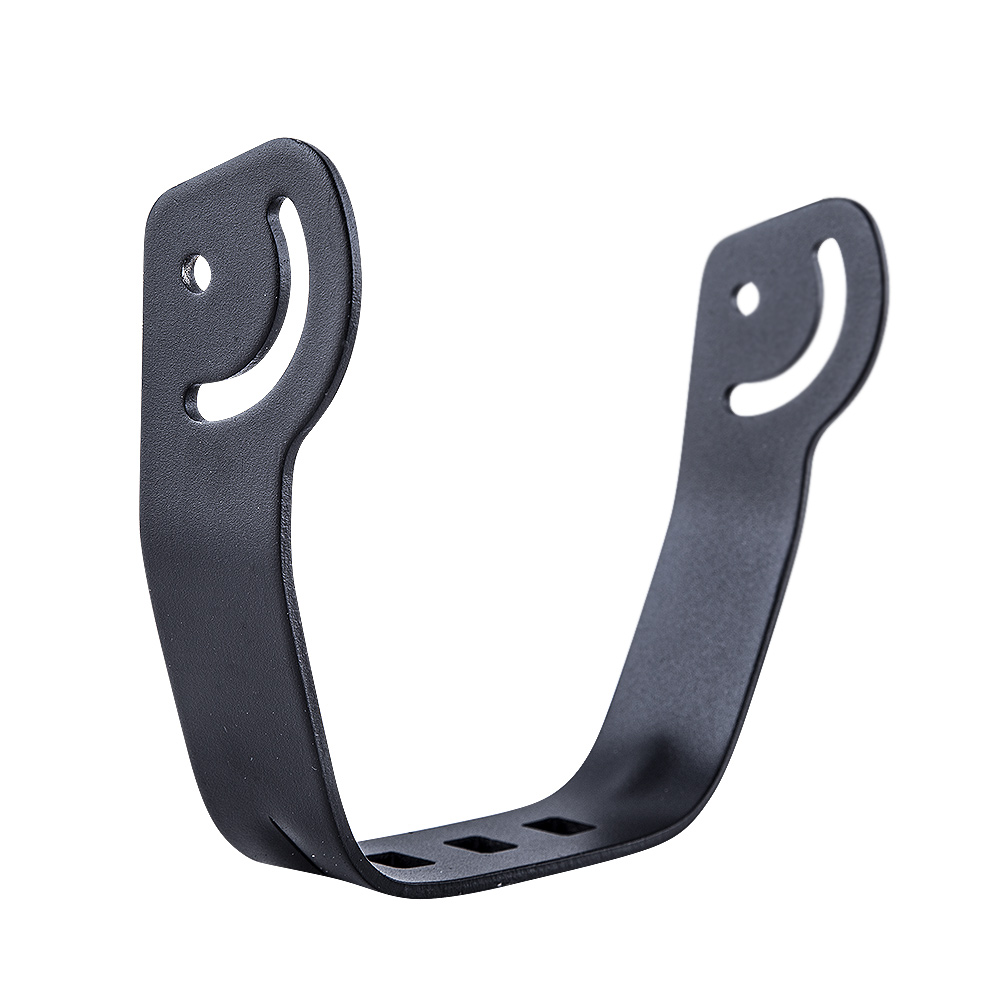

  • 2x stable brackets (1x side bracket, 1x bottom bracket as shown)

Technical Data
Input Voltage   9-36V
Light source 7x 10W OSRAM LED Chips
Power input   70W
Raw lumens 6.300lm
Light spread   combination Spot/Flood
Light intensity 68.900cd
Protection class   IP68
Lens break-resistant polycarbonate

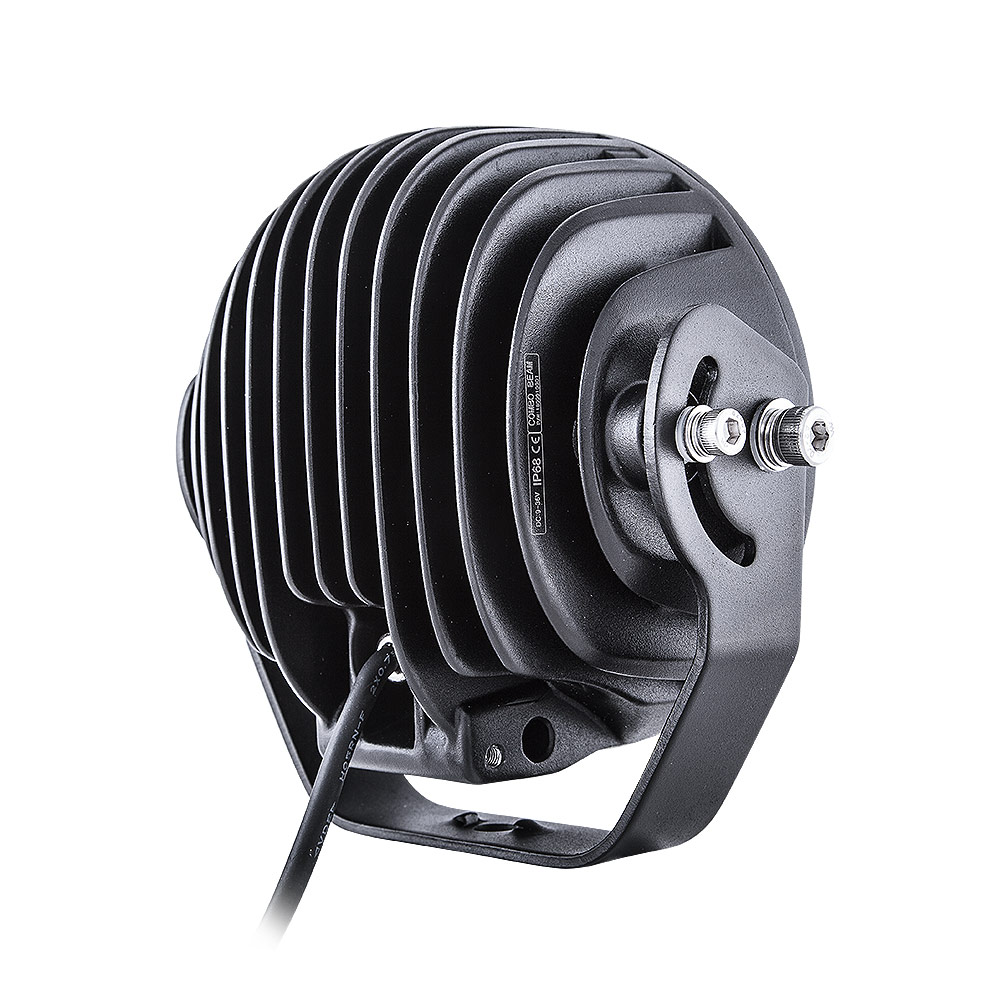

Housing   die-cast aluminium
Mounting standing | hanging
Connection   Deutsch-plug
Weight 1.5 kg

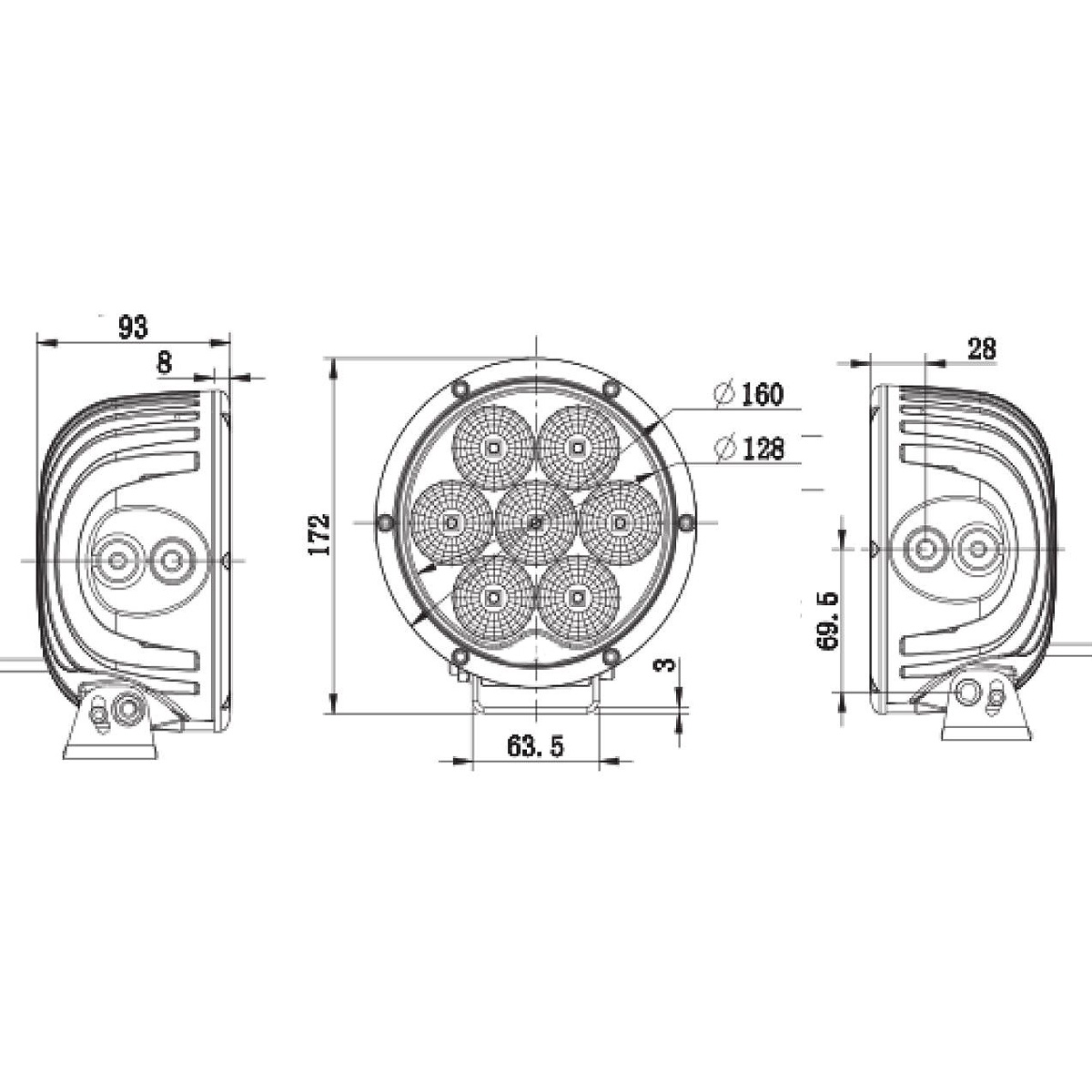

Dimensions   160.0 x 93.0 x 172.0 mm
Homologation ECE 112R

Shipping weight: 2,30 Kg
Product weight: 2,19 Kg
