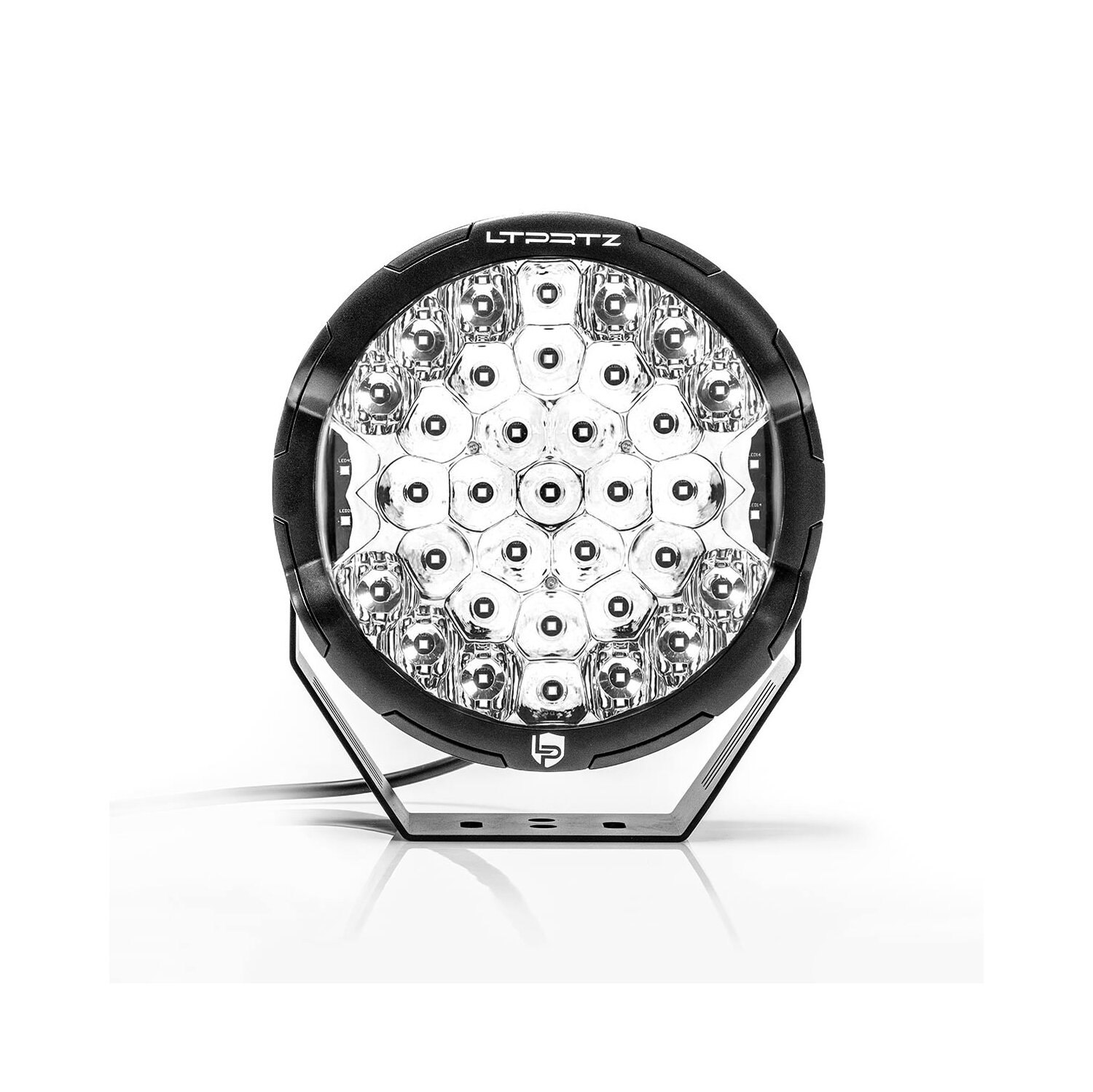

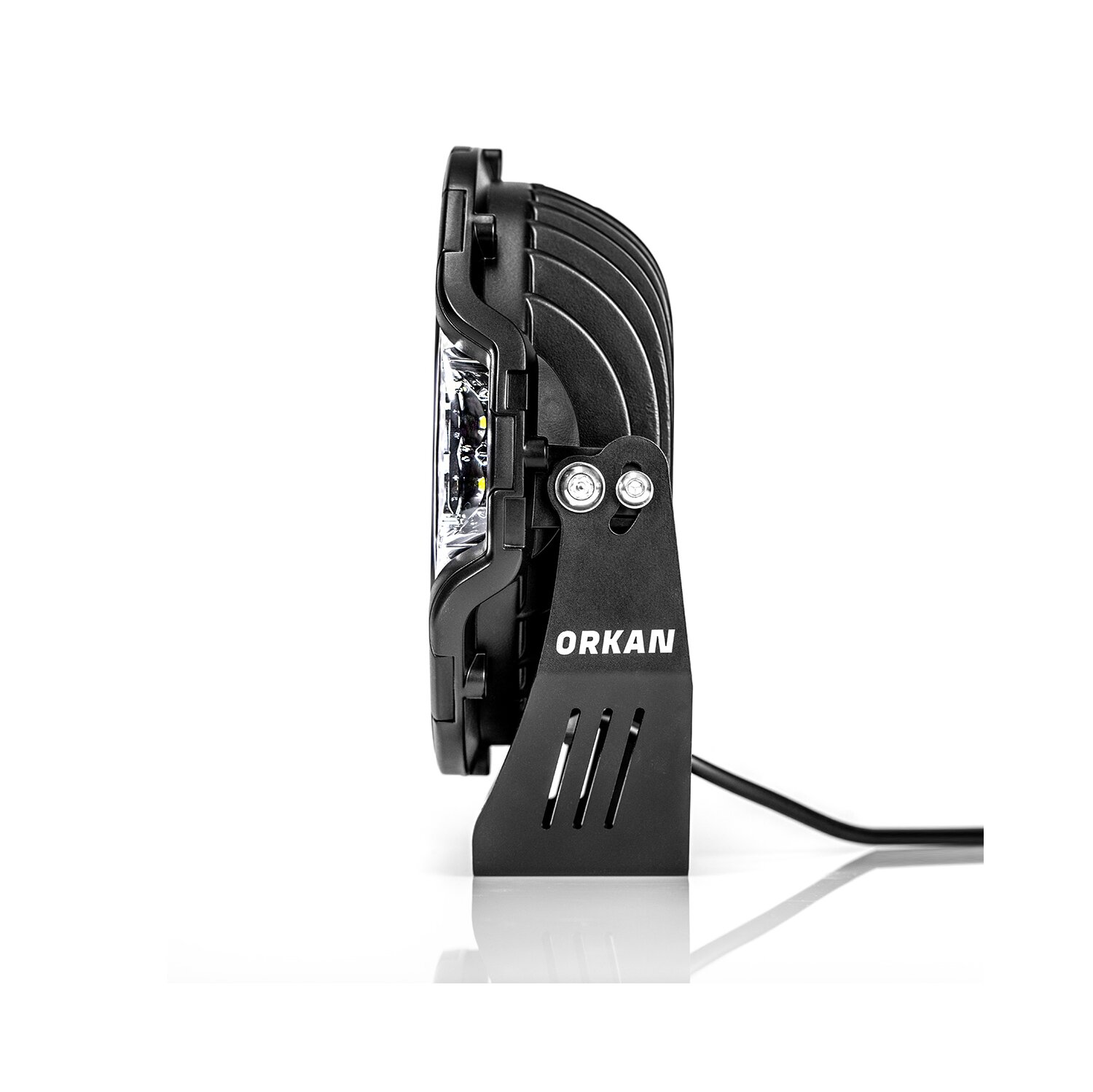

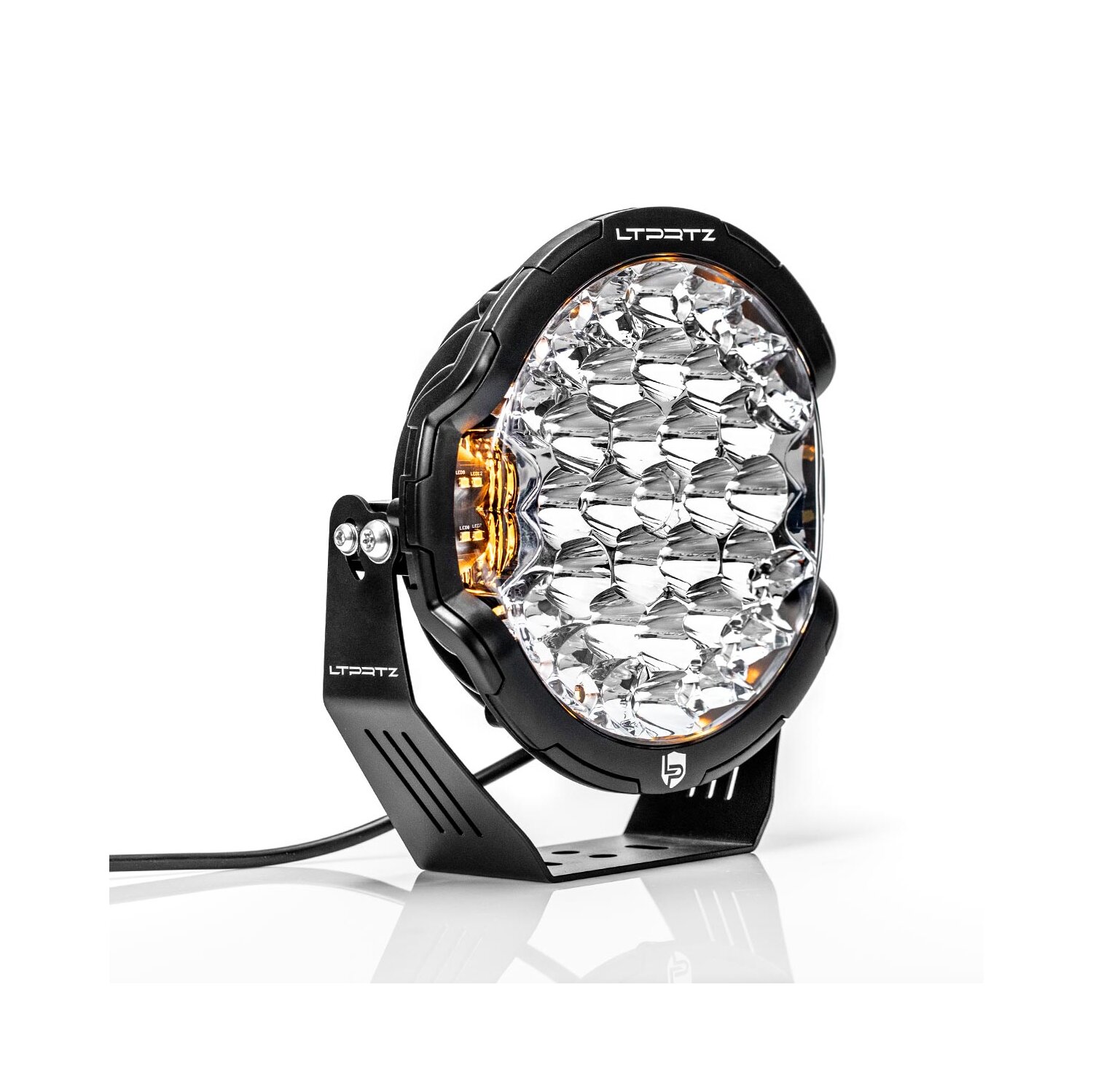

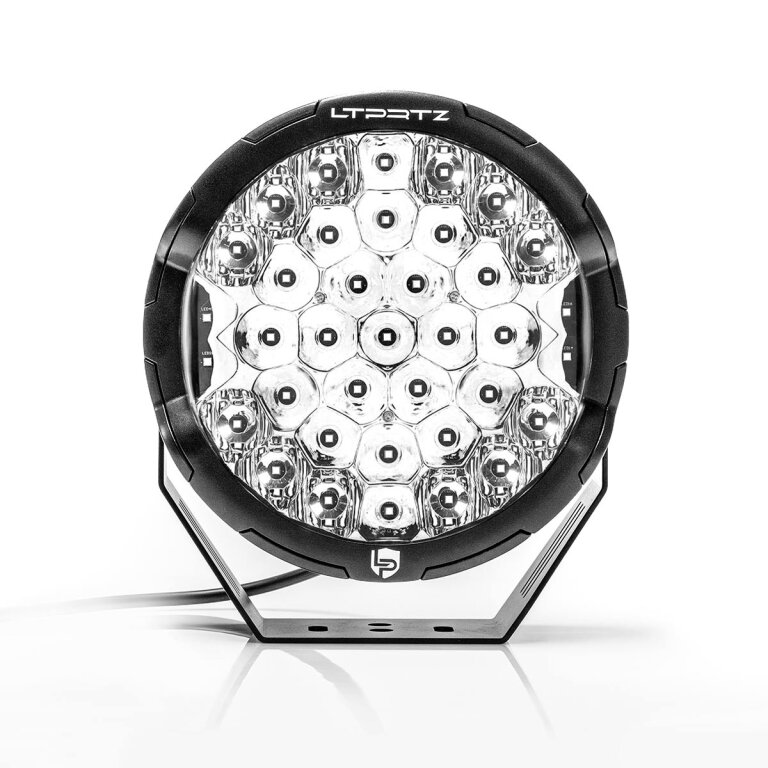

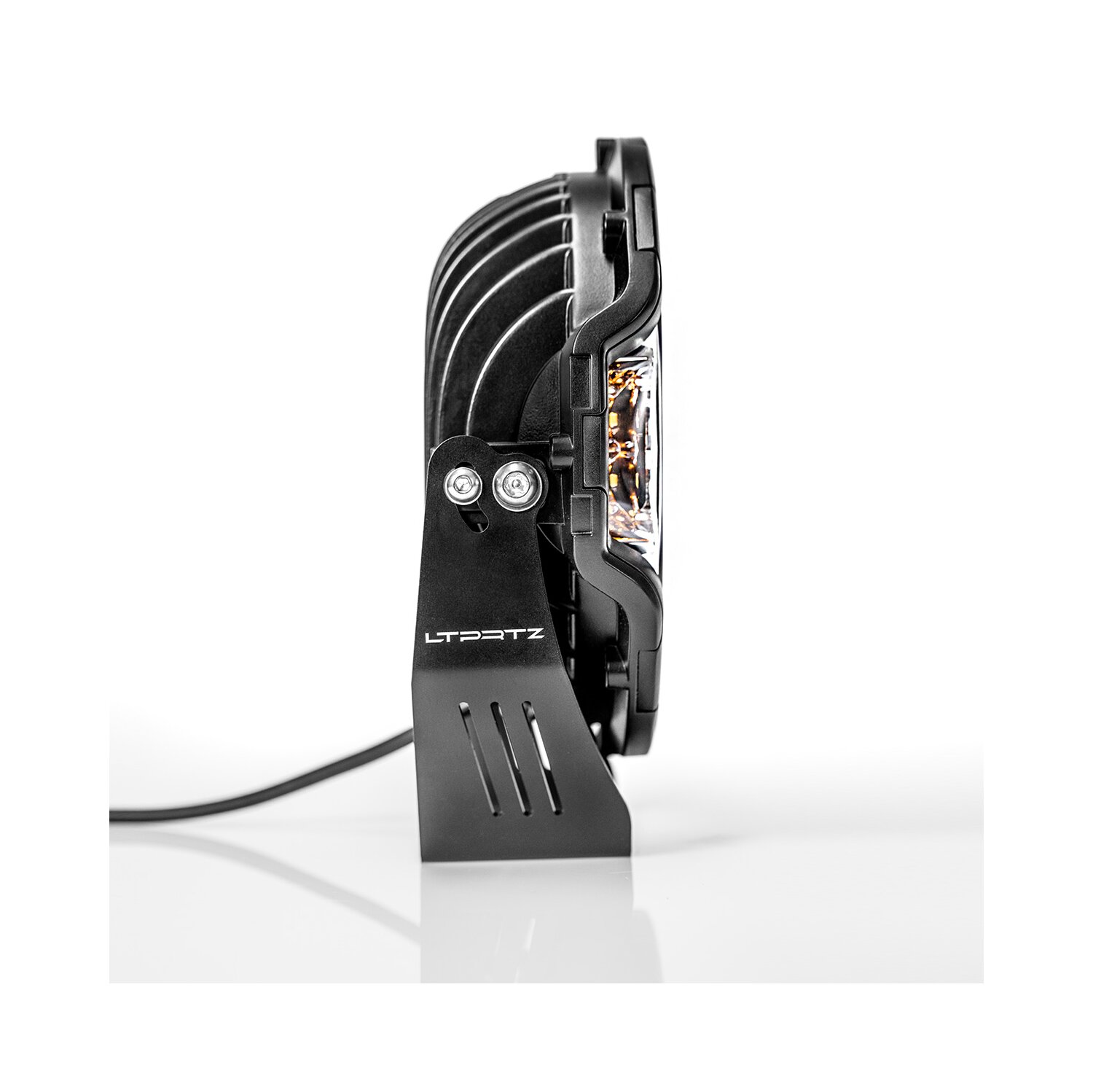

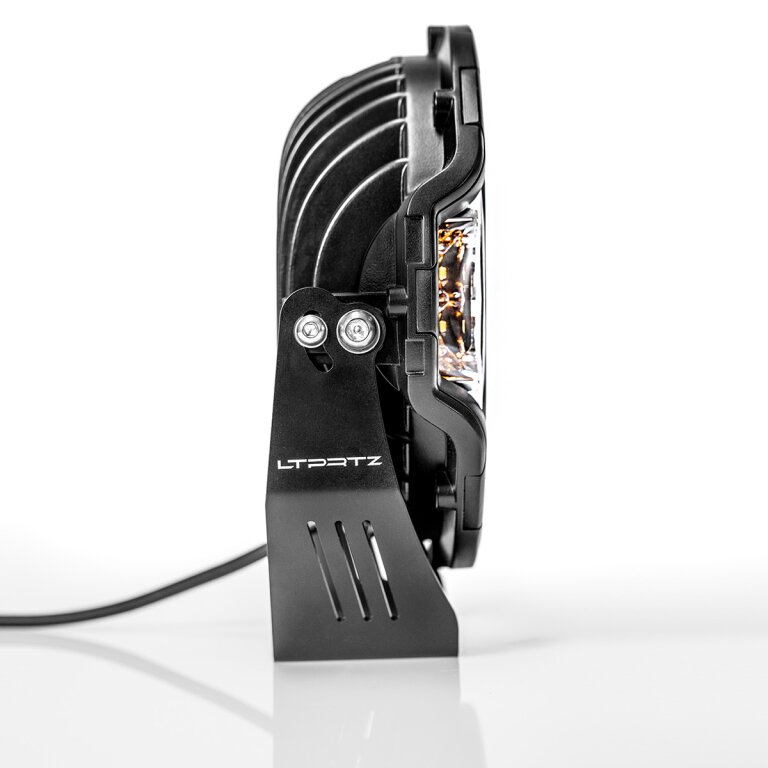

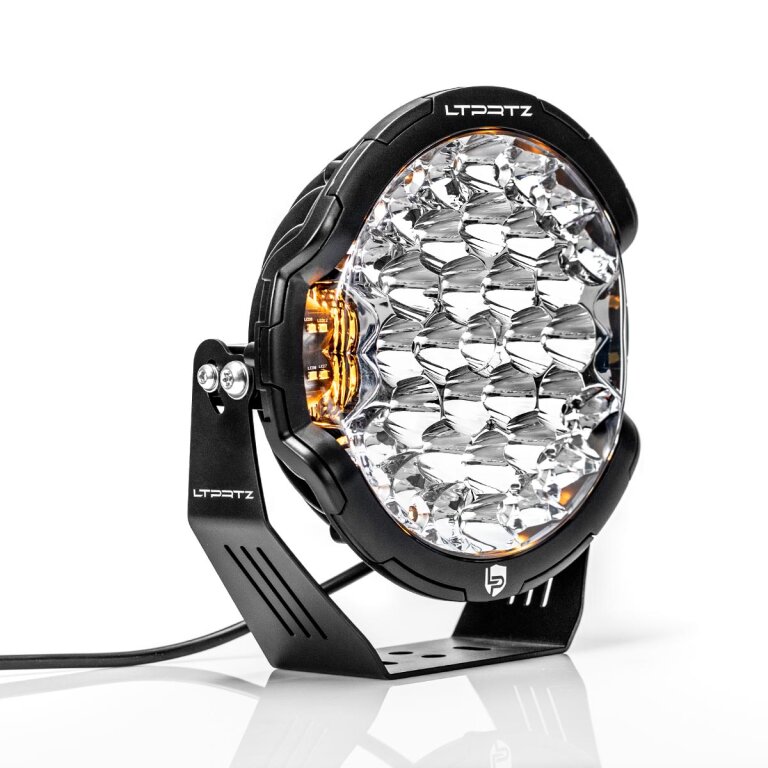

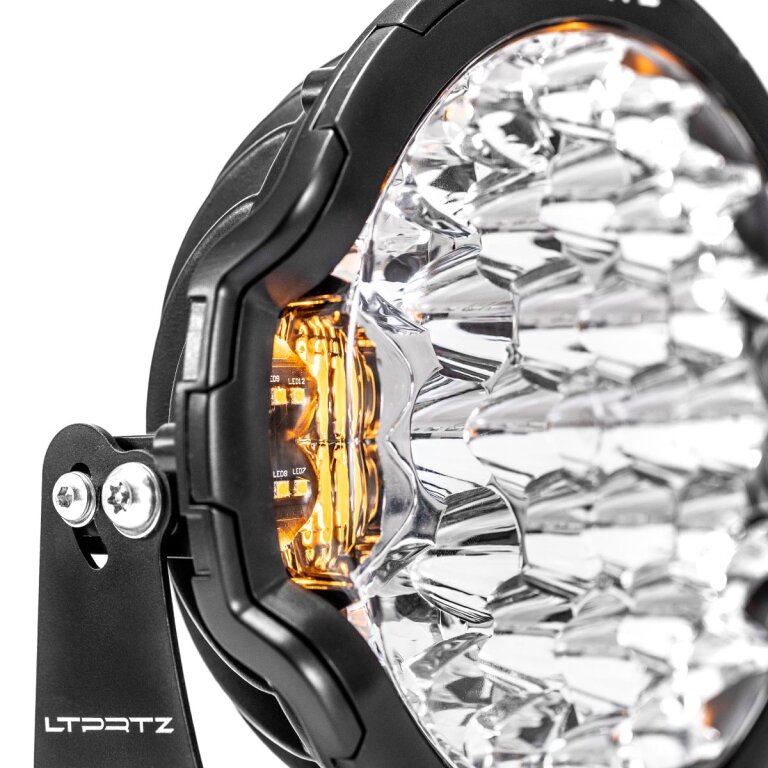

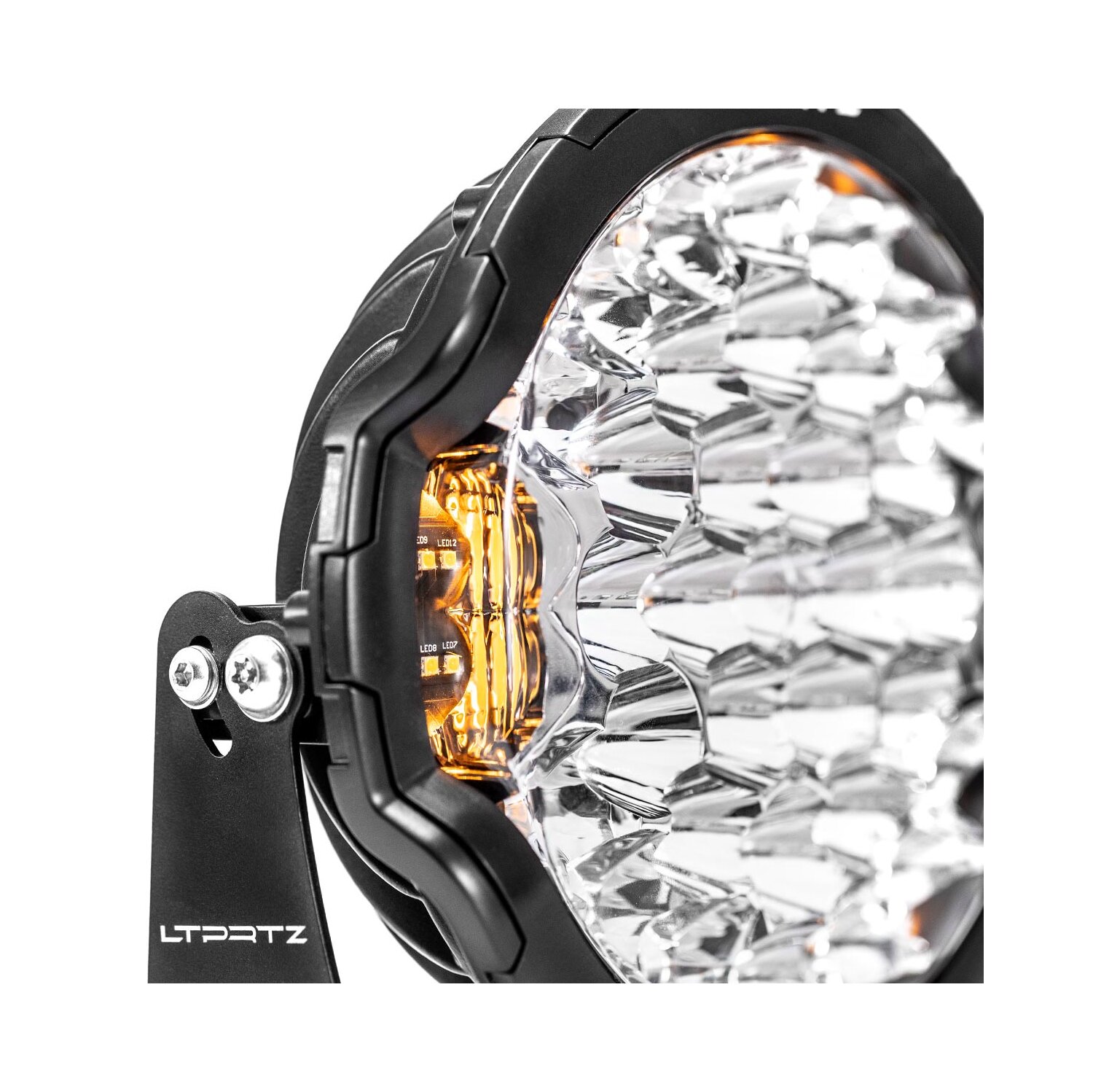

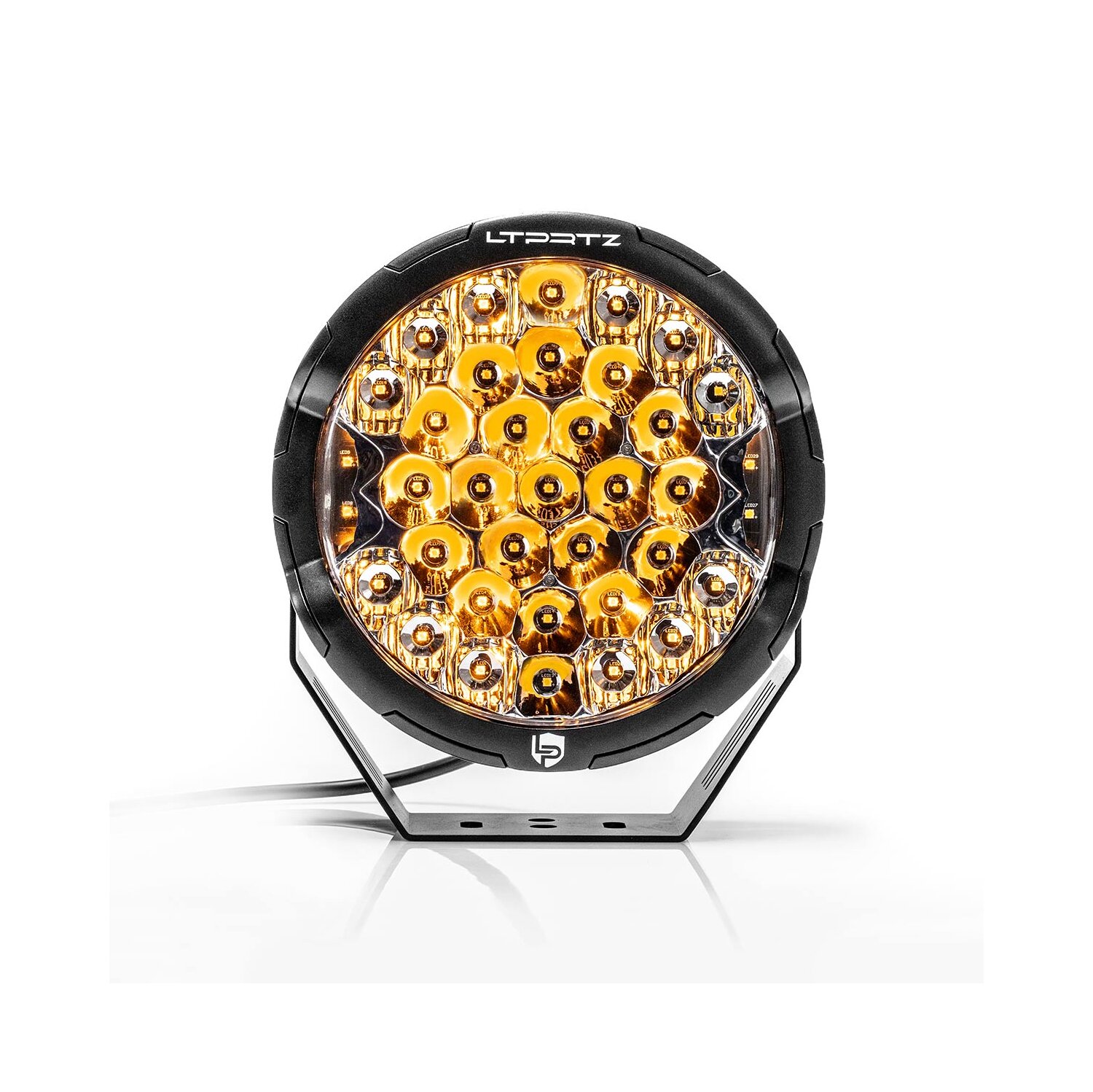

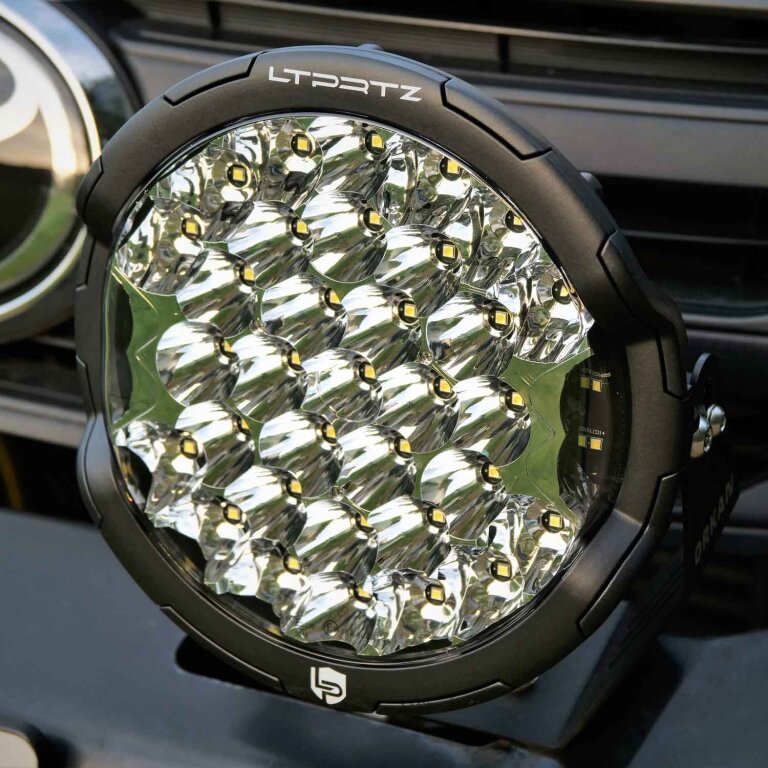

9 Inch Long-Range Spotlight ORKAN AMBER 140° ALL BLACK
Protected against:
- Incorrect polarity
- RFI/EMC interference
- Voltage and current surges
Special Features
- Shock-resistant

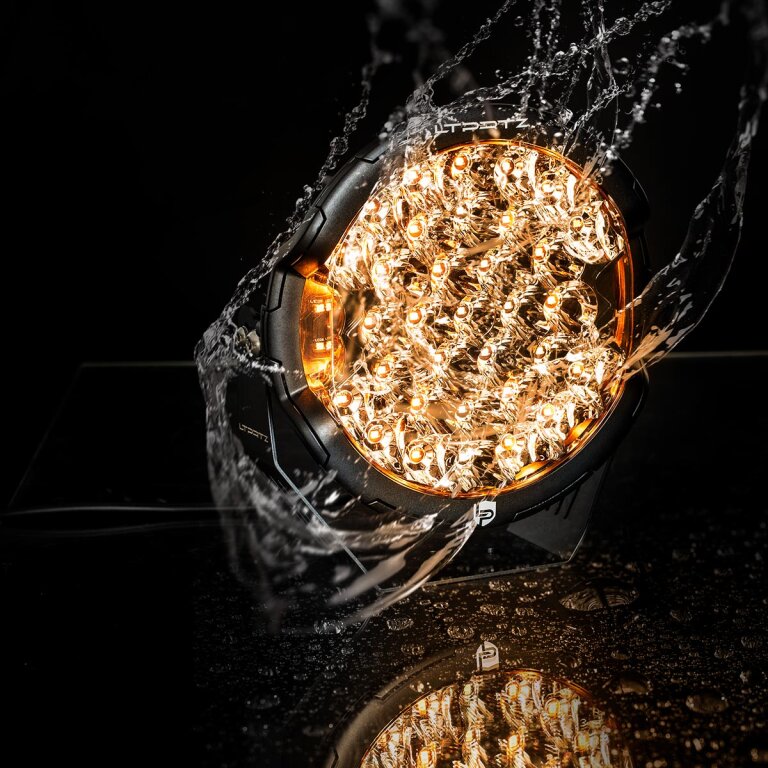

- Waterproof
- UV shielded
- Anodized polyester powder coating
- Efficient polycarbonate lens reflector
- Moisture equalizing membrane
- Operating temperature: -40° to +60°
- Certification for high beams

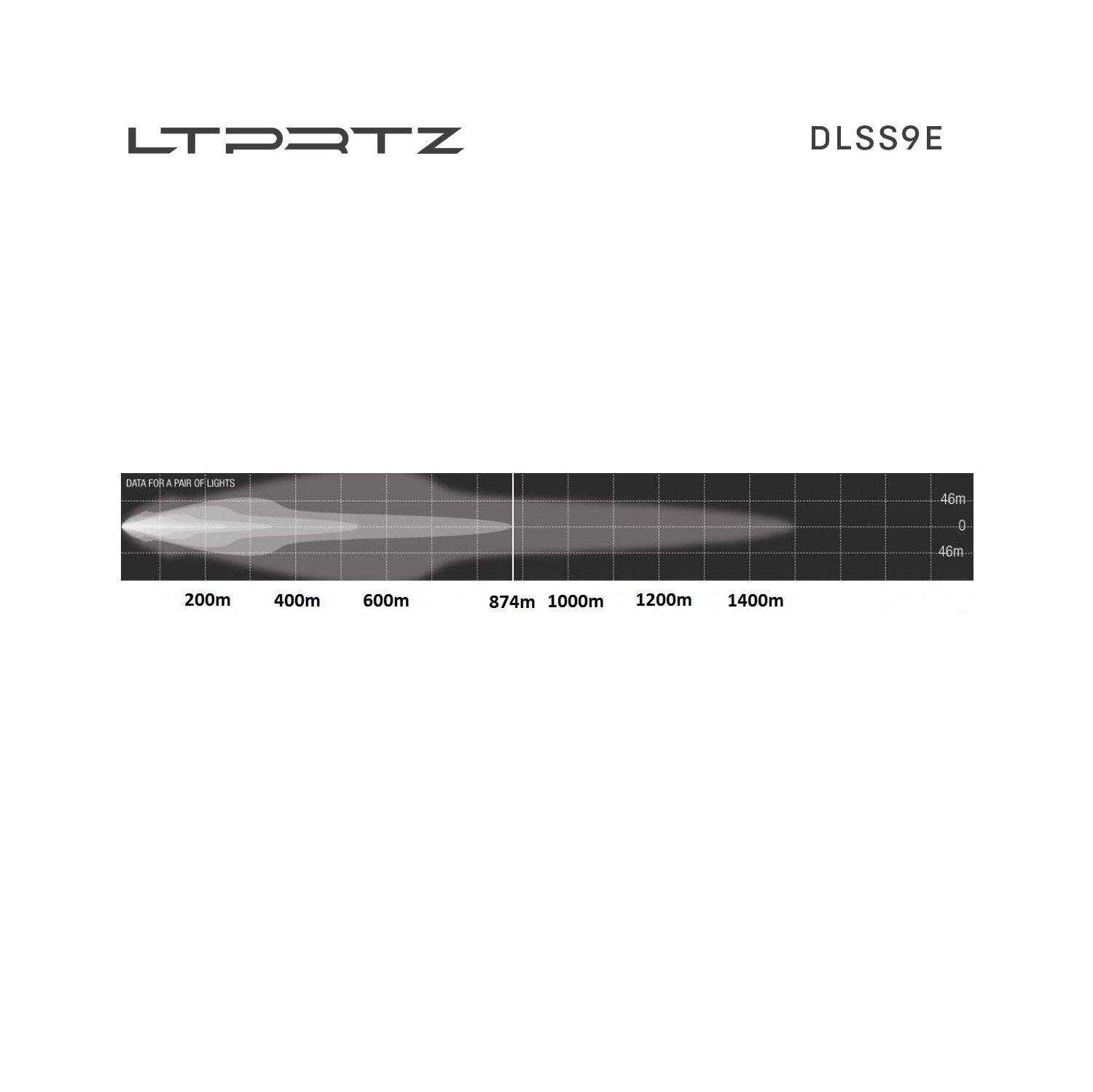

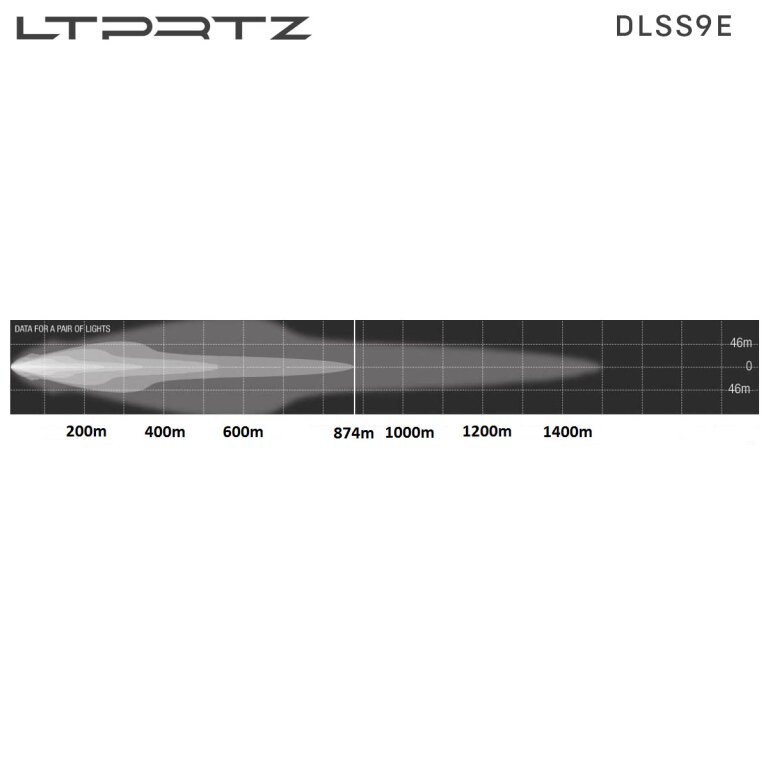

- Range: 874m (1 Lux), 1748m (0.25 Lux)
- Reference number: 30

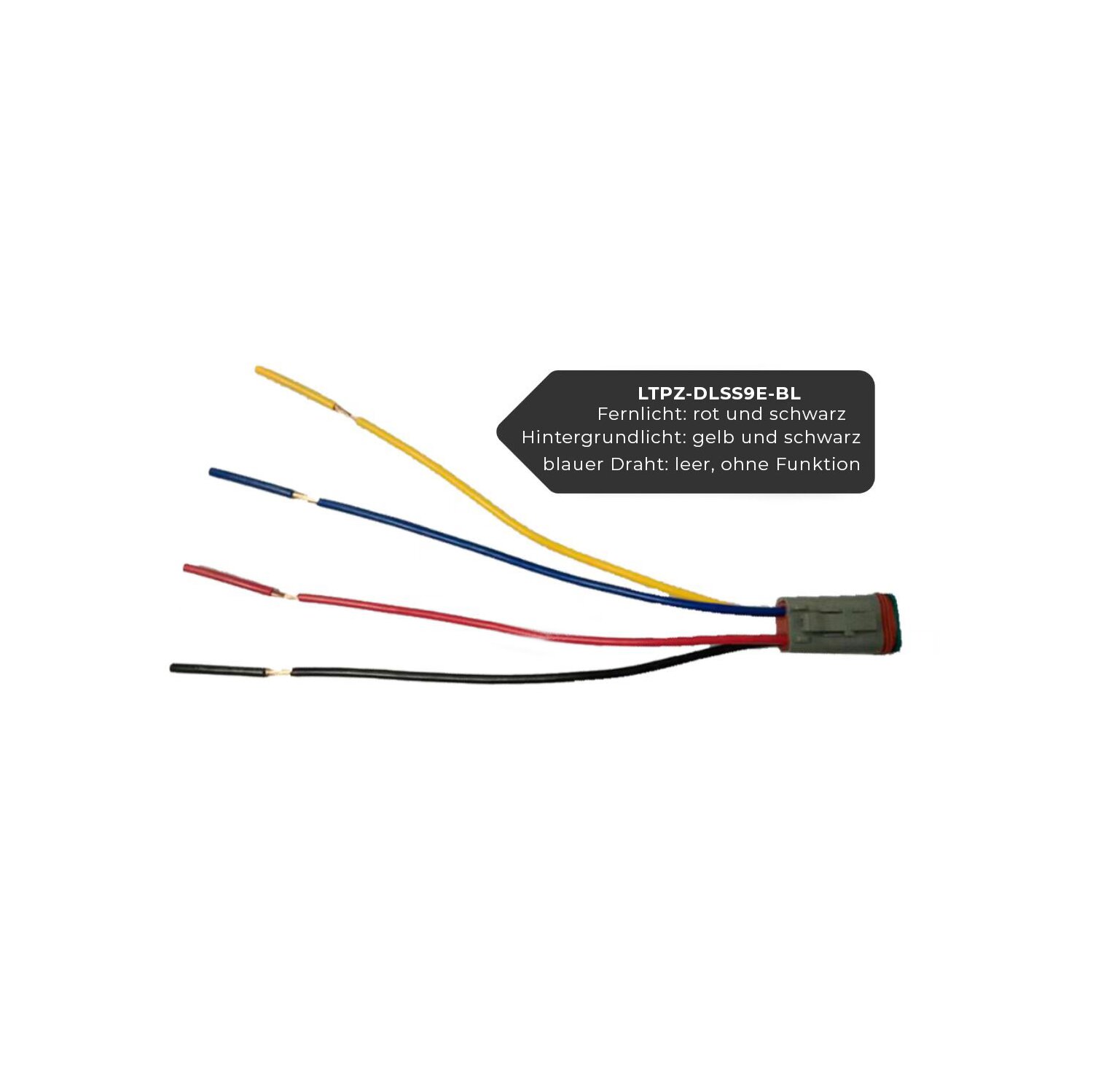

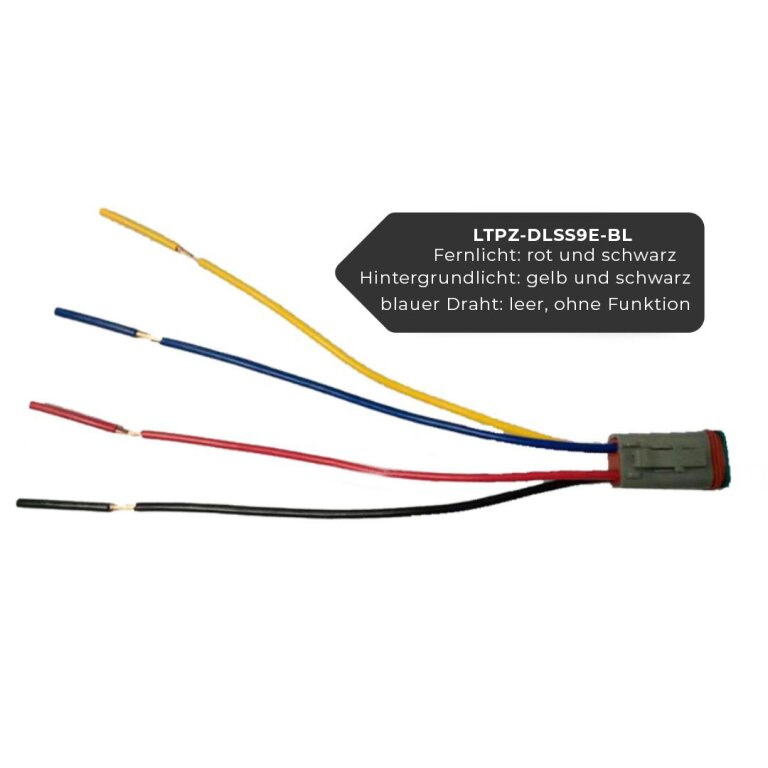

- Connection: 4-pin DT connector
Delivery Includes:
1x DLSS9E all black
1x Mounting screws with anti-theft protection
| Technical data |
|
| Input voltage |
|
9-36V |
|
| Light source |
|

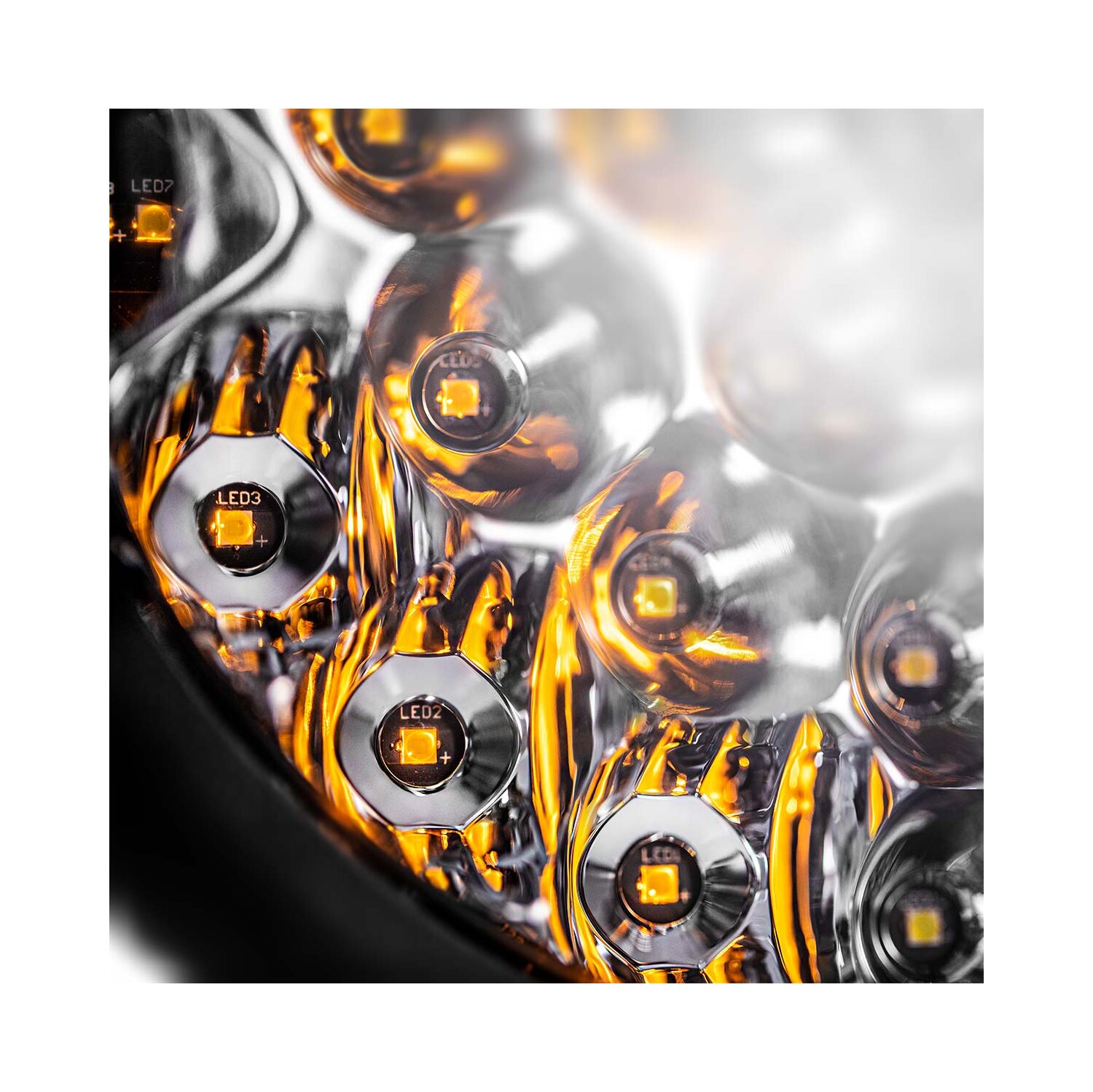

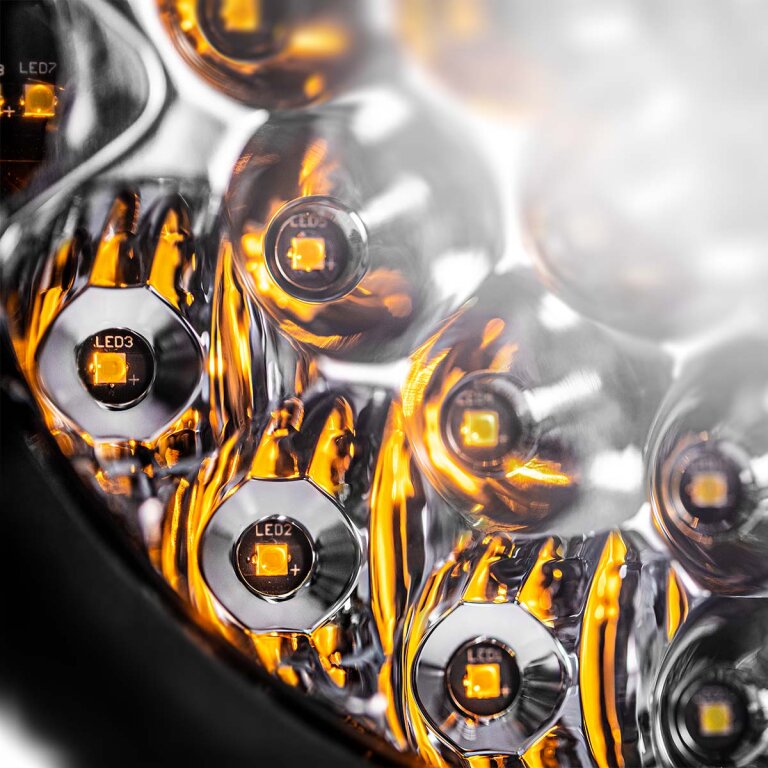

41x osram p7 5w led chips |
|
| Power consumption |
|
205w |
|
| Light output (raw/eff) |
|
11.058lm / 7,964lm |
|
| Color temperature |
|
5700-6000K |
|
| Light diffusion |
|
140° |
|
| Protection class |
|
IP68 | IP69K |
|
| Lens |
|
shatterproof polycarbonate |
|
| Housing |
|
Aluminum die casting |
|
| Mounting |
|
standing | hanging |
|
| Connection |
|
molded german plug |
|
| Weight |
|
2.5 kg |
|

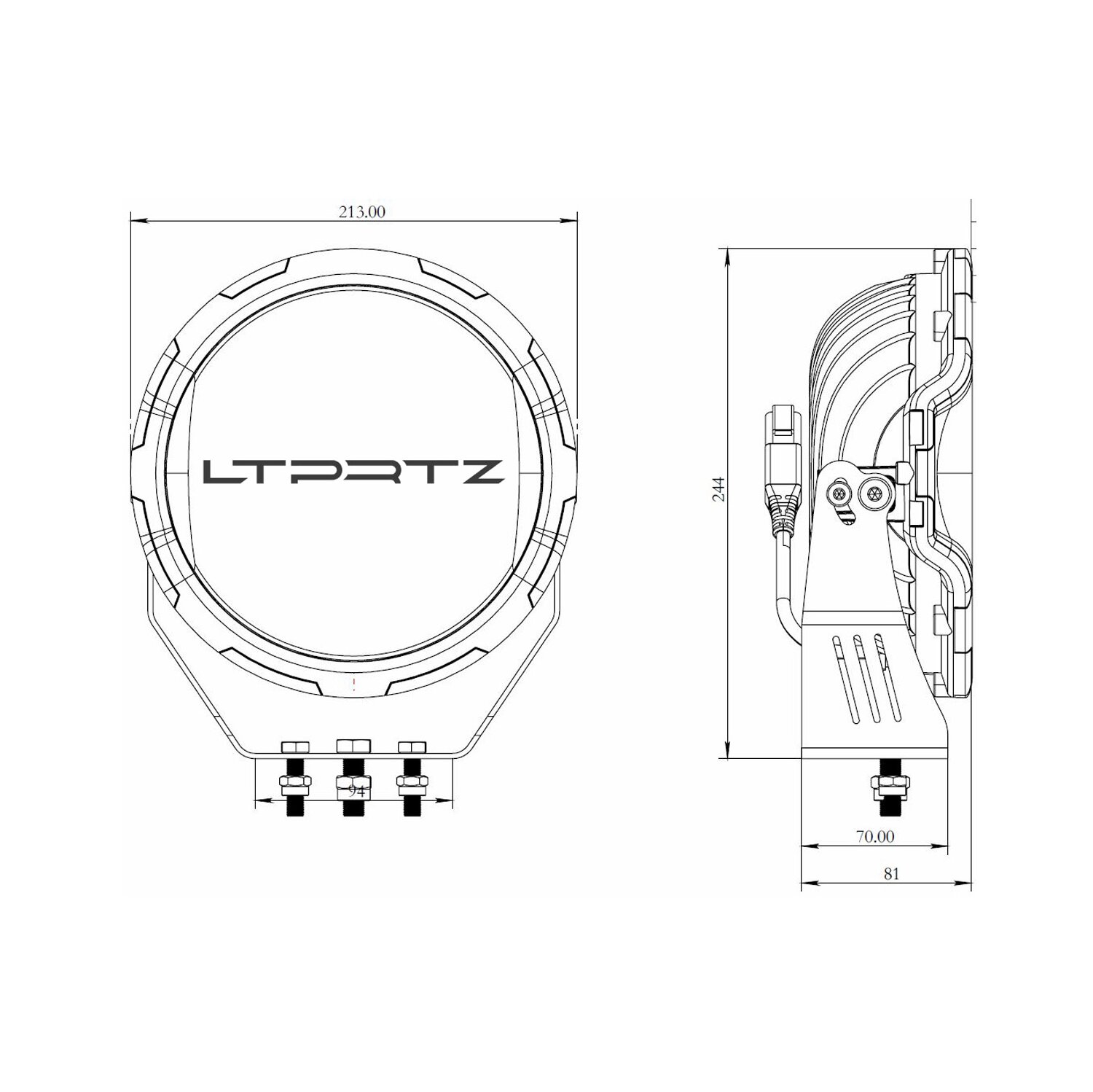

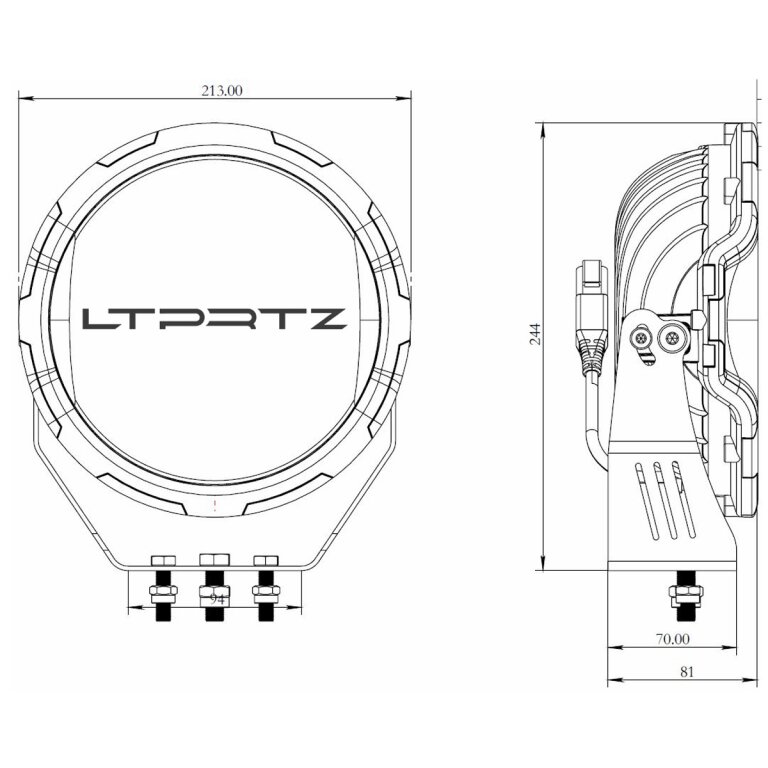

| Dimensions |
|
213.0 x 81.0 x 244.0 mm |
|
| Homologation: |
|
ECE 112R | 10R |
|
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
2,80 kg
|
| Item weight: |
2,50 kg
|
| Dimensions
( Length × Width × Height ):
|
21,30 × 8,10 × 24,40 cm |
