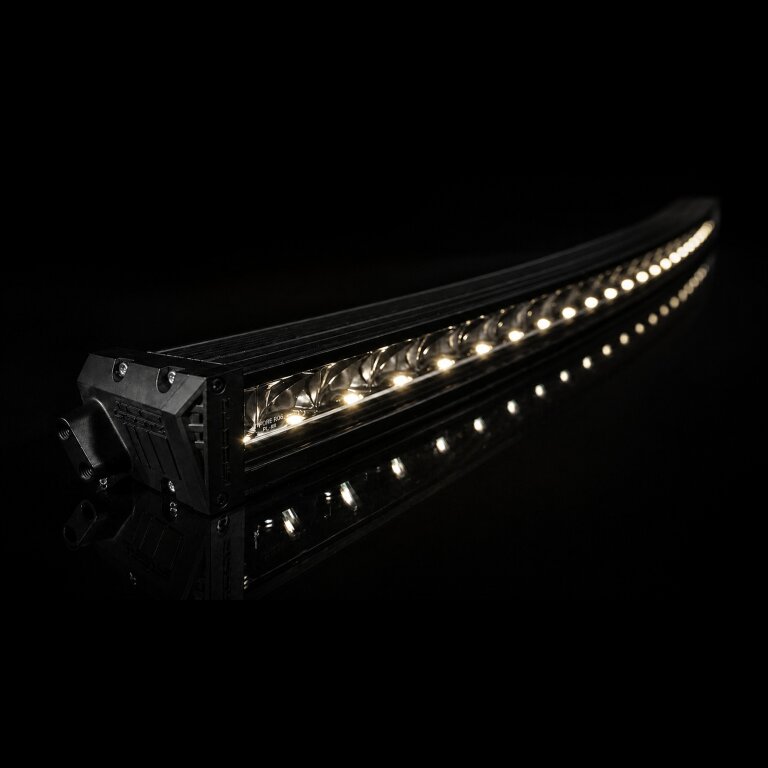

44 INCH CURVED LED LIGHTBAR · ECE-APPROVED
Built for nights when width and range both matter.
The LTPRTZ Prime-X 44 inch curved LED lightbar is built for drivers who demand maximum visibility without compromising on legality or visual impact. With its curved housing, powerful combo beam pattern and road-legal ECE R112 / R10 approval, it delivers the kind of width, depth and front-end presence that transforms a vehicle at first glance.
Wide light field. Legal performance. Strong front-end presence for road, off-road and work use.
450
m
Range at 1 lux
Built for night driving, off-road terrain and demanding work applications where early visibility and broad illumination make the difference.
When the road disappears, the PX44 opens it up again.
This 44 inch curved LED lightbar is designed to create both distance and width. Thanks to its combo beam, it combines focused reach with broad field illumination, making it ideal for fast night driving, rough terrain, overland routes and professional work environments. With 10,320 raw lumens and 450 m of range at 1 lux, it is built for drivers who want more than standard auxiliary lighting.
Curved design with a purpose.
The curved shape is not just visual drama — it also improves the effective spread of light across the vehicle’s field of view. Combined with 24 OSRAM LEDs and a neutral white 5000K color temperature, the PX44 delivers clear, usable illumination with a strong and unmistakable front-end signature. It looks serious, and it performs like it.
Key highlights at a glance
The PX44 combines high-output lighting, road legality, strong material quality and a distinctive curved lightbar design into one setup built for demanding users and serious vehicles.
10,320lm
Raw lumen output
Powerful light output for maximum visibility in night driving and off-road conditions.
450m
1 lux range
Early obstacle detection and more reaction time when speed and terrain demand confidence.
COMBO
Beam pattern
Balanced combination of spot and flood beam for both distance and wide-area illumination.
R112
ECE approval
Road-legal as a driving light with additional R10 EMC approval.
IP69K
Protection rating
Ready for rain, dust, hard off-road use and high-pressure cleaning.
24xOSRAM
LED setup
High-quality LED foundation for strong, reliable and consistent illumination.
Engineering & substance
Built for real work in real conditions.
Mud, rain, vibration and hard cleaning cycles are part of everyday use for a serious lightbar. That is exactly what the PX44 is built for. Its aluminum housing, durable polycarbonate lens and reflector and uncoated stainless steel brackets provide the kind of ruggedness required for off-road vehicles, work trucks and overland setups. With IP69K protection and road-legal approval, it brings together durability, safety and serious output.
ECE R112 · R10
IP69K
24x OSRAM
Curved combo beam
| Type |
LED lightbar, driving light (combo) |
| Approval |
ECE R112 & R10 |
| Raw lumens |
10,320 lm |
| Range |
450 m (1 lux) |
| LEDs |
24x OSRAM |
| Color temperature |
5000 K |
| Voltage |
12 V |
| Theoretical power draw |
73 W x 2 |
| Effective current draw |
5.2 A |
| Protection rating |
IP69K |
| Housing |
Aluminum |
| Lens & reflector |
Polycarbonate |
| Bracket |
Stainless steel, uncoated |
| Connection |
Open wire ends (red/black) |
| Dimensions |
1106 x 114 x 58 mm |
| Weight |
3.6 kg |
Note: We recommend that you take the vehicle to a specialist workshop for connection and Installation.
10,320 lumens. 450 meters. No half measures.
LTPRTZ · Prime-X 44 inch · Curved LED lightbar · ECE R112 / R10
ltprtz.com
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
| Item information |
Value |
| Shipping weight: |
4,50 kg
|
| Item weight: |
3,75 kg
|
| Dimensions
( Length ):
|
117,00 cm |
