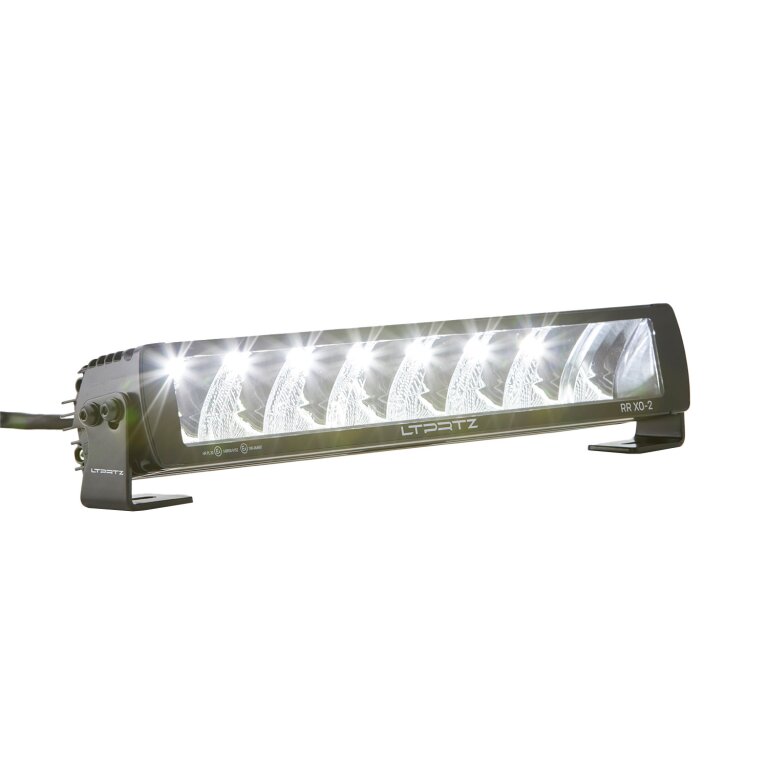

REAPER 20 Inch High Beam Light
This compact high beam light reaches a range of almost 640 m in power mode.
Switch to on-road mode and use the paired mounted Reaper Lightbar compliant with road traffic regulations in addition to your vehicle's normal high beam. No registration required thanks to ECE approval.
Technical Information:
-
Voltage Range: 9-36V
-
Current Consumption (A) for High Beam at 13.2V (or 12V):
Full Power: 9.47A @12V
R112 (Ref. 30) Power: 2.0A@12V
-
Power for High Beam at 13.2V (or 12V):
Full Power: 113.64W @12V
R112 (Ref. 30) Power: 24.0W@12V
-
LED Type: Domestic: 5520
-
Theoretical Lumen at 13.2V (or 12V):
Full Power: 4,200LM
R112 (Ref. 30) Power: 1,390LM
-
Color Temperature for High Beam: 5500-6500K
-
Range (1 Lux) at 13.2V (or 12V):
Full Power: 640m
R112 (Ref. 30): 350m
-
Candela at 13.2V (or 12V):
Full Power: 409,600
R112 (Ref. 30): 133,000
-
Cable Length: 55cm
-
Connector: DTP
-
Ingress Protection: IP68
-
Dimensions: 549x81x87mm
-
Homologation: ECE R112 Ref. 30 | ECE R10
Delivery Scope:
- 1x REAPER 20 Inch High Beam Lightbar
- Mounting kit including:
2x Rear adjustable brackets
2x Side adjustable brackets
Wiring Diagram:
DT 4-Pin Connector. The corresponding plug is included:
- Phase 1: Ground -
- Phase 2: Background White +
- Phase 4: High Beam +
- Phase 5: ECE Mode (blue separate wire)
