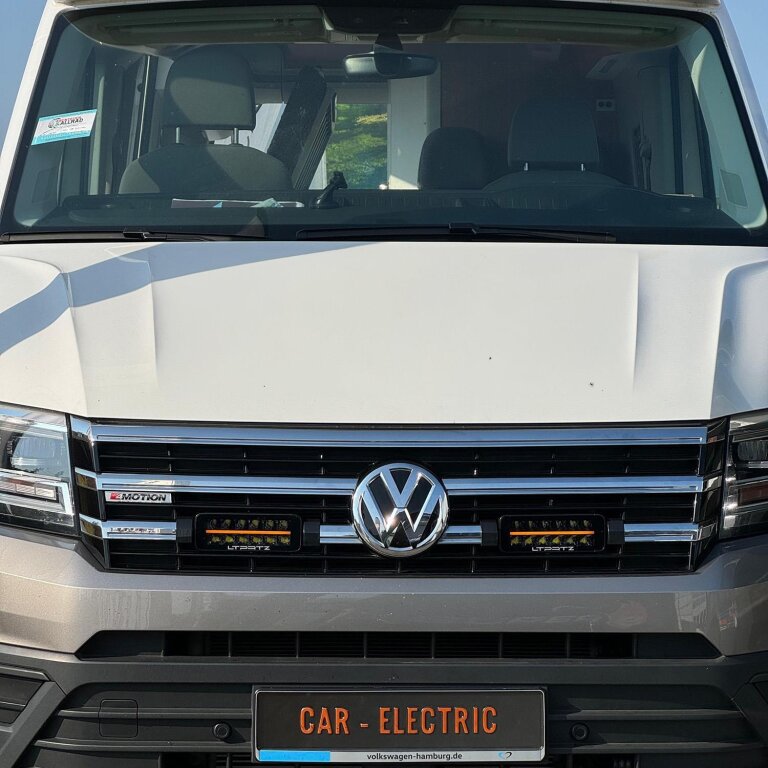

With the help of the detailed installation manual, you can install your headlights in the grille of your vehicle yourself.
Mounts:
- High-quality and stable mounts made of 3D-printed ABS
- Paintable in your desired color
- UV- and weather-resistant
- Fits only for VW Crafter Gen. 2 / Grand California
- Package includes: four mounts for two headlights
- Mounts are equipped with long holes to align the headlights.
Headlights:
- 3rd generation of our popular TRX series
- With position light strips in white (with E-approval)
- With off-road boost mode function. The boost mode can be activated off public roads.
- The new anti-glare reflectors combine focused spot and wide-spreading flood elements for a homogeneous illumination of the entire field of view.
- With 360° side mounts and movable sliding feet on the back of the housing
- Comes complete with mounting material and DT plug and connector
- Unique stealth design without screws on the front
- Application area: public roads
Technical Data:
- High beam power: R149: 22.8W | Boost mode: 47.6W
- Position light power: R148: 6W
- Operating voltage: 10-30 V
- Protection class: IP 67
- LED chips: 12 pieces x 5W
- Luminous flux (effective): 1,540 lm | Boost mode: 3,238 lm
- Housing color: black
- Color temperature: 5800K
- Material: extruded aluminum housing
- Lens material: polycarbonate
- Mounting: sturdy aluminum bracket
- Light dispersion: spot 10°
- Range: 658 m (0.25 Lx), 329 m (1 Lx)
- Homologation: ECE R149 | R10
- Reference number: 25
- Dimensions L x W x H (housing): 20.36 x 6.71 x 7.0 cm
Wiring Harness:
Relay wiring kit for two high-performance LED lights with 4-pin DT connector
- Fits only for headlights LP-TRX3-7E
- Includes two toggle switches or optional connection to the Can Bus high beam control
- Toggle switch 1 for switching the high beam (a separate measurement line must be run from the dashboard for illuminating the switch)
- Toggle switch 2 for switching the position light
- Connectors for connecting the switches included
- Crimp connectors for extending the wires included
- 40A high-performance relay and fuse socket with 30 A plug fuse
- Wire length: 3 m
- 2x Deutsch 4-pin connectors
- Battery - and + ring terminals for M8
Delivery Contents:
- 2x TRX 3.0 7 inch
- 4x ABS Mounts
- 1x Wiring harness
