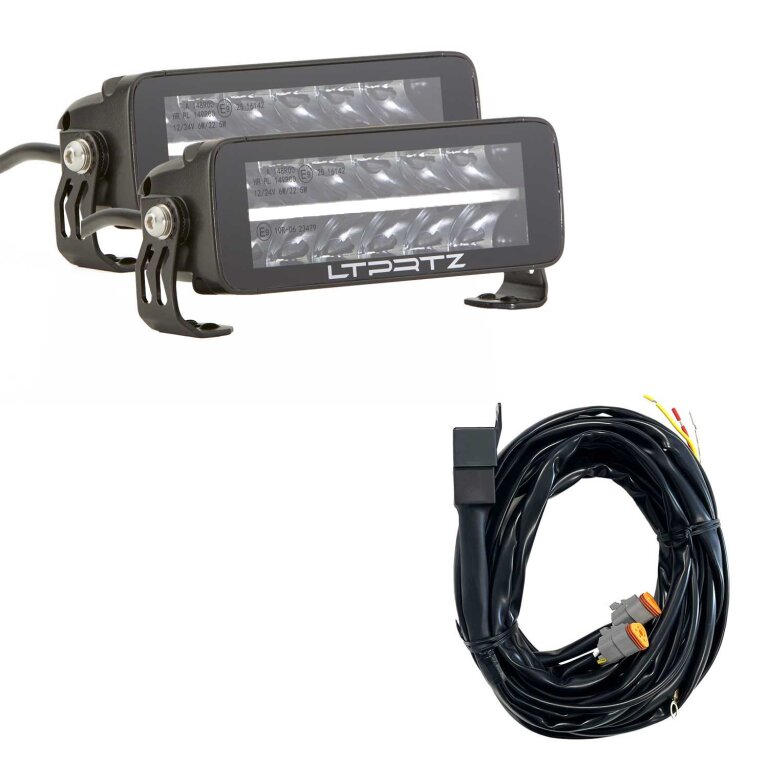

TRX 3.0 – The Next Evolution in Vehicle Lighting
The TRX 3.0 series stands for uncompromising performance, innovative technology, and striking design:
✅ ECE R149 high beam & ECE R148 position light (white) – street legal
✅ ECE R10 certified – electromagnetic compatibility for modern vehicle electronics
✅ Anti-glare reflectors – uniform illumination with combined spot/flood beam pattern
✅ Range: up to 658 m (0.25 lx) / 329 m (1 lx)
✅ Modern design with no visible front screws
💡 Note: The Boost Mode is for off-road use only and must not be used on public roads. For more information, see our info sheet.
Technical Specifications (per light):
- High beam power: 22.8W (street mode) / 47.6W (boost mode)
- Position light (white): 6W
- Luminous output: 1,540 lm (effective) / 3,238 lm (boost)
- LEDs: 12 x 5W high-power chips
- Color temperature: 5,800K
- Voltage: 10–30V
- Reference number: 25
- Beam pattern: Spot 10°
- Housing: black, extruded aluminum
- Lens: polycarbonate
- Mounting: 360° side brackets & adjustable sliding feet
- Dimensions (L x D x H): 203.6 x 67.1 x 70 mm
- Protection class: IP67
- Connector: DT 4-pin socket
Matching Wiring Harness – Control at the Push of a Button
Specifically designed for the TRX 3.0 (LP-TRX3-7E) – plug & play for maximum control:
- 2x rocker switches:
- Switch 1: high beam control
- Switch 2: toggle between white position light and BOOST mode
- Optional CAN bus compatibility
- Relay & fuse holder: 40A high-performance + 30A blade fuse
- Cable length: 3 meters
- Connections: 2x 4-pin Deutsch connectors + M8 ring terminals
- Accessories: connectors, crimp terminals, and mounting materials included
- Max. power: 10A
With the TRX 3.0 7 inch value set, you get a high-performance, ECE-compliant complete package with impressive light output for both on-road and off-road use. Perfect for anyone seeking a rugged, stylish, and versatile lighting solution – without compromising on technology or design.
