LTPRTZ LP-WH44 wiring harness · only for LP-TRX3-7E and LP-RRDL9E-BL
The matching harness for your TRX 3.0 or REAPER setup.
The LTPRTZ LP-WH44 wiring harness for two auxiliary lights with 4-pin DT plugs is specifically designed for the LP-TRX3-7E and LP-RRDL9E-BL light models. It connects two compatible LED auxiliary lights cleanly with relay, fuse and switches – for a structured, protected and installation-friendly lighting setup.
Model-specific for selected LTPRTZ lights. Clean connection. Clear control.
LP-WH44 only for LP-TRX3-7E & LP-RRDL9E-BL
Developed for connecting two compatible LED auxiliary lights with high beam, position light and amber function.
When the light fits, the wiring harness needs to fit too.
Modern LED auxiliary lights with multiple lighting functions need clean and well-planned wiring. This relay wiring harness with 4-pin DT connectors is built exactly for that purpose – but exclusively for the compatible LTPRTZ models LP-TRX3-7E and LP-RRDL9E-BL.

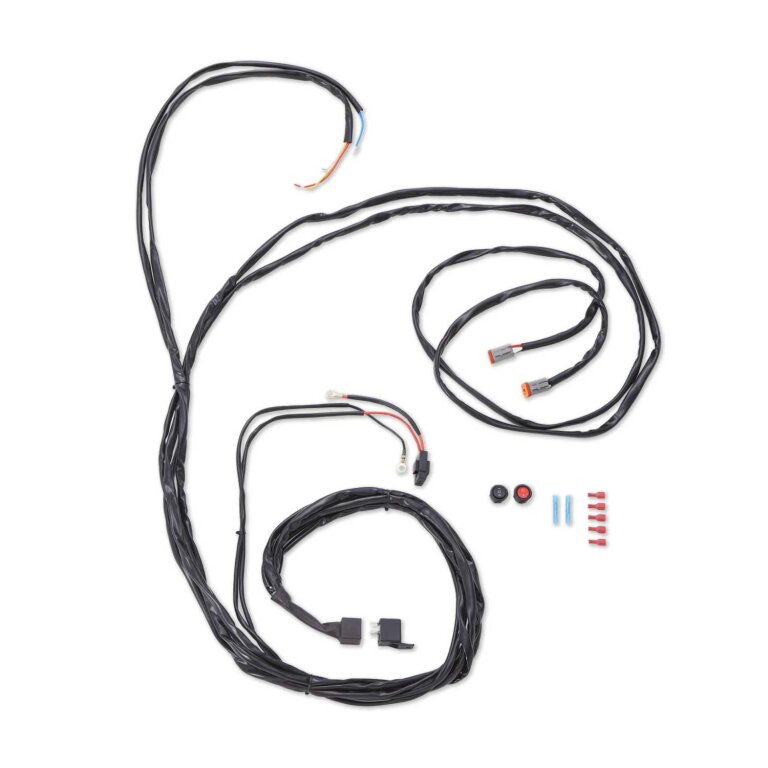

The harness includes the required components to connect two matching lights in a clear and structured way: 4-pin DT plugs, relay, fuse, toggle switches, connectors, crimp connectors and ring terminals for battery connection.
For high beam and position light and amber function.
The wiring harness is designed for lights with multiple lighting functions. One toggle switch controls the high beam, while a second toggle switch can be used for white position light or the amber function.
This creates a clear operating logic inside the vehicle – ideal for offroad builds, pick-ups, campers, vans and work vehicles with compatible LTPRTZ auxiliary lights.
Key advantages at a glance
The LP-WH44 is the right solution when two compatible auxiliary lights need to be connected cleanly, safely and with full control.
2× 4-pin DT
Two DT plugs for connecting two compatible LED auxiliary lights.
Relay & fuse
With 40A high-performance relay and fuse holder with 30A blade fuse.
2 toggle switches
For separate control of high beam as well as position light or amber function.
Model-specific
Only suitable for LP-TRX3-7E and LP-RRDL9E-BL – please check before ordering.
Clean battery connection and protected installation.
The harness includes battery positive and negative ring terminals for M8 connections. This allows the power supply to be set up clearly and directly. The 40A relay and 30A blade fuse support a protected installation.
The cable length of approx. 3 metres provides a practical basis for many installation situations in the engine bay, front area or compact offroad and camper setups.
With switches or optional CAN bus control.
The LP-WH44 can be used with the included toggle switches or optionally in combination with a suitable CAN bus high beam control unit. This allows the lighting setup to be configured flexibly depending on the vehicle and installation concept.
Depending on the installation, a separate ground wire from the dashboard may be required for switch illumination. Electrical installation should be carried out professionally and in line with the vehicle configuration.
Technical data & scope of delivery
The key specifications of the LTPRTZ LP-WH44 wiring harness for two compatible auxiliary lights.
Item numberLP-WH44
Product typeRelay wiring harness for 2 LED auxiliary lights
Compatible withLP-TRX3-7E and LP-RRDL9E-BL
Connectors2× 4-pin DT plugs
Cable lengthApprox. 2 m
Relay40A high-performance relay
Fuse30A blade fuse with fuse holder
Switches2 toggle switches included
Battery connectionPositive and negative ring terminals for M8
Maximum power10A
IncludedConnectors and crimp connectors
24V operationMatching 24V relay must be ordered separately
Important compatibility note: This wiring harness is only suitable for the LP-TRX3-7E and LP-RRDL9E-BL lights. Please check compatibility before installation. For 24V operation, a suitable 24V relay is required.
For a lighting setup that actually fits together.
The LTPRTZ LP-WH44 wiring harness is the right choice when two compatible auxiliary lights need to be integrated into the vehicle in a clean, protected and controlled way – specifically for LP-TRX3-7E and LP-RRDL9E-BL.
