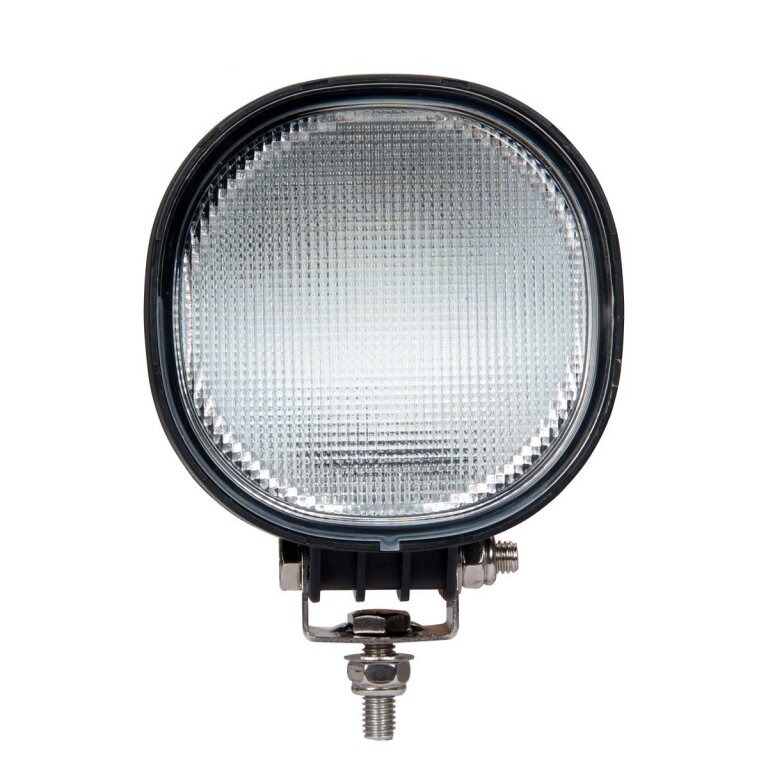

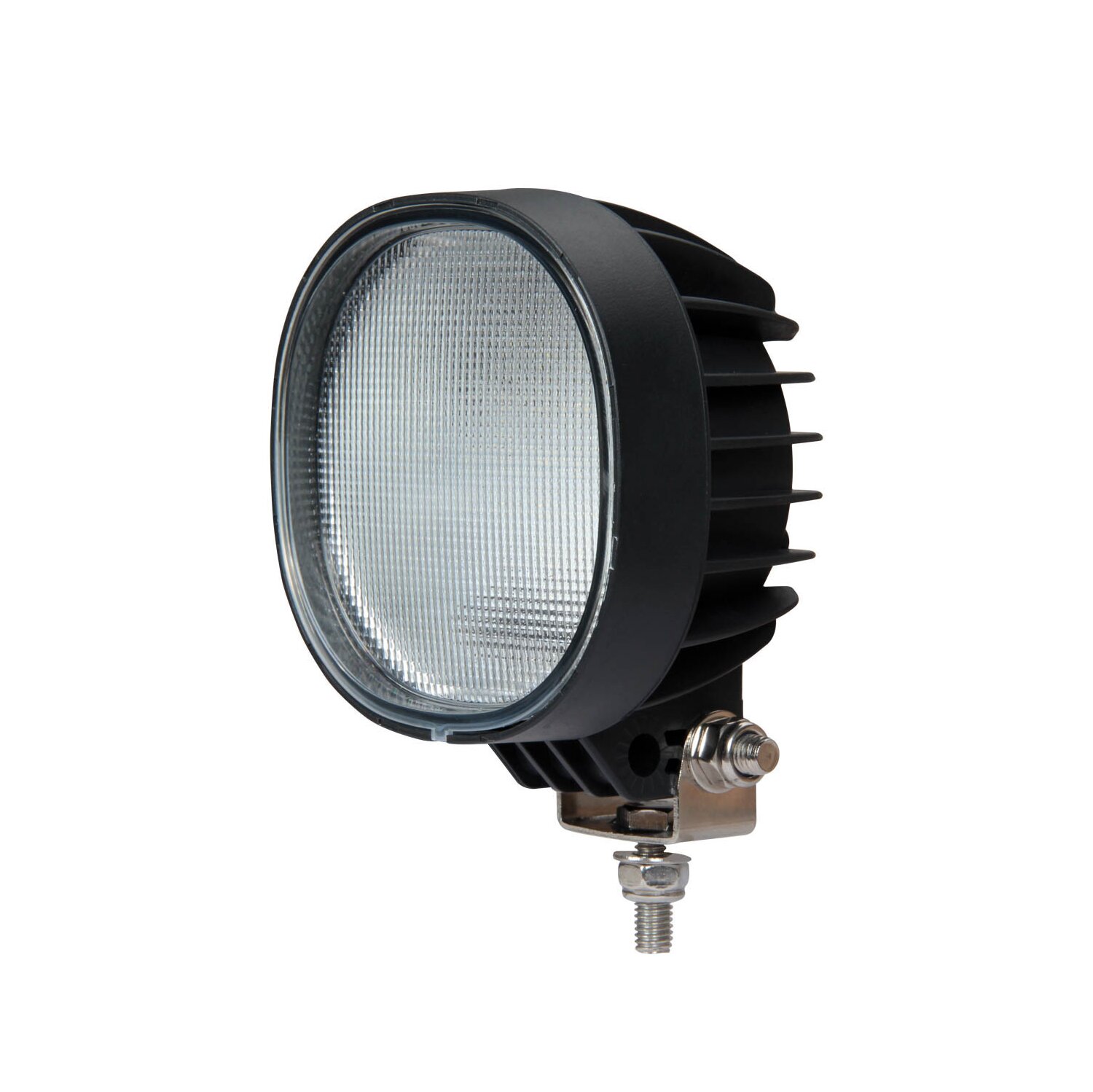

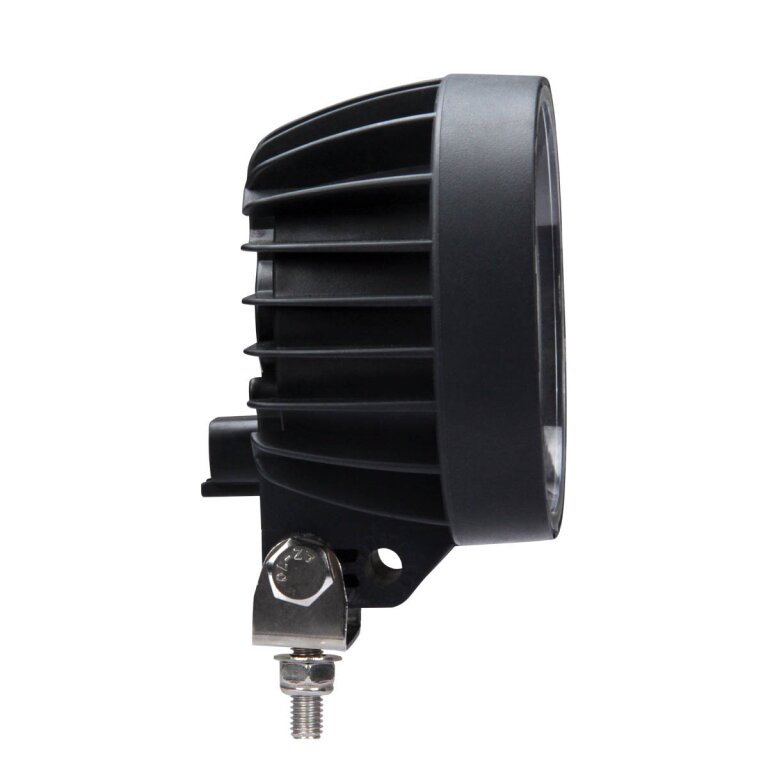

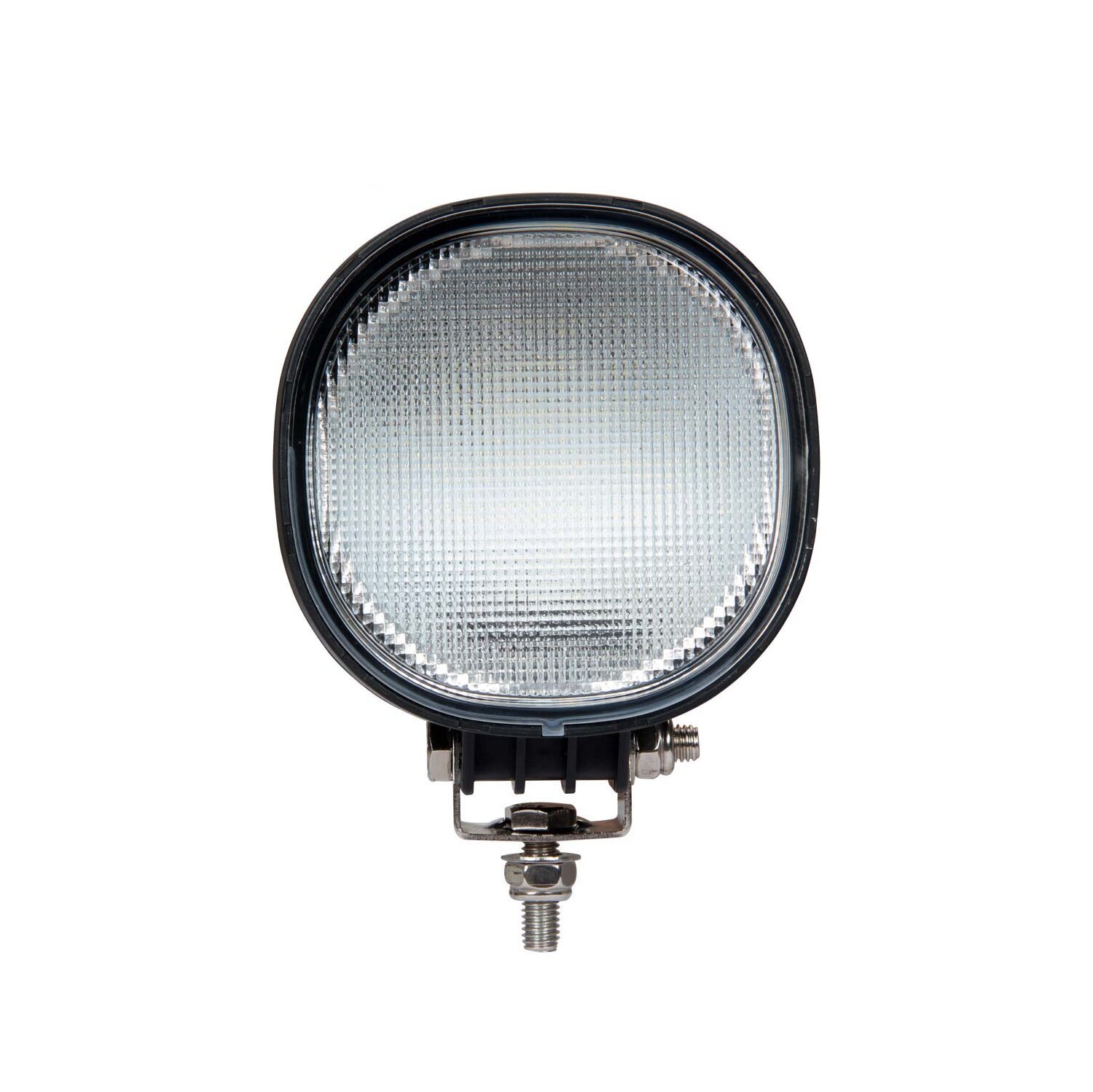

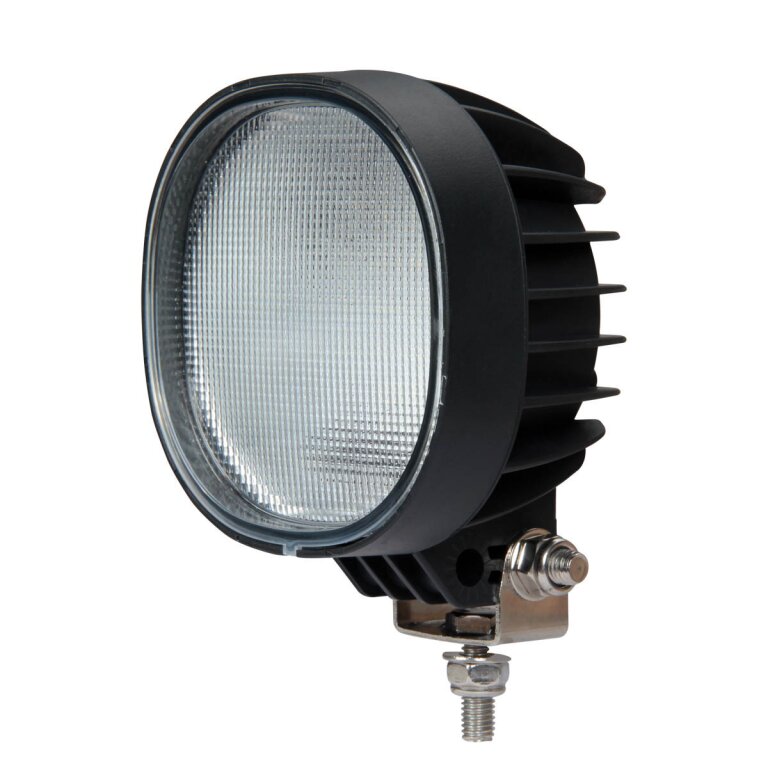

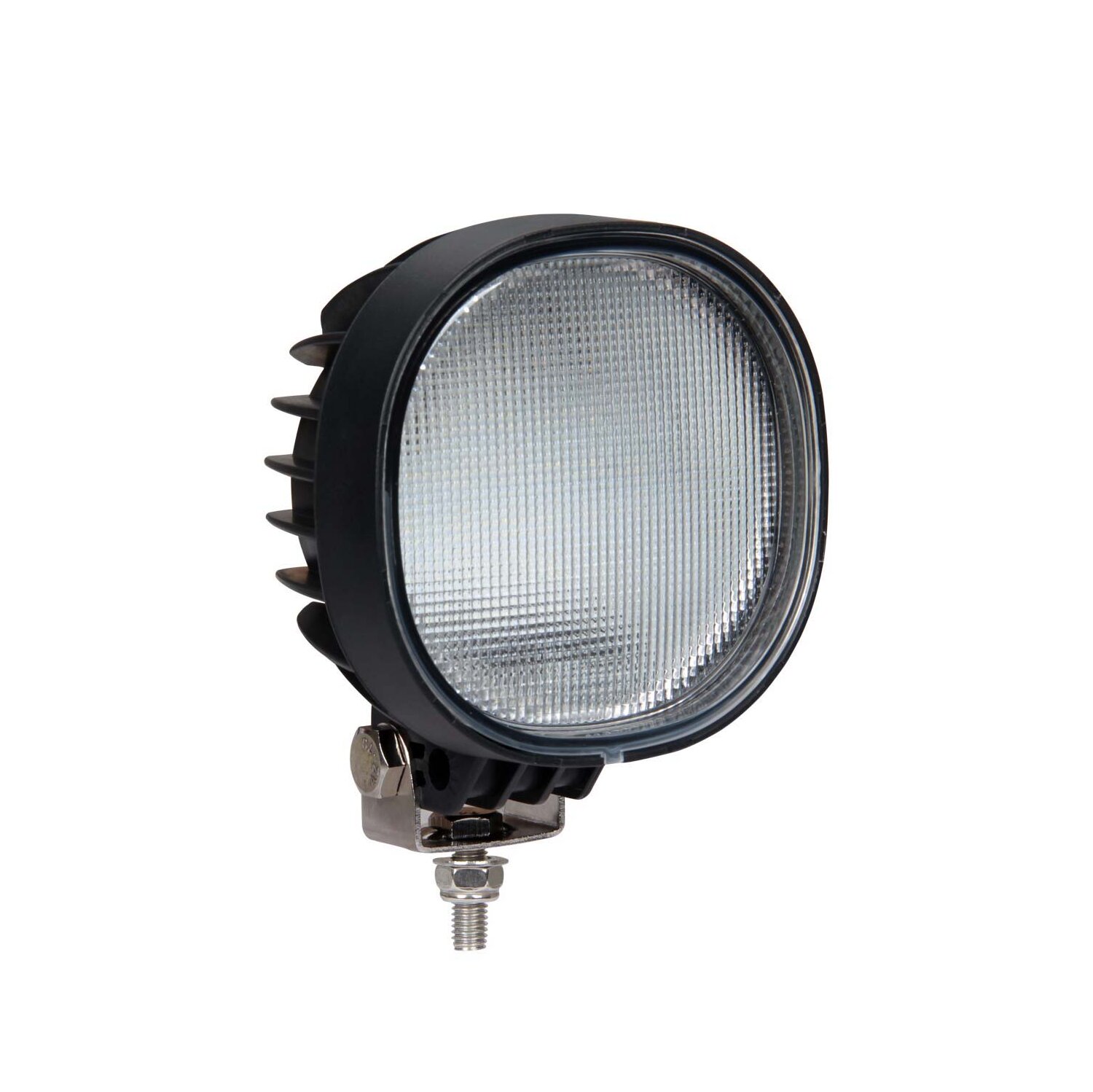

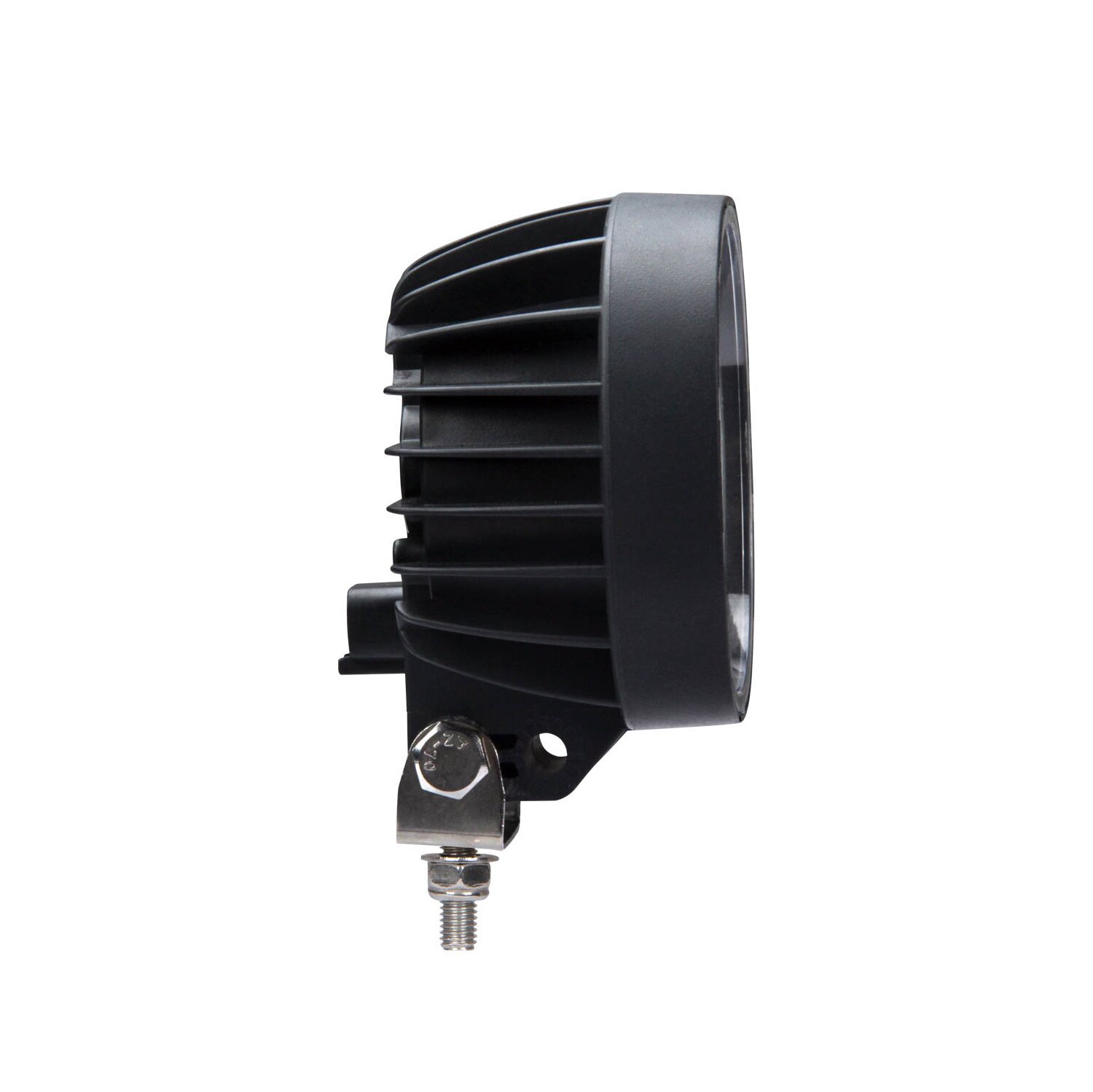

Worklight GwL01-D
15w Graphene Ultralight diffuse
Protected against:
- Reverse polarity
- RFI/EMV interference
- Voltage and current surges
Special features
- shockproof
- waterproof
- UV shielded
- efficient anti-UV PC lens covestro 2407
- Ambient temperature: -40° - +50°
- Certification for electromagnetic compatibility (ece r10, cispr 25 class 5)

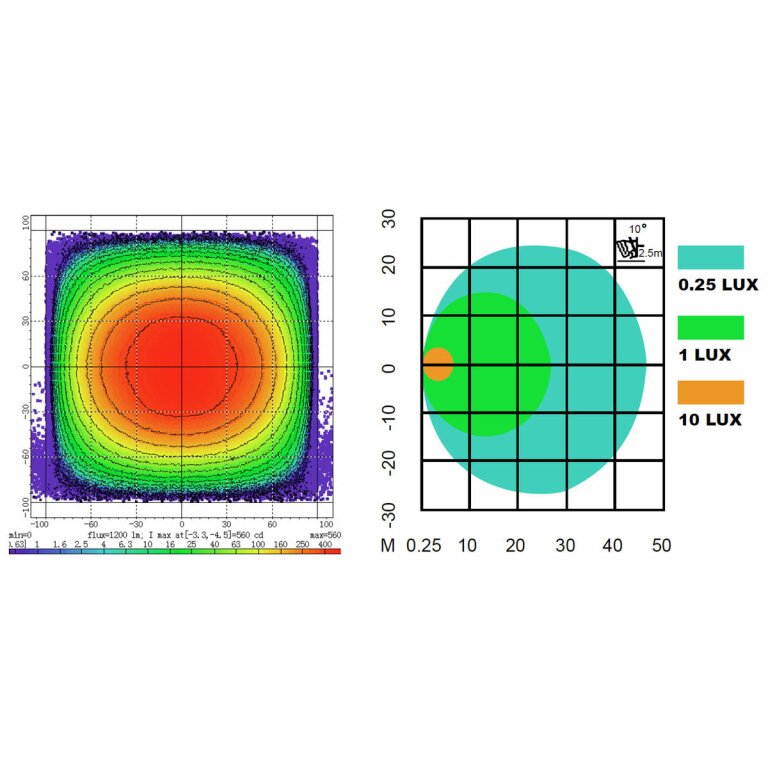

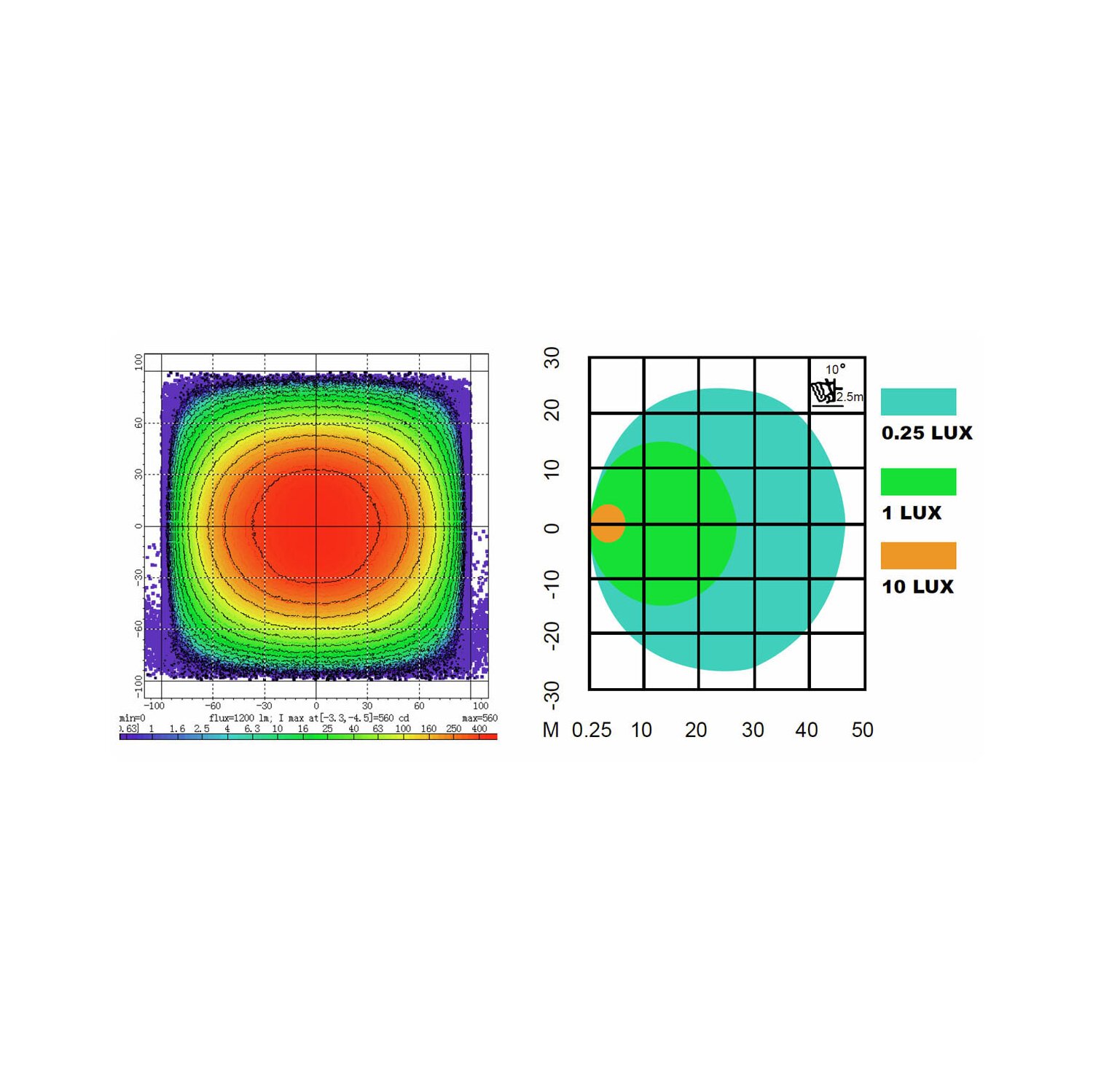

- Range: 26m (1 Lux)
Scope of delivery:
- 1x Graphene Ultralight GwL01-D worklight
- 1x stainless steel fixing screws 304sus (M8)
| Technical data |
|
| Input voltage |
|
10-30V |
|
| Light source |
|
30x 0.5 w smd chips |
|
| Power consumption |
|
14.5w | 12v: 1.21a / 24v: 0.59A |
|
| Light output (raw/eff) |
|
2.300lm/ 1,218lm |
|
| Light diffusion |
|
diffuse close range |
|
| Color temperature |
|
6000-6500K white |
|
| Protection class |
|
IP67, IP6K9K |
|
| Lens |
|
shatterproof polycarbonate |
|
| Housing |
|
Graphene + PA66 |
|
| Mounting |
|
standing |hanging |
|

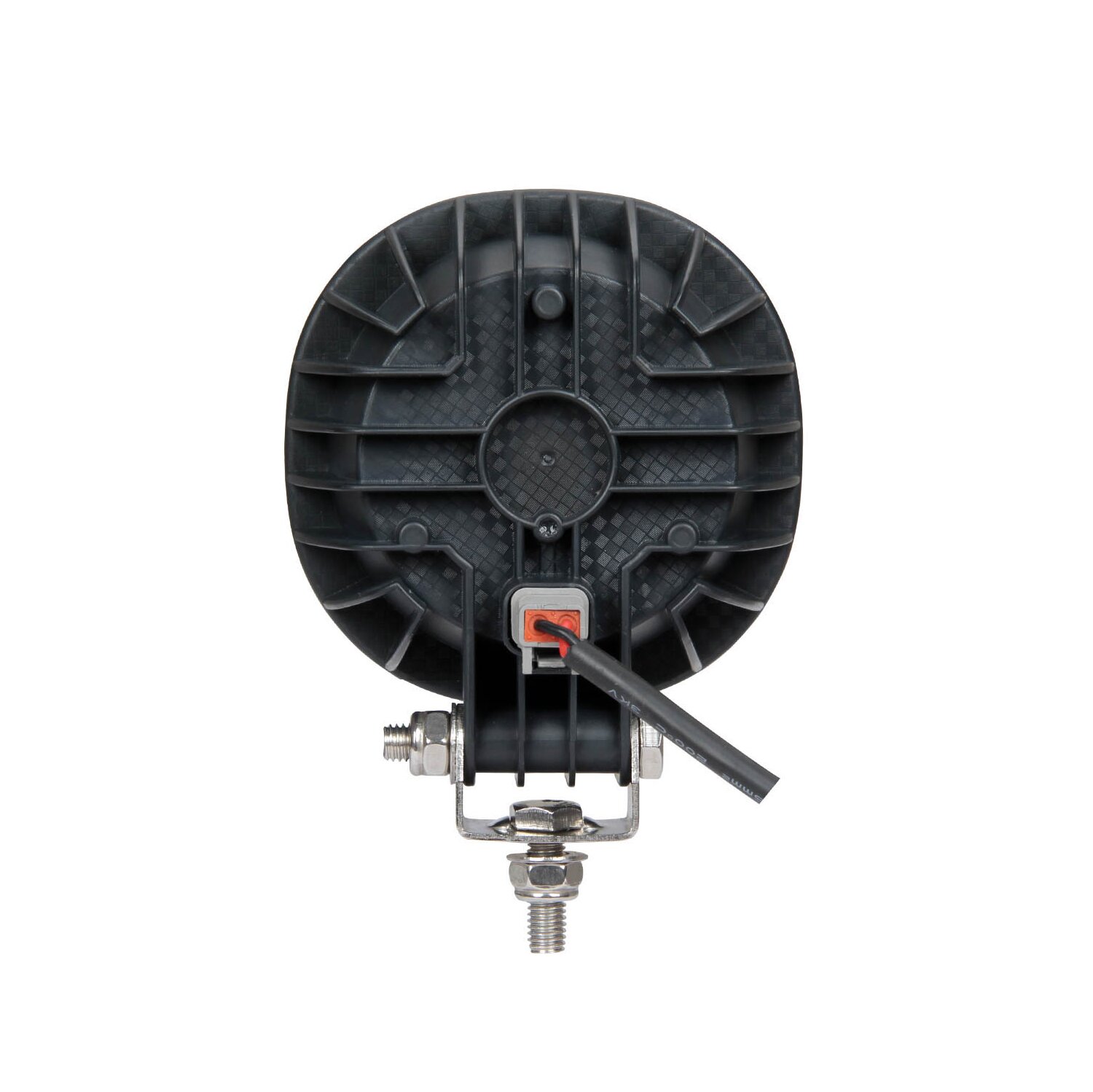

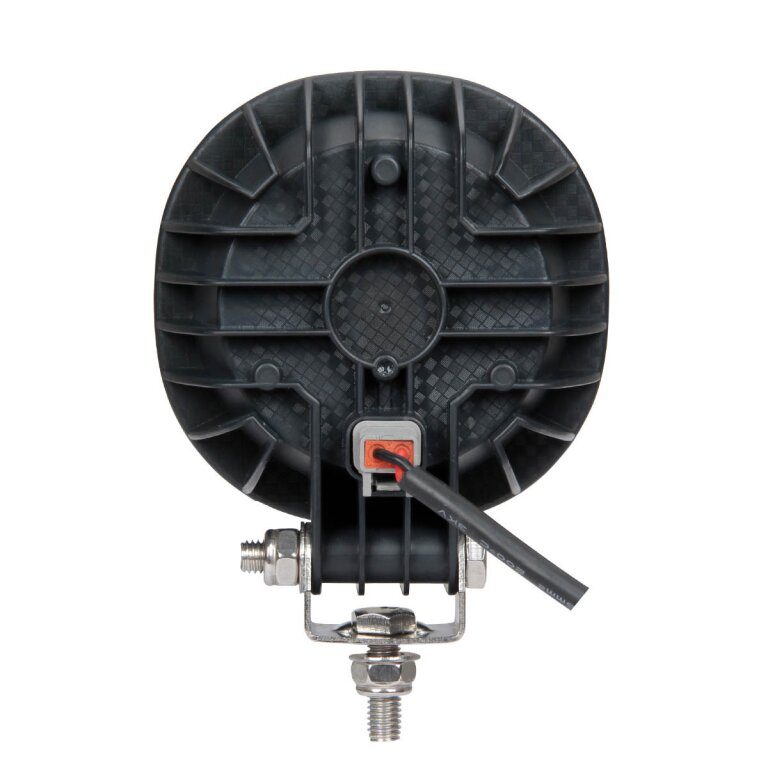

| Connection |
|
German plug |
|
| Weight |
|
n.a. |
|

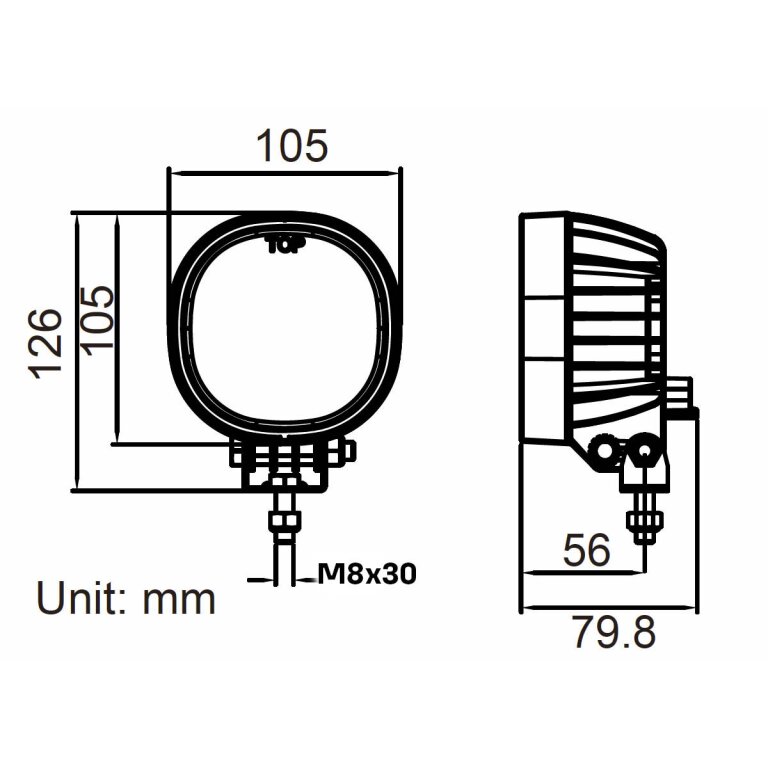

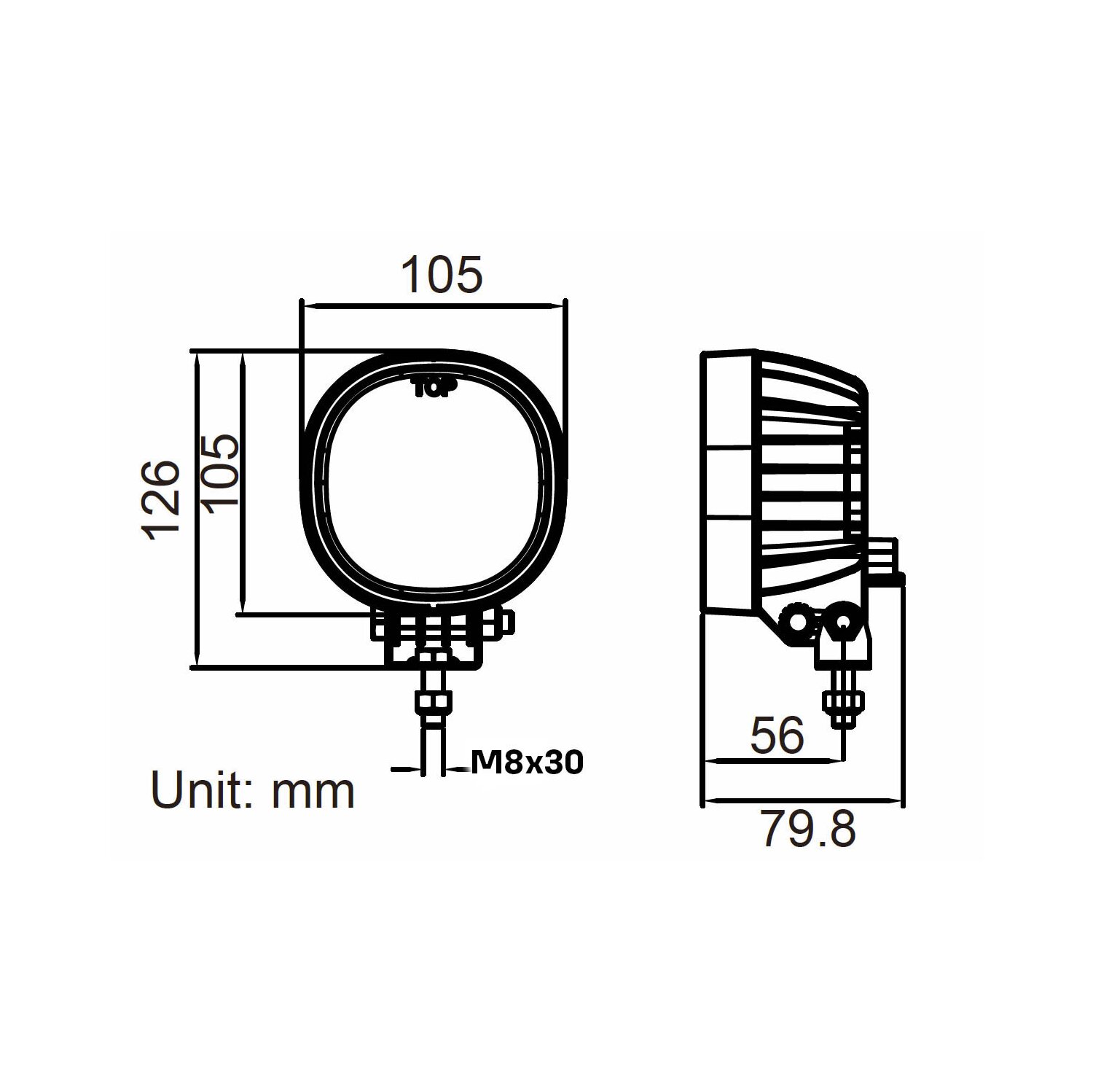

| Dimensions |
|
126 x 105 x 80 mm |
|
| Homologation: |
|
ECE 10R cispr class 5 |
|
