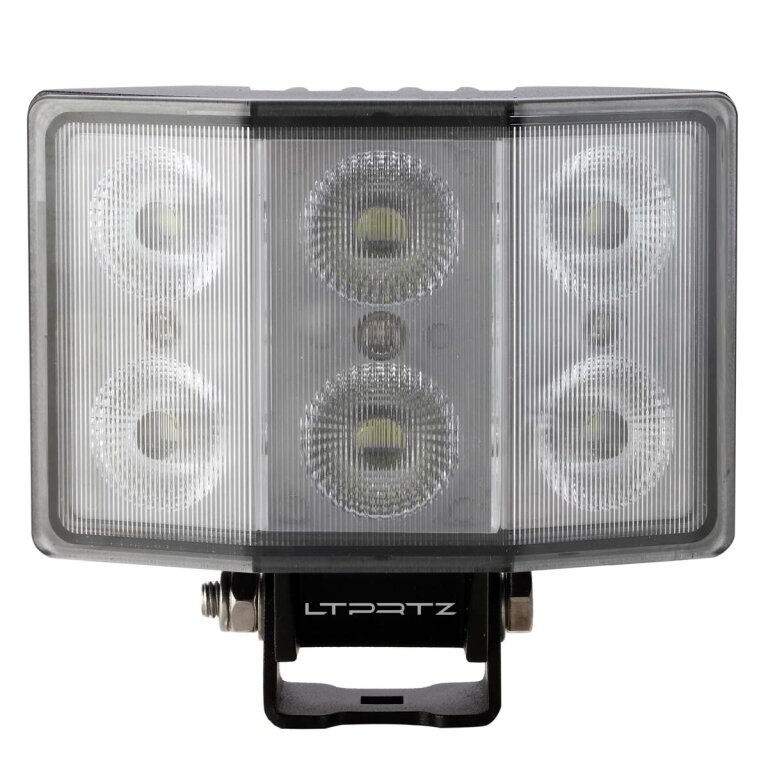

120° FLOOD WORK LIGHT · 60W · ECE 10R
Built for maximum wide-area illumination in the working zone.
The LTPRTZ 60W flood work light with 120° beam angle was developed for applications where large close-range and side areas need especially wide and even illumination. With 5,600 raw lumens, 4,760 effective lumens, a 120° × 35° beam pattern and 7,650 cd, it delivers exactly the flood output needed in professional daily use.
Very wide beam pattern, rugged construction and professional electromagnetic compatibility for demanding applications.
120°
beam
Horizontal beam spread
Extremely wide-area illumination for close-range and side coverage on machinery, vehicles and work zones.
When width matters more than pure distance.
With its 120° × 35° flood pattern, this 60W work light is ideal wherever close-range and side-area illumination need to be especially wide and even. Typical use cases include work vehicles, construction machinery, agricultural equipment and fixed working zones.
Built against water, impact and electrical interference.
The light is protected against reverse polarity, RFI/EMC interference and voltage and current surges. Added to that are IP68/IP69K, an anodized polyester powder coating, impact-resistant polycarbonate and an operating temperature range of -40° to +60°.
Key highlights at a glance
This 60W work light with 120° beam angle is designed for maximum width, rugged industrial properties and professional day-to-day usability.
5600lm
Raw lumens
High output for wide-area work illumination.
4760lm
Effective lumens
Usable brightness in professional real-world applications.
120°×35°
Beam spread
Extremely wide flood coverage for close-range and side zones.
7650cd
Luminous intensity
Strong flood-light performance with 88 m range at 1 lux.
9–36V
Voltage range
Suitable for both 12V and 24V systems.
ECE10R
Homologation
EMC-certified with CISPR Class 5.
Engineering & substance
Built for work vehicles, machinery and demanding close-range illumination.
The 3-in-1 optical system, rugged ADC12 die-cast aluminum housing, impact-resistant polycarbonate lens and Deutsch connector make this light a professional solution for applications where wide beam distribution and technical reliability are equally important.
IP68 / IP69K
ECE 10R
CISPR Class 5
Deutsch connector
| Light output (raw / eff.) |
5,600 lm / 4,760 lm |
| Beam spread |
Flood beam W: 120° × H: 35° |
| Luminous intensity |
7,650 cd |
| Range |
88 m (1 lux) |
| Input voltage |
9–36V |
| Power draw |
6 × 10W LMP chips · 4.2A (12V) / 2.1A (24V) |
| Light color |
5700K white |
| Protection rating |
IP68 / IP69K |
| Lens |
Impact-resistant polycarbonate |
| Housing |
ADC12 die-cast aluminum |
| Mounting |
Upright | suspended |
| Connection |
Deutsch connector |
| Weight |
0.5 kg |
| Dimensions |
137.0 × 67.5 × 124.5 mm |
| Homologation |
ECE 10R | CISPR Class 5 |
Warning: Never look directly into a switched-on headlamp. This can cause permanent damage to your eyes, including blindness.
120° width. 5,600 lumens. Built for maximum working area.
LTPRTZ · 60W Flood Work Light · 120° Beam
