X-Type 5-Inch - High Beam Headlight E-Approval
- ECE R112 High Beam Headlight
- ECE R10 Electromagnetic Compatibility
- ECE R7 Position Light White in X-Shape
✔ Water and dustproof, shock-resistant
✔ Durable and high-quality materials
✔ PHC587 coating to prevent yellowing
✔ Extremely compact size fits many vehicles
✔ Operable in ambient temperatures from -40° to +80°
✔ Certified for electromagnetic compatibility
✔ Reference number: 20 - also suitable for cars with LED and matrix lights!
✔ Range: 470 m (0.1 lx), 296 m (1 lx)
Technical Specifications:
- Operating Voltage: 9-33 V DC
- Power Consumption (12/24 V):
- High Beam: 24.6 W / 22.8 W
- Position White: 2.2 W / 2.4 W
- Housing: Aluminum ADC12, black coated
- Lens and Reflector: Polycarbonate
- Bracket: SPCC
- Reference Number: 20
- Connector: Deutsch 4-pin
- Protection Class: IP69K
- ECE Homologation: R10 | R7 | R112 Class B
- LEDs: High Beam 4x | Position Light White: 16x
- Light Color High Beam: 6000 K Cool White
- Lumens (Raw): 4,000 lm
- Luminous Intensity: 96,000 cd
- Dimensions: Ø 121 x 90 mm
- Weight: 0.7 kg
Wiring Harness for Two Auxiliary Headlights with 4-Pin DT Connector
- Includes two toggle switches or optionally for connection to the CAN Bus high beam control
- Toggle Switch 1 to switch the high beam (to illuminate the switch, a separate ground wire from the dashboard must be connected.)
- Connectors included for switch connection
- Crimp connectors included for extending wires
- 40A high-performance relay and fuse holder with 30A blade fuse
- Cable Length: 3 m
- 2x Deutsch 4-pin connectors
- Battery - and + ring terminals for M8
- Maximum Output: 10A
Black Logo Cover X-TYPE 5-Inch
- Protects the headlight from damage such as stone impact
- Clips onto the headlight
- Colour: clear/black
- With LTPRTZ logo print

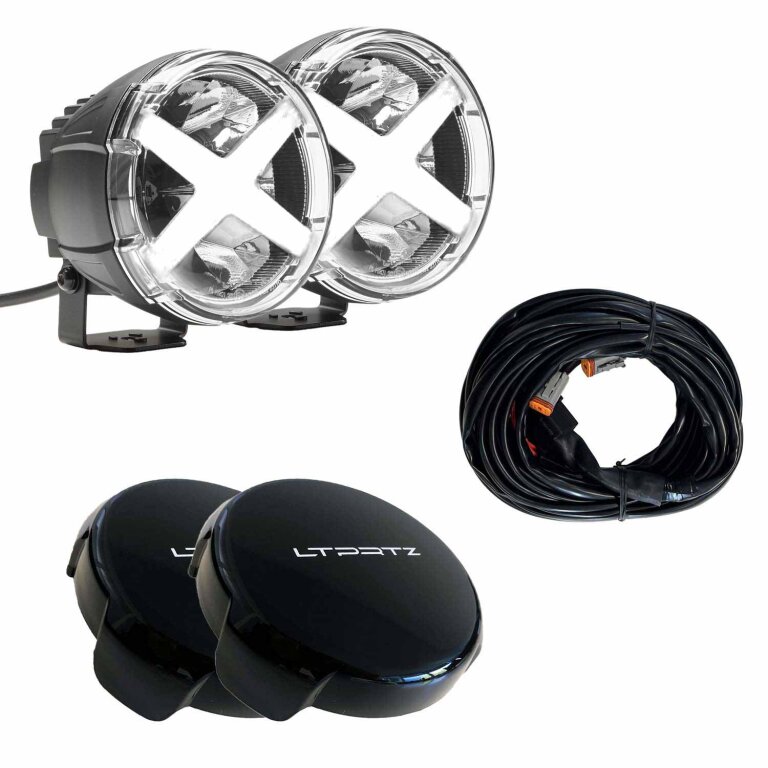

Scope of Delivery:
- 2x X-Type 5-Inch - High Beam Headlight E-Approval
- 1x Wiring Harness with 4-Pin Connector
- 2x Protective Caps
