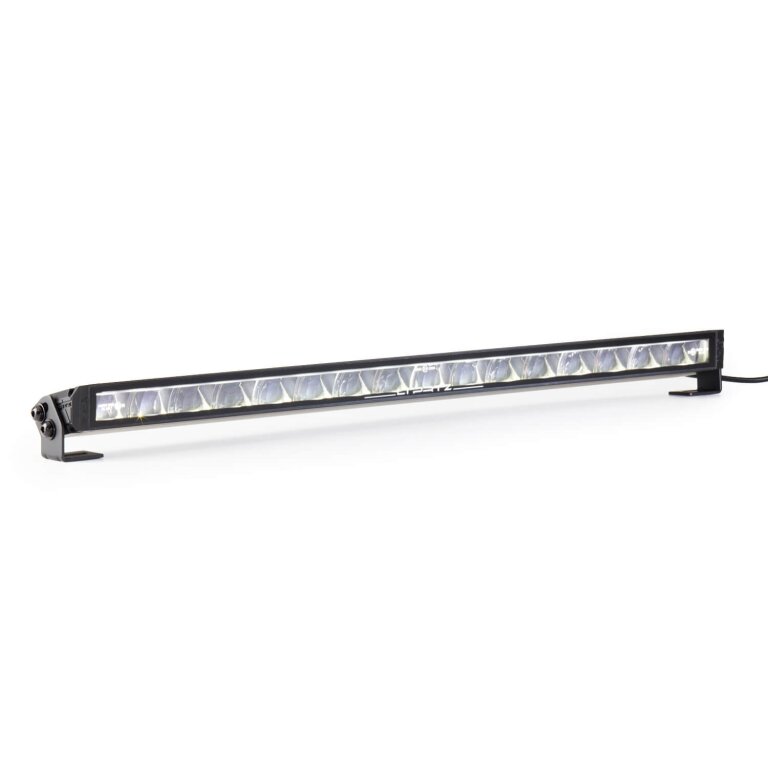

Flat-X 30 inch · 2-in-1 driving light bar · Dual Power · ECE R112 / R10
The standalone light bar with dual driving light approval.
The LTPRTZ Flat-X 30 inch 2-in-1 driving light bar Dual Power is built for vehicles
where one single light bar needs to be legal, slim and powerful at the same time. With its 2-in-1 ECE approval,
it combines two approved driving lights in one housing – with reference number 50, boost mode and the distinctive
low-profile Flat-X design.
Single-unit installation instead of paired lights: two ECE driving lights in one slim 30 inch light bar.
2×25
reference number
Two ECE R112 driving lights in one standalone light bar – ideal for clean front and roof integrations.
Legal as a single light bar.
Conventional driving light bars often require paired solutions or are limited in public road use.
The Flat-X 30 inch takes a different approach: thanks to its 2-in-1 approval, it can be installed as a single
light bar and used legally as a driving light.
This makes it especially interesting for vehicles where a clean, symmetrical and modern lighting integration
is required – without mounting two separate auxiliary lights at the front.
Ultra-slim profile with an aggressive look.
With a housing height of only 3.85 cm, the Flat-X looks especially clean and technical.
The screwless front and angled lens create a premium, streamlined appearance.
The slim format is ideal for front bumpers, grille-near installations, roof racks, offroad builds,
pick-ups, vans and travel vehicles.
Key advantages at a glance
The Flat-X 30 inch combines dual ECE approval, strong light output, a slim housing and rugged offroad technology in one compact premium light bar.
2x ECE R112
Two approved driving lights in one light bar with reference number 50.
Boost mode
Full LED power for offroad, private land and demanding operating environments.
3.85 cm slim
Ultra-thin 1.5 inch profile for seamless and modern vehicle integration.
IP69K protected
Strong protection against water, dust, dirt and harsh weather conditions.
For vehicles that need clean lighting and strong design
The Flat-X 30 inch is ideal for setups where auxiliary lighting should not look like an afterthought.
The slim housing and screwless front support a high-quality integration, while the strong light output provides
clear visibility at night, on rural roads, offroad tracks and demanding applications.
Offroad & 4x4
For bumpers, bull bars, grille setups, roof racks and expedition equipment.
Pick-ups & vans
For travel vehicles, service vehicles, vans and high-quality builds with slim lighting integration.
Road & boost
ECE-compliant driving light function for road use and extra power for offroad or private land.
Rugged materials.
The extruded aluminium housing, shatter-resistant polycarbonate lens, UV-resistant coating
and stainless steel bracket make the Flat-X 30 inch resistant to harsh operating conditions.
Clean 4-pin connection.
The 4-pin Deutsch connector allows clear electrical integration of the lighting functions.
Depending on the vehicle setup, connection, fuse protection, switching and permitted use should be checked before installation.
Usage note: Public road use depends on ECE function, mounting position, reference number
and national regulations. Boost mode may only be used according to applicable legal requirements and operating conditions.
Technical specifications
The key specifications of the LTPRTZ Flat-X 30 inch 2-in-1 driving light bar Dual Power.
Item numberLP-FX30-E2-1
Product type30 inch 2-in-1 LED driving light bar
Homologation2x ECE R112 / ECE R10
Reference number50 / 2x Ref. 25
Voltage range9–33V
Driving light output12V: 2x 46W / 24V: 2x 48W
Background light12V: 0.4W / 24V: 1.1W
Raw lumen output14,000 lm
Light intensity214,000 cd
Colour temperature5,000 K cool white
LEDs16 + 8 high-power LEDs
HousingExtruded aluminium
LensShatter-resistant polycarbonate
BracketStainless steel
Protection ratingIP69K
Connection4-pin Deutsch connector
Temperature range-30°C to +80°C
Dimensions764 × 38.5 × 67.2 mm
Item weight2.80 kg
GTIN4260357369618
Flat-X 30 inch – slim, legal, powerful.
The LTPRTZ Flat-X 30 inch 2-in-1 driving light bar is the right choice for anyone looking for
a single ECE-approved light bar with powerful driving light, boost mode, slim design and a premium offroad appearance.
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
| Item information |
Value |
| Shipping weight: |
3,20 kg
|
| Item weight: |
2,80 kg
|
| Dimensions
( Width × Height ):
|
67,20 × 3,85 cm |
