THE X-TYPE
SPECIAL
The use of the best and most robust materials, extreme manufacturing precision, as well as the latest reflector technology with the highest water resistance are characteristic of all X products.

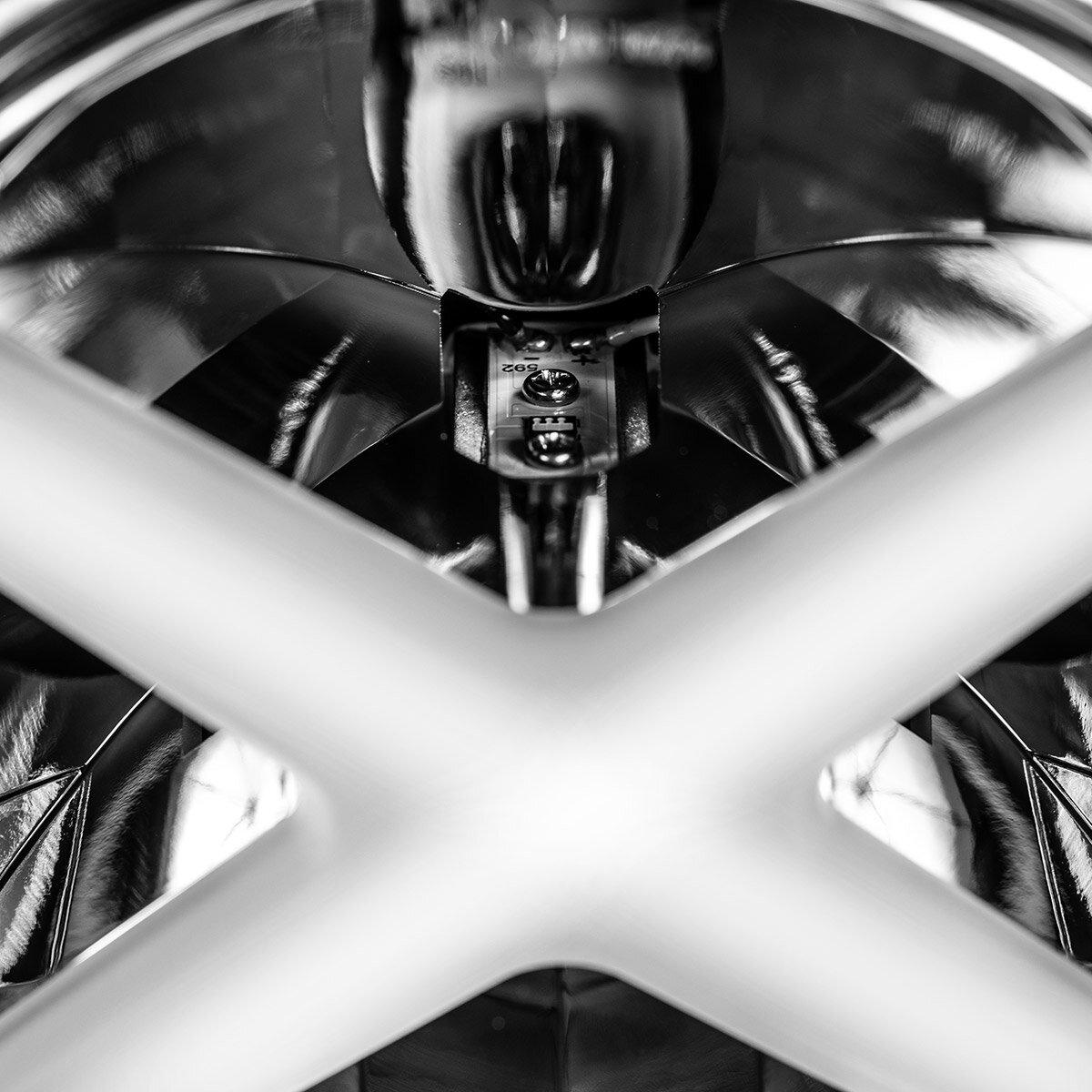

The light distribution is controlled by curved symmetrical chrome reflectors, allowing both standing and hanging mounting of the headlight. The light's spread angle is directed straight ahead. The light goes where it needs to: across the full width of the roadway. Additional energy consumption and glare for oncoming traffic are thus avoided.
IMPRESSIVE
The high light transmission of the lightweight yet shatterproof polycarbonate lens, which is coated with an additional UV-resistant layer, is impressive. The enhanced light sharpness and detail clarity allow the driver to immediately recognize objects, thereby increasing safety on the road. Additionally, early eye fatigue is prevented, and driving - even over long distances - becomes more relaxed.
ROBUST
All materials have been tested for the toughest use under the most extreme conditions, and the consistent performance of the headlights is guaranteed at ambient temperatures ranging from -40°C to +80°C.
The internal thermal management automatically regulates the light output, ensuring the durability of the chips for years.
The certification also naturally extends to electromagnetic compatibility, ensuring that there are no interferences with other devices in your vehicle.
With a diameter of 170 mm, the X-TYPE 7 inch is designed to be easily integrated into spatially limited areas of the vehicle.
The included bracket allows for flexible positioning to ensure optimal light alignment in the desired direction.
EXCEPTIONAL
The use of the finest and most durable materials, extreme manufacturing precision, and the latest reflector technology with maximum water resistance are the hallmarks of all X products.
The light distribution is controlled by curved symmetrical chrome reflectors, allowing for both upright and hanging mounting of the headlight. The light beam is directed straight forward. The light goes exactly where it's needed: across the full width of the road. This avoids additional energy consumption and prevents dazzling oncoming traffic.
IMPRESSIVE
The high light transmission of the lightweight yet shatterproof polycarbonate lens, which is coated with an additional UV-resistant layer, is impressive. Enhanced light sharpness and detail accuracy allow the driver to immediately recognize objects, thereby increasing safety on the road. Additionally, early eye fatigue is prevented, and driving – even over long distances – becomes more relaxed.
ROBUST
All materials have been tested for the harshest use under extreme conditions, and the consistent performance of the headlights is guaranteed at ambient temperatures between -40°C and +80°C.
The internal thermal management system automatically regulates the light output, ensuring the durability of the chips for years.
The certification naturally also extends to electromagnetic compatibility, ensuring no interference with other devices in your vehicle.
With a diameter of 170 mm, the X-TYPE 7-inch is designed to integrate easily into spatially limited niches within the vehicle.
The included mount allows flexible positioning for optimal alignment of the light in the desired direction.
During the development of the X-TYPE, three challenges were at the forefront that needed to be solved:
Extraordinary design. Maximum performance. Road approval.
With the 7-inch headlight, LTPRTZ was able to revolutionize the appearance of thousands of vehicles across Europe.
The distinctive X in the position light, combined with outstanding high beam performance, makes the auxiliary headlight a market highlight.
X-PERIENCE
Discover the X-TYPE, our LED auxiliary headlight with road approval! Thanks to its extraordinary light output, the X-TYPE is the first choice for applications where maximum illumination of the road is required at night.
In addition to its aesthetic design, the series is functionally superior, with an aerodynamic shape that minimizes air flow and resistance, even at high speeds.
FEATURES
✔ Waterproof and dustproof, shock-resistant
✔ High-quality materials
✔ Compact size fits many applications
✔ Usable in ambient temperatures from -40°C to +80°C
✔ Certified for electromagnetic compatibility
✔ Reference number: 25
✔ Range: 620 m (0.1 Lux), 310 m (1 Lux)
TECHNICAL DATA
-
Operating voltage: 9-33 V DC
-
Power consumption (12/24 V) :
- Standby light 3.4 W / 3.2 W | High beam 13 W / 12 W
-
Housing: Aluminum ADC12
-
Lens and reflector: Polycarbonate
-
Mounting: SPCC
-
Connection: Deutsch 4-pin
-
ECE Homologation:
R10 | R7 | R112 Class B
-
LEDs: High beam 4x | Position light 24x
-
High beam light color: White
-
Lumen (raw): 4,000 lm
-
Light intensity: 108,000 cd
-
Protection class: IP69K
-
Dimensions:
Ø 170 x 100 x 184 mm
RANGE
The 7-inch X-Type from LTPRTZ stands out not only for its unique design but also for its top-tier performance in terms of illumination, range, and functionality. Over 600m at 1 Lux allows for daylight-like adventures even at night. In addition to the ECE approval as a high beam, the white X-shaped position light is also road traffic law compliant. Please check with your local retailer or TÜV/DEKRA branch for country-specific regulations regarding mounting positions and usage.
CONNECTION
Connection for 2x Additional Headlights
X-TYPE Amber | White
- Relay wiring kit with 4 Pin DT connector
- Includes two toggle switches or
optional for connection to the Can Bus high beam control
- Connectors for switch connection included
- 40 A high-performance relay and fuse holder
with 30 A plug fuse
- Cable length: 3 m
- 2 pieces of Deutsch 4-pin connectors
- Battery + and - ring terminals for M8
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
1,50 kg
|
| Item weight: |
1,30 kg
|
| Dimensions
( Length × Width × Height ):
|
17,00 × 10,00 × 19,20 cm |
