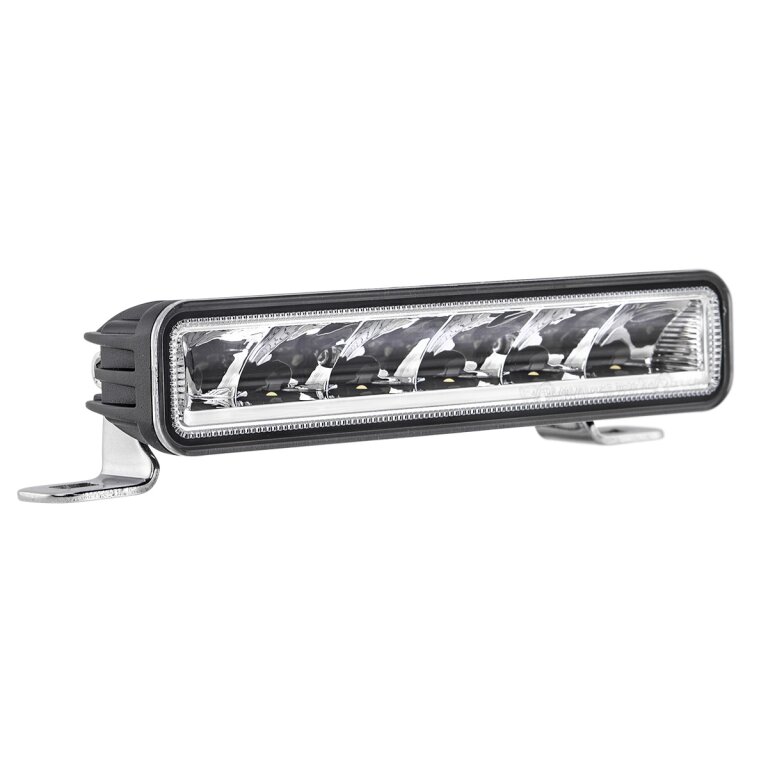

LED Spotlight DL202-30S ECE
The Daylight series is our new development in driving lamps with road approval. Equipped with a spotbeam, which can be used at 377m still 0,25 Lux you can still drive with foresight even at high speeds. High-quality OSRAM LED chips ensure a long service life and a consistent color temperature even after thousands of hours of operation. Protected against:
- Reverse polarity
- RFI/EMC interference
- Voltage and current surges
Special features
- shockproof
- waterproof
- UV shielded
- anodized polyester powder coating
- efficient polycarbonate lens reflector
- Ambient temperature: -30° - +65°
- Certification as high beam and electromagnetic compatibility
- Range: 377m (0.25Lx)
- Hole spacing: 113mm
- Reference number: 12.5
| Technical Data |
|
| Input voltage |
|
9-36V |
|
| Light source |
|
6x OSRAM LED chips |
|
| Power consumption |
|
14W |
|
| Light output (raw) |
|
920lm |
|
| Light diffusion |
|
ece main beam pattern |
|
| Light intensity |
|
35.600cd |
|
| Protection class |
|
IP68 |
|
| Lens |
|
shatterproof polycarbonate |
|
| Housing |
|
Die-cast aluminum ADC12 |
|
| Mounting |
|
vertical|hanging |
|
| Connection |
|
German plug |
|
| Weight |
|
n.a. |
|
| Dimensions |
|
182.0 x 63.5 x 38.0 mm |
|
| Homologation: |
|
ece 112R|10R |
|
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
0,80 kg
|
| Item weight: |
0,62 kg
|
| Dimensions
( Length × Width × Height ):
|
18,20 × 6,35 × 3,80 cm |
