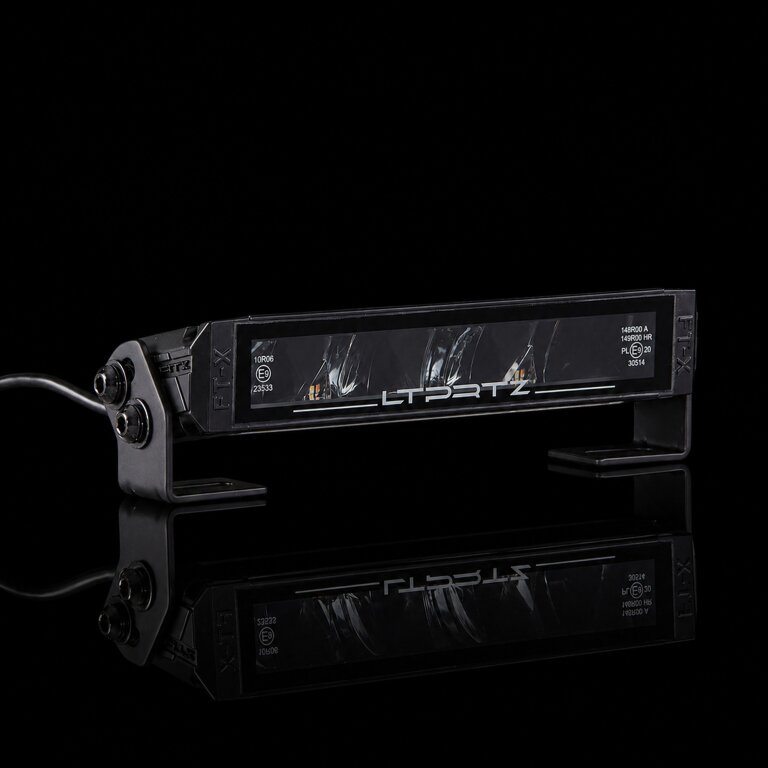

Flat-X 9 Inch - High Beam Lightbar with E-Approval

Flat-X 9 Inch - High Beam Lightbar with E-Approval

SKU: LP-FX9-E-2
GTIN: 4260482522605
Category: MAN Driving Lights

Compact. Distinctive. Road-legal.

The LTPRTZ FLAT-X 9 inch driving light lightbar with E approval combines a flat, modern housing with a strong front-end presence and clean vehicle integration. If you are looking to combine a compact lightbar look with a road-legal driving light solution, this is a strong option for road use, touring builds and demanding vehicle upgrades.

9 inch lightbar format Compact design with a modern and technically clean front-end look.

Road-legal solution Ideal for drivers who want to combine performance with legality.

Distinctive front-end styling Perfect for builds focused on presence and clean visual lines.

Compact driving light upgrade A smart auxiliary lighting option where installation space is limited.

Versatile application Suitable for road use, touring, utility vehicles and off-road-inspired builds.

LTPRTZ look & feel For users who want styling, technology and retrofit quality in one product family.

Ideal for anyone looking for a flat 9-inch lightbar with road-legal driving light function and a strong front-end appearance.

219,00 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

piece

Description
PDF (2)

THE FLAT-X

ECE-APPROVED

During the development of the FLAT-X, 3 challenges were at the forefront that needed to be solved:

Flattest design. Maximum performance. Road approval.

We believe the wait was worth it. With the FLAT-X series, which we currently offer in four sizes, a state-of-the-art product has been established that is second to none.

LTPRTZ has revolutionized the appearance of thousands of vehicles across Europe.

X-PERIENCE

Discover FLAT-X, the flattest Lightbar series – available in 4 sizes: 9 Inch | 16 Inch | 23 Inch | 44 Inch.

Approved for road use, combined with extraordinary light output, the FLAT-X is the first choice for applications where a subtle and high-quality appearance with unmatched range is required. In addition to the aesthetic design, the series is functionally superior crafted, with an aerodynamic shape that minimizes airflow and resistance even at high speeds. The angled lens allows precipitation to drain off more quickly.

Experience this unique product today and shop directly from the manufacturer online. Available now, with fast shipping.

FEATURES

✔ Water and dustproof, shock-resistant

✔ Highest quality materials

✔ Compact size fits many applications

✔ Usable in ambient temperatures from -40°C to +80°C

✔ Certification for electromagnetic compatibility

✔ Reference number: 20

✔ Range: 300 m (1 Lux)

TECHNICAL DATA

Operating voltage: 12/24V DC
Power consumption (12/24V):
High beam 31W/30W
Housing: Extruded black aluminum
Lens and reflector: Polycarbonate
Mounting: Black stainless steel
Connection: Deutsch 4-pin

ECE Homologation:
R10 | R148 | R149
LEDs: 4x High beam | 2x Position light
High beam light color: White
Luminous intensity: 83,600 cd
Lumen (Raw/Effective): 3360/2400 lm
Protection class: IP69K
Dimensions:
224 x 67.2 x 38.5 mm

SERI.OUS

9" | 16" | 23" | 44"

CONNECTION

Connection for 2x Auxiliary Headlights
Flat-X Amber | White

Relay wiring harness with 4-pin DT connector
Includes two toggle switches or
optional connection for Can Bus high beam control
Connectors for switch connection included
40A heavy-duty relay and fuse holder
with 30A plug fuse
Cable length: 3 m
2 pieces of Deutsch 4-pin connectors
Battery + and - ring terminals for M8
